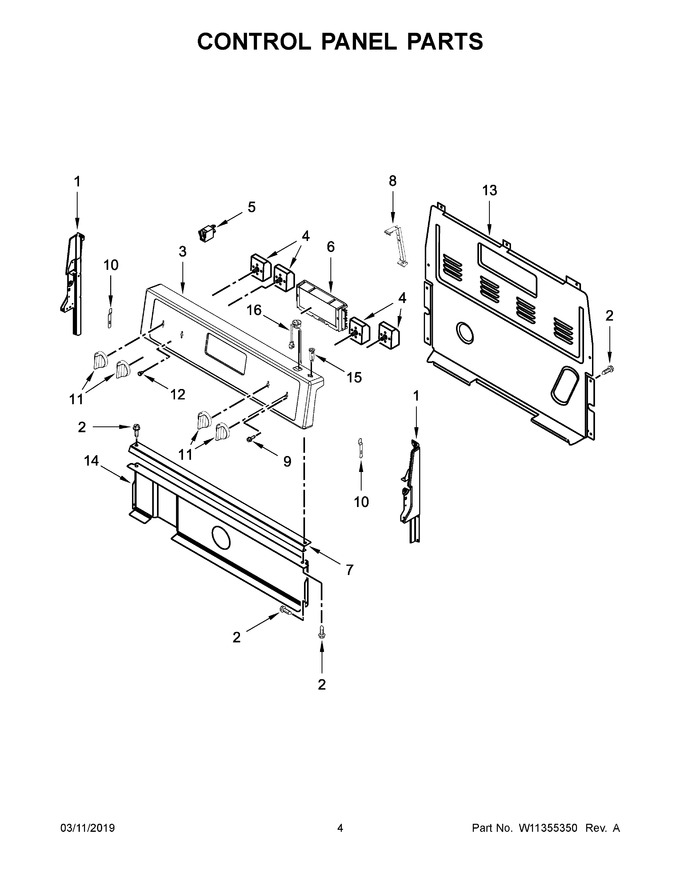

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219664 | Endcap (black (left)) (Replaces: W11130372) |
|
Immediately | $ 138.45 | ||||
| 2 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 3 | W11231944 | Panel, Console (black) (Replaces: W11135518) |
|
$ 428.67 | |||||
| 4 | 5500-287 | Switch, Infinite (green) (left Front, Right Rear) (Replaces: 3148953) |
|
Immediately | $ 49.03 | ||||
| 5 | WP8523265 | Light, Indicator (125v) (Replaces: 8523265) |
|
Immediately | $ 91.76 | ||||
| 6 | W11122555 | Control, Electric (black) (Replaces: W10887901) |
|
$ 452.69 | |||||
| 7 | W10525121 | Bracket, Console Mounting |
|
$ 88.97 | |||||
| 8 | W11230932 | Bracket, Control (Replaces: W10695491) |
|
Immediately | $ 76.33 | ||||
| 9 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.80 | ||||
| 10 | 3196200 | Clip, Spring |
|
$ 9.41 | |||||
| 11 | W10836470 | Knob (black) (Replaces: W10676213) |
|
Immediately | $ 34.28 | ||||
| 12 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 13 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 197.14 | |||||
| 14 | W10134247 | Shield, Heat |
|
Immediately | $ 322.94 | ||||
| 15 | WP9757602 | Circuit Breaker (black) (Replaces: 9757602) |
|
Immediately | $ 54.82 | ||||
| 16 | W10861164 | Receptacle (black) (Replaces: W10749729) |
|
Immediately | $ 16.62 | ||||
| 11A | W10853029 | Knob (white) (Replaces: W10676214) |
|
Immediately | $ 34.44 | ||||
| 15A | WP9757601 | Circuit Breaker (white) (Replaces: 9757601) |
|
Immediately | $ 59.00 | ||||
| 16A | W10849725 | Receptacle (white) (Replaces: W10749727) |
|
Immediately | $ 100.00 | ||||
| 1A | W11219665 | Endcap (black (right)) (Replaces: W11130379) |
|
Immediately | $ 40.65 | ||||
| 1B | W11219365 | Endcap (white (left)) (Replaces: W11130371) |
|
$ 38.21 | |||||
| 1C | W11219370 | Endcap (white (right)) (Replaces: W11130378) |
|
$ 54.75 | |||||
| 3A | W11231630 | Panel, Console (white) (Replaces: W11135519) |
|
$ 429.82 | |||||
| 4A | 5500-287 | Switch, Infinite (right Front And Left Rear) (Replaces: 3148951) |
|
Immediately | $ 49.03 | ||||
| 6A | W11122557 | Control, Electric (white) (Replaces: W10887899) |
|
Immediately | $ 452.69 |
