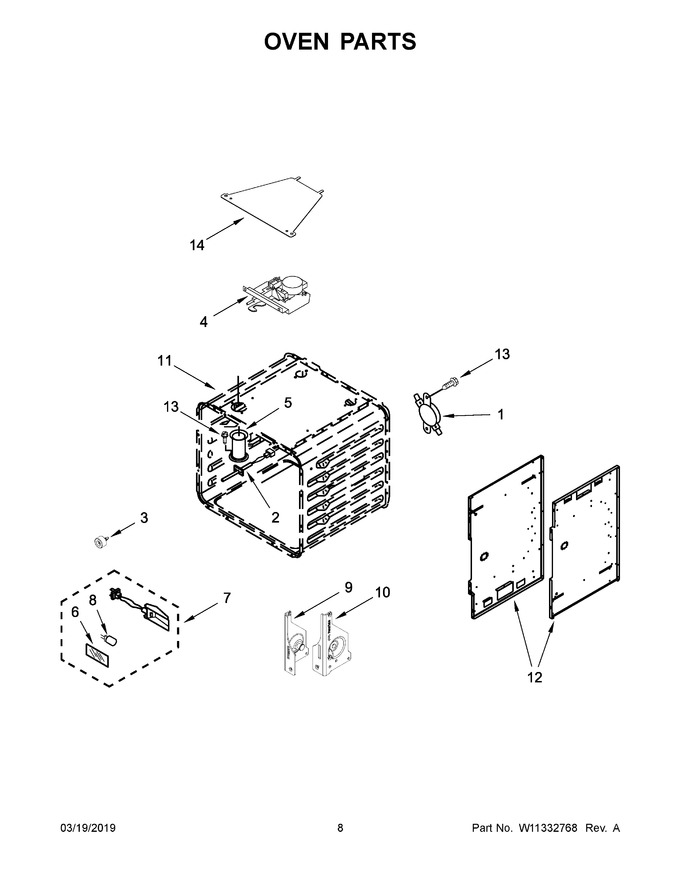

05 - Oven Parts


06 - Venting Parts


07 - Oven Door Parts


08 - Internal Oven Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 121.07
2	W10859573		Probe, Sensor   (Replaces: W10622170)			Immediately	$ 143.11
3	W10105790		Bumper & Screw				$ 6.67
4	W11029221		Latch, Motorized   (Replaces: W10830016)			Immediately	$ 294.89
5	W11318343		Tube, Vent   (Replaces: W11290663)				$ 94.89
6	W10169756		Lens, Light				$ 37.97
7	W11233684		Assembly, Oven Light   (Replaces: W11223932)				$ 100.20
8	WPW10169757		Bulb, Light   (Replaces: W10169757)			Immediately	$ 46.52
9	W11096294		Receiver, Hinge (left)		Appelez-nous	-
10	W11096293		Receiver, Hinge (right)		Appelez-nous	-
11	N/P		Liner, Oven (not Serviced)		Appelez-nous	-
12	W11320145		Chassis, Side (left)   (Replaces: W11102297)				$ 228.93
13	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 13.25
14	W10160858		Cover, Latch				$ 69.25
12A	W11320144		Chassis, Side (right)   (Replaces: W11102296)				$ 221.99
NI	W11688806		Insulation, Back   (Replaces: W10282815)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	WP3400968		Nut   (Replaces: 3400968)			Immediately	$ 7.52
NI	W11688743		Insulation, Wrap   (Replaces: W10282811)		Appelez-nous	-
