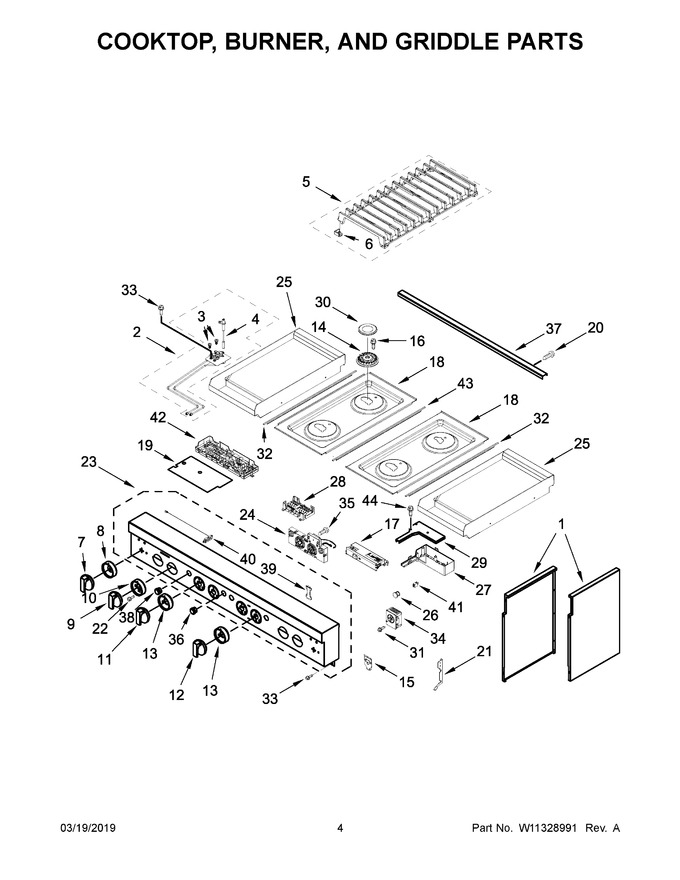

03 - Cooktop, Burner, And Griddle Parts


04 - 48" Chassis Parts


05 - 30" Oven Parts


06 - 18" Oven Parts


07 - Venting Parts


08 - 30" Oven Door Parts


09 - 18" Oven Door Parts


10 - 30" Internal Oven Parts


11 - 18" Internal Oven Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11321067		Panel, Cabinet Side (left)   (Replaces: W11111429)				$ 395.43
2	W11330980		Assembly, Orifice Holder (left Center Front)   (Replaces: W10892811)		Appelez-nous	-
3	W11643164		Orifice, Main (17.4k) (left Center Front And Right Center Front)   (Replaces: W10892422)			Immediately	$ 58.69
4	W11573760		Igniter (left Center Front And Right Center Front)   (Replaces: W11238757)			Immediately	$ 21.13
5	W11516449		Assembly, Grate (black (left Center))   (Replaces: W11172289)				$ 238.55
6	W11550692		Bumper, Grate   (Replaces: W11042504)			Immediately	$ 11.31
7	W11317536		Knob, Griddle (stainless)   (Replaces: W10891923)				$ 133.77
8	W11317890		Bezel, Griddle   (Replaces: W11104967)				$ 98.60
9	W11317537		Knob, Burner (stainless)   (Replaces: W10887596)			Immediately	$ 157.68
10	W11317889		Bezel, Cooktop   (Replaces: W11090284)				$ 96.18
11	W11317886		Knob, Oven Mode (stainless)   (Replaces: W10891869)				$ 294.98
12	W11317539		Knob, Oven Temperature (stainless)   (Replaces: W10891868)				$ 138.80
13	W11317892		Bezel, Oven (for 4 Oven Knobs) (stainless)   (Replaces: W11042375)				$ 99.67
14	W11319683		Spreader, Flame (high) (all But Right Center Rear)   (Replaces: W10891987)			Immediately	$ 225.62
15	W11318207		Spring Clip, Range   (Replaces: W11036559)				$ 11.59
16	W11447718		Screw   (Replaces: W11196257)			Immediately	$ 13.27
17	W11234290		Assembly, Wifi Module   (Replaces: W11110768)				$ 161.90
18	W11316700		Panel, Cooktop (black (left Center))   (Replaces: W11038237)				$ 451.81
19	W11320149		Barrier, Appliance Manager   (Replaces: W11281269)				$ 117.51
20	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 13.25
21	W10130760		Bracket, Moving Console (left)				$ 68.35
22	W11674763		Screw   (Replaces: W10919387)				$ 13.28
23	W11444458		Panel, Console   (Replaces: W11253769)		Appelez-nous	-
24	W11319204		Interface, User   (Replaces: W11292568)			Immediately	$ 516.55
25	W11602621		Assembly, Griddle Module (assembly Breakdown Shown On Burner Box Page)   (Replaces: W10891745)			Immediately	$ 1,392.32
26	W10294500		Lens, Indicator Light				$ 6.92
27	W11320411		Cover, Wifi Outer   (Replaces: W11205795)		Appelez-nous	-
28	W11317945		Manager, Appliance (expansion)   (Replaces: W10890116)				$ 408.29
29	W11320410		Cover, Wifi Inner   (Replaces: W11205794)		Appelez-nous	-
30	W11328971		Cap, Burner (black (includes 4))   (Replaces: W11121391)				$ 156.06
31	W10674068		Screw				$ 21.95
32	W10291193		Trim, L-strip		Appelez-nous	-
33	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
34	W11318834		Control, Griddle   (Replaces: W11033497)			Immediately	$ 320.87
35	WP3400814		Screw   (Replaces: 3400814)				$ 4.16
36	W11319196		Button Assembly, Oven Start   (Replaces: W11090650)				$ 21.30
37	W11320157		Trim, Island   (Replaces: W11156418)		Appelez-nous	-
38	W11318857		Button Assembly, Oven Light   (Replaces: W11090651)				$ 21.43
39	W11318856		Assembly, Light Pipe   (Replaces: W10896369)				$ 98.42
40	W11318855		Antenna, Wifi   (Replaces: W11130078)				$ 206.03
41	W10116114		Light, Indicator Housing			Immediately	$ 84.21
42	W11333174		Manager, Appliance (powermax)   (Replaces: W11100273)				$ 426.15
43	W10271524		Trim, T-strip (black)				$ 191.11
44	W10709795		Screw   (Replaces: 7101P624-60)				$ 12.41
14A	W11319673		Spreader, Flame (low) (right Center Rear)   (Replaces: W10892022)			Immediately	$ 206.51
18A	W11316701		Panel, Cooktop (black (right Center))   (Replaces: W11038241)				$ 451.81
1A	W11320596		Panel, Cabinet Side (right)   (Replaces: W11111428)				$ 405.28
21A	W10130759		Bracket, Moving Console (right)				$ 68.35
2A	W11330984		Assembly, Orifice Holder (left Center Rear)   (Replaces: W10892503)		Appelez-nous	-
2B	W11319743		Assembly, Orifice Holder (right Center Front)   (Replaces: W10892505)				$ 112.62
2C	W11328970		Assembly, Orifice Holder (right Center Rear)   (Replaces: W10892721)		Appelez-nous	-
3A	W10892418		Orifice, Main (15.4k) (left Center Rear)			Immediately	$ 92.73
3B	W10892440		Orifice, Main (7.2k) (right Center Rear)				$ 89.87
3C	W11661909		Orifice, Simmer (2.6k) (all But Right Center Rear)   (Replaces: W10892435)			Immediately	$ 67.52
3D	W10892429		Orifice, Simmer (2.0k) (right Center Rear)				$ 89.87
4A	W11238760		Igniter (left Center Rear)		Appelez-nous	-
4B	W11238756		Igniter (right Center Rear)			Immediately	$ 61.16
5A	W11516462		Assembly, Grate (black (right Center))   (Replaces: W11172625)				$ 238.56
