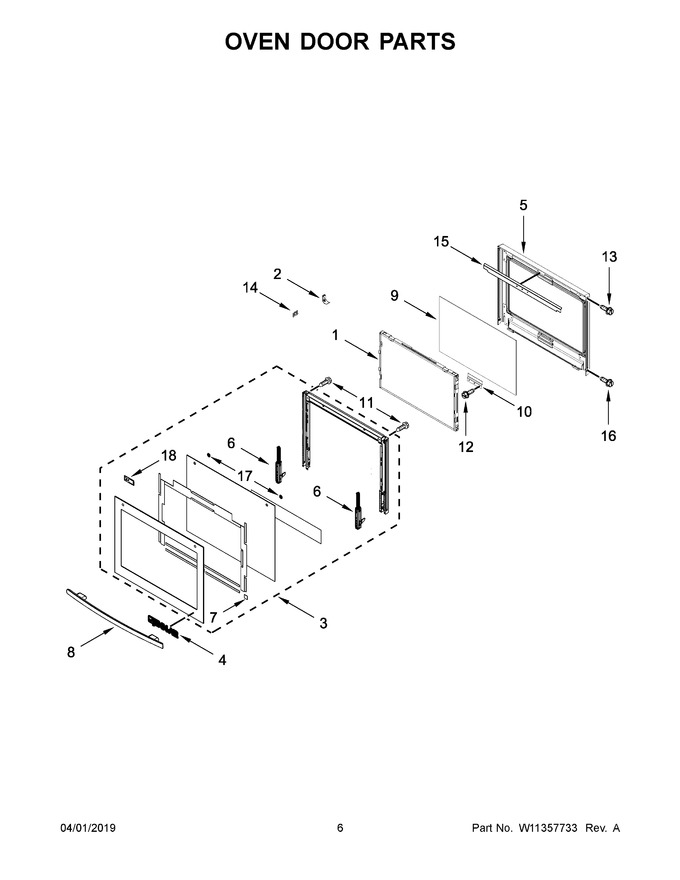

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10347596		Assembly, Window Pack   (Replaces: W10347596)			Immediately	$ 290.75
2	W10812024		Spring, Door Glass Fixation   (Replaces: W10284285)				$ 149.18
3	W11110938		Assembly, Door (stainless)			Immediately	$ 458.87
4	WPW10214168		Badge (stainless)   (Replaces: W10214168)				$ 77.36
5	WPW10709147		Assembly, Liner   (Replaces: W10709147)				$ 330.02
6	N/P		Hinge, Door (not Serviceable)		Appelez-nous	-
7	WPW10517428		Spacer, Vent   (Replaces: W10517428)			Immediately	$ 11.20
8	W11195001		Assembly, Handle (stainless)   (Replaces: W10551013)				$ 206.51
9	W10827059		Glass, Inner   (Replaces: W10678524)				$ 179.82
10	W10853628		Bracket, Glass   (Replaces: W10284297)				$ 147.47
11	W10831019		Screw   (Replaces: W10480830)			Immediately	$ 7.44
12	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
13	W11690596		Screw With Washer   (Replaces: W10284411)				$ 20.98
14	W11025615		Clip, Spring Metal   (Replaces: W10653954)			Immediately	$ 158.53
15	W10669415		Shield, Door Liner				$ 62.60
16	W10828565		Screw (black)   (Replaces: 7101P635-60)				$ 7.07
17	W11676355		Washer, Door   (Replaces: W10319024)			Immediately	$ 13.33
18	W10650497		Spacer, Handle		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
