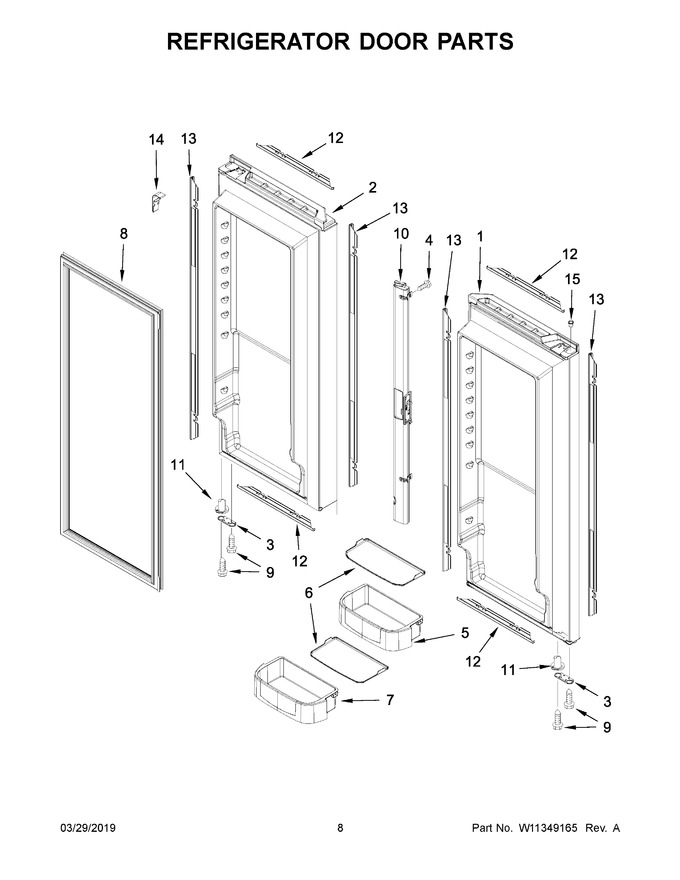

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13094748BQ | Door, Left (black) (Replaces: 13094748B) |
|
$ 1,078.39 | |||||
| 2 | 13094740BQ | Door, Right (black) (Replaces: 13094740B) |
|
$ 1,094.43 | |||||
| 3 | W10153126 | Stop, Door (black) |
|
$ 14.00 | |||||
| 4 | W11311945 | Screw (Replaces: 12990204) |
|
$ 13.25 | |||||
| 5 | WPW10119841 | Bucket, Medium (Replaces: W10119841) |
|
Immediately | $ 81.21 | ||||
| 6 | W11510593 | Gripper, Medium (Replaces: W10450018) |
|
Immediately | $ 15.69 | ||||
| 7 | WPW10119846 | Bucket, Gallon (Replaces: W10119846) |
|
Immediately | $ 79.53 | ||||
| 8 | W10830047 | Gasket, Door (black) |
|
Immediately | $ 195.86 | ||||
| 9 | WP489474 | Screw (Replaces: 12990519) |
|
Immediately | $ 7.70 | ||||
| 10 | W11177241 | Mullion, Door (black) (Replaces: W10153146) |
|
Immediately | $ 168.83 | ||||
| 11 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 81.29 | |||||
| 12 | W10130132 | Trim, Top And Bottom |
|
$ 116.40 | |||||
| 13 | WPW10130136 | Trim, Side (Replaces: W10130136) |
|
$ 159.40 | |||||
| 14 | W10150034 | Clip, Trim |
|
- | |||||
| 15 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 6A | W11510594 | Gripper, Gallon (Replaces: W10450019) |
|
$ 18.01 |
