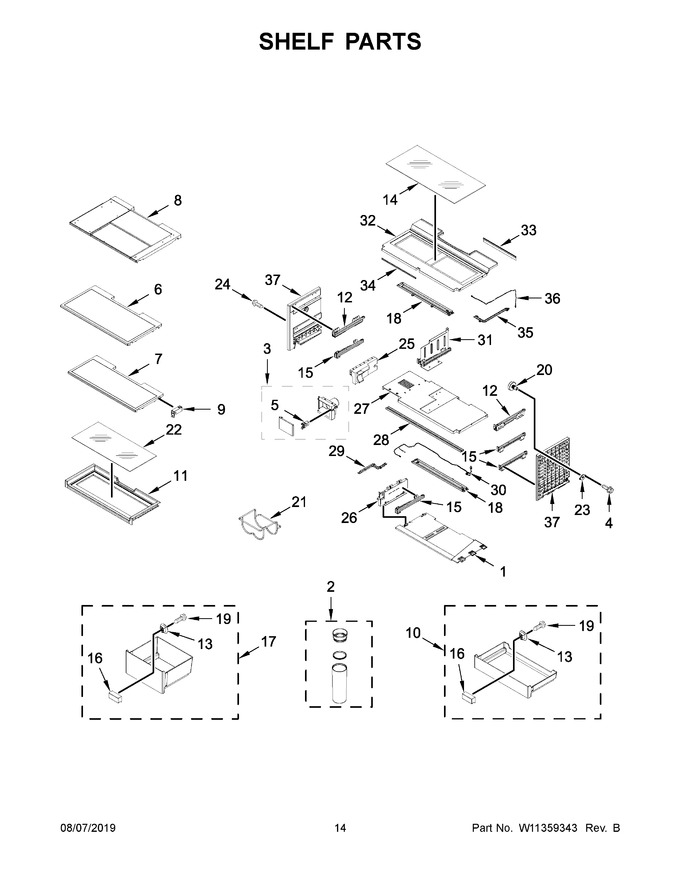

08 - Shelf Parts


09 - Dispenser Front Parts


10 - Icemaker And Ice Container Parts


11 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11086554		Base, Pantry   (Replaces: W10794327)				$ 145.94
2	W10882409		Assembly, Herb Storage (includes Lid And Gasket)   (Replaces: W10795580)				$ 46.88
3	W11483207		Assembly, Filter Door   (Replaces: W11347068)				$ 112.18
4	W10834284		Screw (grey)		Appelez-nous	-
5	WP2223877		Latch, Push   (Replaces: 2223877)				$ 108.76
6	W10906768		Assembly, 15" Full Shelf   (Replaces: W10836819)				$ 296.23
7	W11262315		Assembly, 12" Full Shelf   (Replaces: W11116725)				$ 295.06
8	W10906770		Assembly, Tuck Shelf   (Replaces: W10837200)		Appelez-nous	-
9	W10817923		Assembly, Block (front Left/back Right)				$ 25.20
10	W10794366		Pan, Pantry				$ 171.46
11	W11289961		Assembly, Platter Shelf   (Replaces: W11135594)				$ 301.45
12	W10816004		Glide, Platter (left Hand)			Immediately	$ 138.32
13	W10663641		Spacer, Handle				$ 24.82
14	W10887837		Glass, Crisper Cover   (Replaces: W10804533)			Immediately	$ 218.11
15	W10816002		Glide, Crisper (left Hand)				$ 119.65
16	W10794362		Handle		Appelez-nous	-
17	W10794361		Assembly, Crisper Pan			Immediately	$ 180.42
18	W10921807		Assembly, Light		Appelez-nous	-
19	W10903879		Screw		Appelez-nous	-
20	W10840921		Knob, Side Support		Appelez-nous	-
21	W10837214		Rack, Wine		Appelez-nous	-
22	W10906771		Glass, Platter   (Replaces: W10794577)		Appelez-nous	-
23	W10840918		Flange, Side Support				$ 84.12
24	W10847999		Screw				$ 12.12
25	W11084829		Insulation, Filter Housing   (Replaces: W10792132)		Appelez-nous	-
26	W10794329		Support, Pantry		Appelez-nous	-
27	W11086555		Cover, Pantry   (Replaces: W10794323)				$ 126.65
28	W10814884		Bar, Support			Immediately	$ 135.48
29	W10834719		Cover, Wiring Harness		Appelez-nous	-
30	W11744510		Assembly, Pantry Wire (includes Thermistor)   (Replaces: W10779301)				$ 103.00
31	W10794337		Assembly, Center Support				$ 230.57
32	W11086556		Frame, Crisper Cover   (Replaces: W10794334)				$ 194.65
33	W10794336		Gasket, Crisper Cover (rear)		Appelez-nous	-
34	W10794242		Gasket, Crisper Cover (front)				$ 119.10
35	W10854845		Cover, Wiring Harness		Appelez-nous	-
36	W10835866		Jumper, Crisper Led		Appelez-nous	-
37	W10794317		Support, Side (left Hand)				$ 140.88
12A	W10814864		Glide, Platter (right Hand)				$ 143.31
15A	W10814859		Glide, Crisper (right Hand)				$ 117.98
37A	W10794320		Support, Side (right Hand)		Appelez-nous	-
9A	W10817924		Assembly, Block (front Right/back Left)				$ 25.09
