View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:

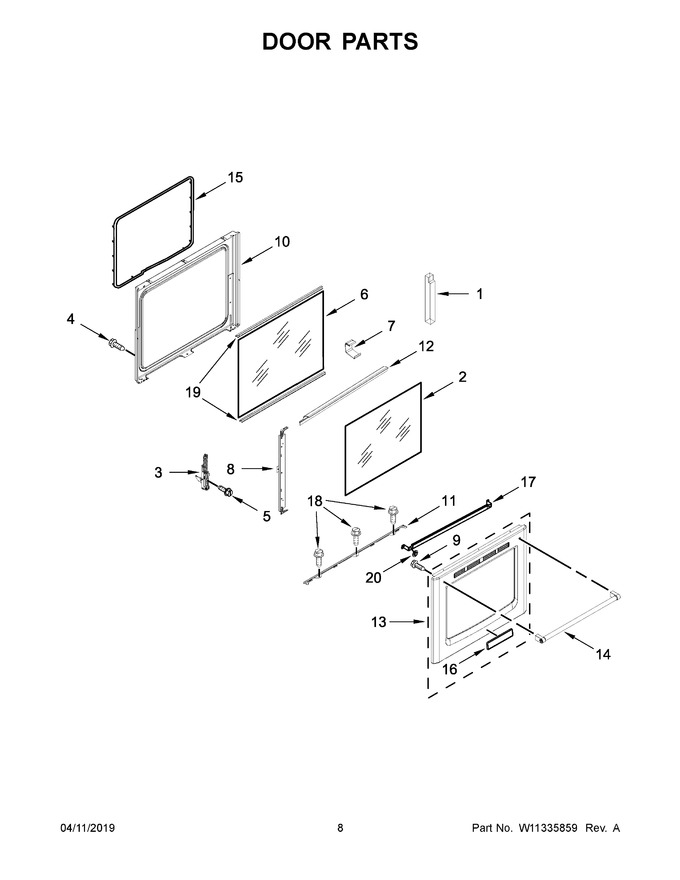

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11025151 | Insulation, Door (Replaces: W10766562) |
|
$ 198.50 | |||||
| 2 | W11705267 | Glass, Outer Door (stainless) (Replaces: W10693388) |
|
$ 210.28 | |||||
| 3 | W11162113 | Hinge, Door (active) (Replaces: W10885519) |
|
Immediately | $ 111.53 | ||||
| 4 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 5 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 13.25 | ||||
| 6 | W11339500 | Glass, Inner (Replaces: W11223202) |
|
$ 154.05 | |||||
| 7 | W10137382 | Clip, Panel |
|
Immediately | $ 43.58 | ||||
| 8 | W11744483 | Rail, Vertical Support (Replaces: W10813139) |
|
Immediately | $ 68.57 | ||||
| 9 | WPW10241367 | Screw (Replaces: W10241367) |
|
$ 6.27 | |||||
| 10 | W10902192 | Liner, Door (Replaces: W10826568) |
|
$ 301.54 | |||||
| 11 | W10813140 | Rail, Horizontal Support |
|
Immediately | $ 159.49 | ||||
| 12 | W11251351 | Liner, Door Scoop (black) (Replaces: W10613791) |
|
Immediately | $ 125.70 | ||||
| 13 | W11334705 | Glass Assembly, Outer Door (black) (Replaces: W11205027) |
|
- | |||||
| 14 | W10912640 | Handle, Door (stainless) (Replaces: W10834521) |
|
$ 204.62 | |||||
| 15 | W11562931 | Gasket, Door (Replaces: W10162385) |
|
Immediately | $ 78.98 | ||||
| 16 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 38.12 | ||||
| 17 | W10541911 | Bracket, Glass Upper Handle |
|
Immediately | $ 35.93 | ||||
| 18 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 13.28 | ||||
| 19 | W11673273 | Spacer, Glass (Replaces: W10813142) |
|
Immediately | $ 27.94 | ||||
| 20 | W11676355 | Washer, Door (Replaces: W10319024) |
|
Immediately | $ 13.33 |
