01 - Cover Sheet

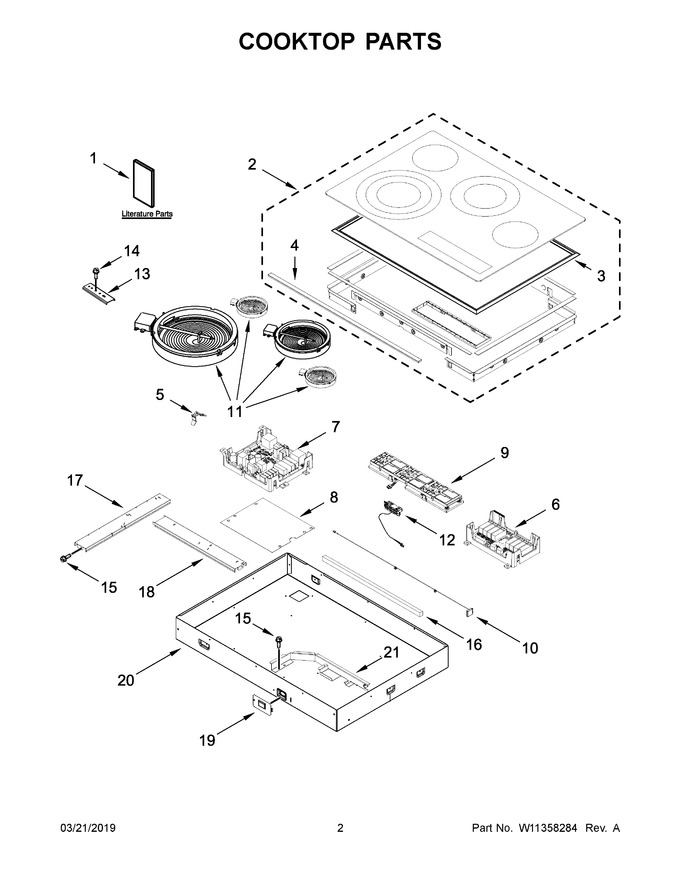

02 - Cooktop Parts
03 - Optional Parts (not Included)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11236401 | Instruction, Installation |
|
- | |||||
| 2 | W11284165 | Cooktop (black) (Replaces: W11121005) |
|
- | |||||
| 3 | W10422108 | Assembly, Trim (for Stainless Models) |
|
Immediately | $ 330.33 | ||||
| 4 | N/P | Trim, Front Stainless (not Serviced) |
|
- | |||||
| 5 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 6 | W11259509 | Appliance Manager, Expansion (Replaces: W11115981) |
|
Immediately | $ 451.25 | ||||
| 7 | W11350303 | Appliance Manager, Copernicus (Replaces: W11296739) |
|
$ 459.39 | |||||
| 8 | W11242976 | Pad, Insulation |
|
- | |||||
| 9 | W11296723 | Assembly, Ui |
|
- | |||||
| 10 | W11179387 | Antenna |
|
- | |||||
| 11 | WPW10298145 | Element (4500w) (left Front) (Replaces: W10298145) |
|
Immediately | $ 311.63 | ||||
| 12 | W11179787 | Assembly, Loki Wifi |
|
- | |||||
| 13 | 8186533 | Bracket, Cooktop Mounting (Replaces: 4455917) |
|
$ 83.57 | |||||
| 14 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.80 | |||||
| 15 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 16 | W11260678 | Top, Foam (heat Shield) (Replaces: W11177346) |
|
$ 22.24 | |||||
| 17 | W11110713 | Rail, Vertical |
|
- | |||||
| 18 | W11110715 | Rail, Horizontal |
|
- | |||||
| 19 | N/P | Cover, Win Port (not Serviced) |
|
- | |||||
| 20 | N/P | Box, Burner (not Serviced) |
|
- | |||||
| 21 | W11102056 | Shield, Heat |
|
- | |||||
| 11A | WPW10342780 | Element (1300w) (left Rear & Right Rear) (Replaces: W10342780) |
|
Immediately | $ 151.61 | ||||
| 11B | W11259508 | Element (3200w) (center Rear) (Replaces: W11117008) |
|
Immediately | $ 304.66 | ||||
| 1A | W10351318 | Instructions, Undercounter Install |
|
- | |||||
| 1B | W11297622 | Guide, Use & Care |
|
- | |||||
| 1C | W11238372 | Diagram, Wiring |
|
- | |||||
| 1D | W11234441 | Guide, Internet Connectivity |
|
- | |||||
| 2A | W11284033 | Cooktop (stainless) (Replaces: W11121006) |
|
$ 893.85 | |||||
| NI | WP8286642 | Tape, Foam (Replaces: 8286642) |
|
Immediately | $ 140.81 | ||||
| NI | W11260679 | Insulation, Cooktop (Replaces: W11160362) |
|
- | |||||
| NI | W11110558 | Harness, Main |
|
- | |||||
| NI | W10491984 | Seal, Limiter (Replaces: 3192439) |
|
$ 10.85 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- |
