SELECT A DIAGRAM

01 - Cover Sheet

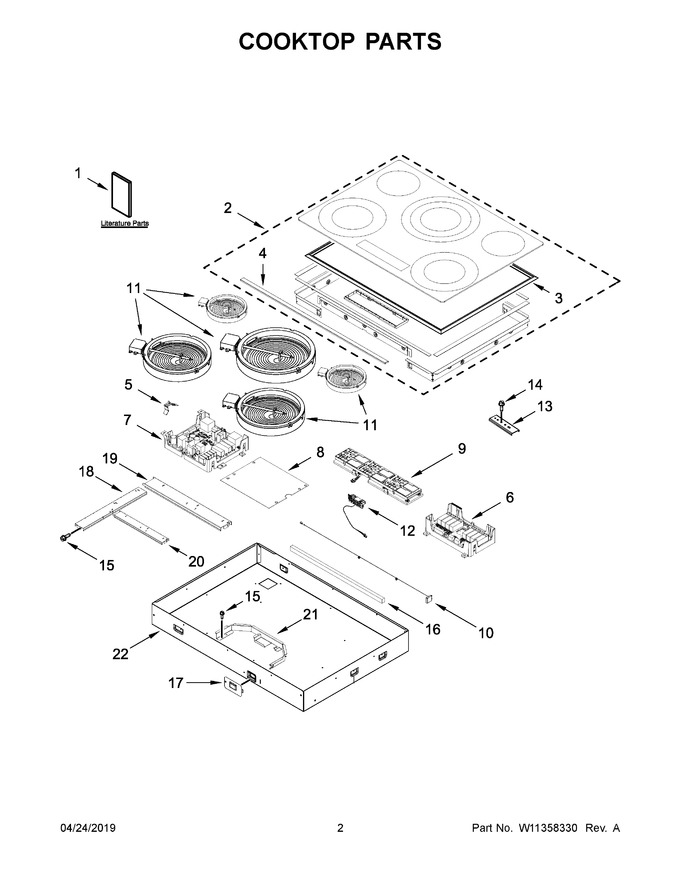

02 - Cooktop Parts


03 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11236401		Instruction, Installation		Appelez-nous	-
2	W11283299		Cooktop (black)   (Replaces: W11121007)				$ 1,084.55
3	W10422109		Assembly, Trim (for Stainless Models)			Immediately	$ 342.15
4	N/P		Trim, Front Stainless (not Serviced)		Appelez-nous	-
5	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 9.36
6	W11282854		Appliance Manager, Expansion   (Replaces: W11115983)				$ 454.30
7	W11350287		Appliance Manager, Copernicus   (Replaces: W11296738)				$ 457.91
8	W11242976		Pad, Insulation		Appelez-nous	-
9	W11296724		Assembly, Ui		Appelez-nous	-
10	W11179388		Antenna		Appelez-nous	-
11	W11517959		Element (3000/1400w) (left Front & Right Front)   (Replaces: W10275048)			Immediately	$ 132.01
12	W11179787		Assembly, Loki Wifi		Appelez-nous	-
13	8186533		Bracket, Cooktop Mounting   (Replaces: 4455917)				$ 83.57
14	WP3400093		Screw   (Replaces: 3400093)				$ 6.80
15	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
16	W11260678		Top, Foam (heat Shield)   (Replaces: W11177352)				$ 22.24
17	N/P		Cover, Win Port (not Serviced)		Appelez-nous	-
18	W11110716		Rail, Short Cooktop		Appelez-nous	-
19	W11110717		Rail, Auxiliar		Appelez-nous	-
20	W11106010		Rail, Horizontal		Appelez-nous	-
21	W11110726		Shield, Heat		Appelez-nous	-
22	N/P		Box, Burner (not Serviced)		Appelez-nous	-
11A	W11171119		Element (1200w) (left Rear & Right Rear)   (Replaces: 8273994)			Immediately	$ 203.06
11B	WPW10298145		Element (4500w) (center Rear)   (Replaces: W10298145)			Immediately	$ 311.63
1A	W10351318		Instructions, Undercounter Install		Appelez-nous	-
1B	W11297622		Guide, Use & Care		Appelez-nous	-
1C	W11238373		Diagram, Wiring		Appelez-nous	-
1D	W11234441		Guide, Internet Connectivity		Appelez-nous	-
2A	W11283508		Cooktop (stainless)   (Replaces: W11121009)				$ 970.04
NI	WP8286642		Tape, Foam   (Replaces: 8286642)			Immediately	$ 140.81
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11261074		Insulation, Cooktop   (Replaces: W11160360)		Appelez-nous	-
NI	WP3400015		Screw, Grounding   (Replaces: 3400015)				$ 6.80
NI	WP74005233		Screw   (Replaces: 7101P520-60)				$ 7.12
NI	WP7103P027-60		Nut   (Replaces: 7103P027-60)			Immediately	$ 6.80
NI	W10491984		Seal, Limiter   (Replaces: 3192439)				$ 10.85
NI	W11110557		Harness, Main			Immediately	$ 220.35

    View Diagram in Separate Window       Print Part List
