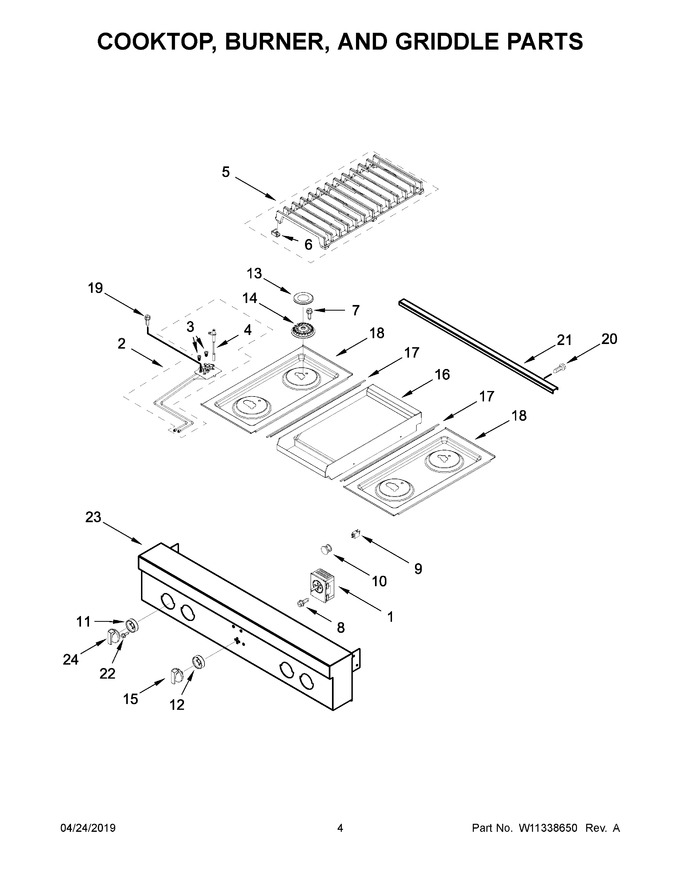

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11318834 | Control, Griddle (Replaces: W11033497) |
|
Immediately | $ 356.52 | ||||
| 2 | W11337062 | Assembly, Orifice Holder (left Front And Right Front) (Replaces: W10892771) |
|
Immediately | $ 128.25 | ||||
| 3 | W11643164 | Orifice, Main (17.4k) (left Front, Left Rear, Right Front) (Replaces: W10892422) |
|
Immediately | $ 65.21 | ||||
| 4 | W11580024 | Igniter (left Front, Left Rear, Right Front) (Replaces: W11238758) |
|
Immediately | $ 23.66 | ||||
| 5 | W11516449 | Assembly, Grate (black (left)) (Replaces: W11172289) |
|
$ 265.06 | |||||
| 6 | W11550692 | Bumper, Grate (Replaces: W11042504) |
|
Immediately | $ 12.57 | ||||
| 7 | W11447718 | Screw (Replaces: W11196257) |
|
Immediately | $ 14.74 | ||||
| 8 | W10674068 | Screw |
|
$ 24.39 | |||||
| 9 | W10116114 | Light, Indicator Housing |
|
Immediately | $ 93.57 | ||||
| 10 | W10294500 | Lens, Indicator Light |
|
$ 7.69 | |||||
| 11 | W11317889 | Bezel, Cooktop (Replaces: W11090284) |
|
$ 106.87 | |||||
| 12 | W11317890 | Bezel, Griddle (Replaces: W11104967) |
|
$ 109.56 | |||||
| 13 | W11328971 | Cap, Burner (black (set Of 4)) (Replaces: W11121391) |
|
$ 173.40 | |||||
| 14 | W11319683 | Spreader, Flame (high) (left Front, Left Rear, Right Front) (Replaces: W10891987) |
|
Immediately | $ 250.69 | ||||
| 15 | W11317536 | Knob, Griddle (stainless) (Replaces: W10891923) |
|
$ 148.63 | |||||
| 16 | W11602621 | Assembly, Griddle Module (assembly Breakdown Shown On Burner Box Page) (Replaces: W10891745) |
|
Immediately | $ 1,547.02 | ||||
| 17 | W10291193 | Trim, L-strip |
|
- | |||||
| 18 | W11316700 | Panel, Cooktop (black (left)) (Replaces: W11038237) |
|
$ 502.01 | |||||
| 19 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 20 | W11233072 | Screw (Replaces: 7101P338-60) |
|
Immediately | $ 14.72 | ||||
| 21 | W11355760 | Trim, Island |
|
$ 246.15 | |||||
| 22 | W11674763 | Screw (Replaces: W10919387) |
|
$ 14.76 | |||||
| 23 | W11339745 | Panel, Console (Replaces: W11253797) |
|
- | |||||
| 24 | W11317537 | Knob, Burner (stainless) (Replaces: W10887596) |
|
Immediately | $ 175.20 | ||||
| 14A | W11319673 | Spreader, Flame (low) (right Rear) (Replaces: W10892022) |
|
Immediately | $ 229.46 | ||||
| 18A | W11333312 | Panel, Cooktop (black (right)) (Replaces: W11038253) |
|
$ 475.25 | |||||
| 2A | W11337063 | Assembly, Orifice Holder (left Rear) (Replaces: W10892486) |
|
Immediately | $ 128.27 | ||||
| 2B | W11337065 | Assembly, Orifice Holder (right Rear) (Replaces: W10892772) |
|
$ 128.73 | |||||
| 3A | W10892440 | Orifice, Main (7.2k) (right Rear) |
|
$ 99.86 | |||||
| 3B | W11661909 | Orifice, Simmer (2.6k) (left Front, Left Rear, Right Front) (Replaces: W10892435) |
|
Immediately | $ 75.02 | ||||
| 3C | W10892429 | Orifice, Simmer (2.0k) (right Rear) |
|
$ 99.86 | |||||
| 4A | W11238756 | Igniter (right Rear) |
|
Immediately | $ 67.96 | ||||
| 5A | W11516462 | Assembly, Grate (black (right)) (Replaces: W11172625) |
|
$ 265.07 |
