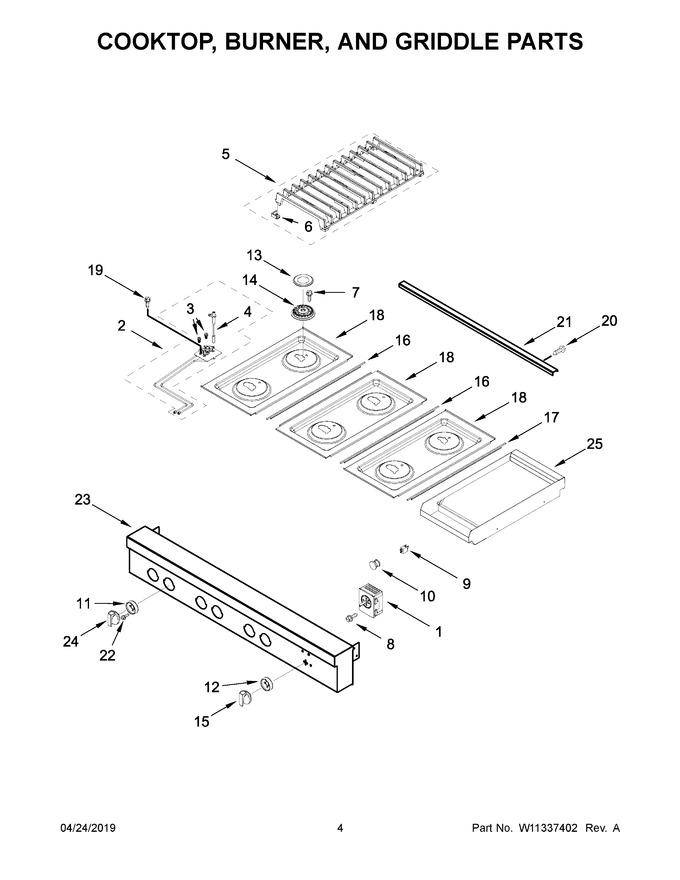

03 - Cooktop, Burner, And Griddle Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11318834 | Control, Griddle (Replaces: W11033497) |
|
Immediately | $ 320.87 | ||||
| 2 | W11337062 | Assembly, Orifice Holder (left Front, Left Center Front, Right Center Front) (Replaces: W10892771) |
|
Immediately | $ 115.43 | ||||
| 3 | W11643164 | Orifice, Main (17.4k) (all But Left Center Rear) (Replaces: W10892422) |
|
Immediately | $ 58.69 | ||||
| 4 | W11580024 | Igniter (all But Left Center Rear) (Replaces: W11238758) |
|
Immediately | $ 21.29 | ||||
| 5 | W11516449 | Assembly, Grate (black) (left) (Replaces: W11172289) |
|
$ 238.55 | |||||
| 6 | W11550692 | Bumper, Grate (Replaces: W11042504) |
|
Immediately | $ 11.31 | ||||
| 7 | W11447718 | Screw (Replaces: W11196257) |
|
Immediately | $ 13.27 | ||||
| 8 | W10674068 | Screw |
|
$ 21.95 | |||||
| 9 | W10116114 | Light, Indicator Housing |
|
Immediately | $ 84.21 | ||||
| 10 | W10294500 | Lens, Indicator Light |
|
$ 6.92 | |||||
| 11 | W11317889 | Bezel, Cooktop (Replaces: W11090284) |
|
$ 96.18 | |||||
| 12 | W11317890 | Bezel, Griddle (Replaces: W11104967) |
|
$ 98.60 | |||||
| 13 | W11319224 | Cap, Burner (black (set Of 6)) (Replaces: W11121392) |
|
Immediately | $ 226.98 | ||||
| 14 | W11319683 | Spreader, Flame (high) (all But Left Center Rear) (Replaces: W10891987) |
|
Immediately | $ 225.62 | ||||
| 15 | W11317536 | Knob, Griddle (stainless) (Replaces: W10891923) |
|
$ 133.77 | |||||
| 16 | W10271524 | Trim, T-strip (black) |
|
$ 191.11 | |||||
| 17 | W10291193 | Trim, L-strip |
|
- | |||||
| 18 | W11316700 | Panel, Cooktop (black) (left) (Replaces: W11038237) |
|
$ 451.81 | |||||
| 19 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 20 | W11233072 | Screw (Replaces: 7101P338-60) |
|
Immediately | $ 13.25 | ||||
| 21 | W11355761 | Trim, Island |
|
- | |||||
| 22 | W11674763 | Screw (Replaces: W10919387) |
|
$ 13.28 | |||||
| 23 | W11339508 | Panel, Console (Replaces: W11253795) |
|
- | |||||
| 24 | W11317537 | Knob, Burner (stainless) (Replaces: W10887596) |
|
Immediately | $ 157.68 | ||||
| 25 | W11602621 | Assembly, Griddle Module (assembly Breakdown Shown On Burner Box Page) (Replaces: W10891745) |
|
Immediately | $ 1,392.32 | ||||
| 14A | W11319673 | Spreader, Flame (low) (left Center Rear) (Replaces: W10892022) |
|
Immediately | $ 206.51 | ||||
| 18A | W11316701 | Panel, Cooktop (black) (left Center) (Replaces: W11038241) |
|
$ 451.81 | |||||
| 18B | W11316702 | Panel, Cooktop (black) (right Center) (Replaces: W11038249) |
|
- | |||||
| 2A | W11337063 | Assembly, Orifice Holder (left Rear And Right Center Rear) (Replaces: W10892486) |
|
Immediately | $ 115.44 | ||||
| 2B | W11337065 | Assembly, Orifice Holder (left Center Rear) (Replaces: W10892772) |
|
$ 115.86 | |||||
| 3A | W10892440 | Orifice, Main (7.2k) (left Center Rear) |
|
$ 89.87 | |||||
| 3B | W11661909 | Orifice, Simmer (2.6k) (all But Left Center Rear) (Replaces: W10892435) |
|
Immediately | $ 67.52 | ||||
| 3C | W10892429 | Orifice, Simmer (2.0k) (left Center Rear) |
|
$ 89.87 | |||||
| 4A | W11238756 | Igniter (left Center Rear) |
|
Immediately | $ 61.16 | ||||
| 5A | W11516481 | Assembly, Grate (black) (left Center) (Replaces: W11172654) |
|
$ 234.05 | |||||
| 5B | W11516462 | Assembly, Grate (black) (right Center) (Replaces: W11172625) |
|
$ 238.56 |
