01 - Cover Sheet

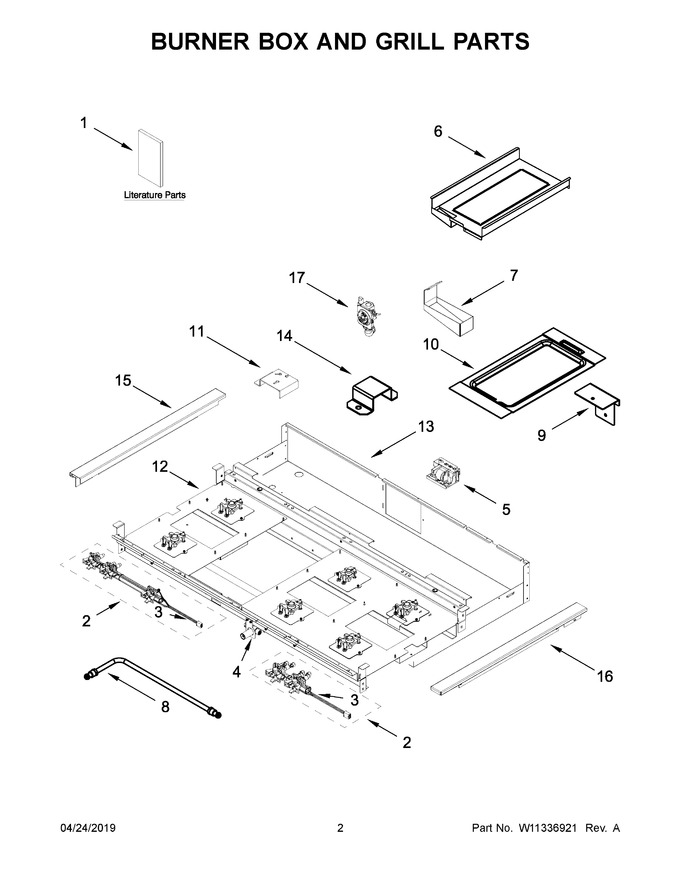

02 - Burner Box And Grill Parts
03 - Cooktop, Burner, And Grill Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11114328 | Guide, Use And Care |
|
- | |||||
| 2 | W11336703 | Assembly, Valve Manifold (left Front, Left Rear, And Grill) (Replaces: W10893056) |
|
$ 531.13 | |||||
| 3 | W11106304 | Switch, Harness (left Front, Left Rear, And Grill) |
|
- | |||||
| 4 | W11121199 | Bracket, Manifold |
|
- | |||||
| 5 | W11818690 | Module, Spark (Replaces: W11121317) |
|
Immediately | $ 73.44 | ||||
| 6 | W11328011 | Capture, Grill Grease (Replaces: W11120957) |
|
- | |||||
| 7 | W11328012 | Tray, Grill Drip (Replaces: W11174414) |
|
- | |||||
| 8 | W11338091 | Tube, Manifold Supply (left) (Replaces: W10892476) |
|
- | |||||
| 9 | W11285353 | Bracket, Grill Grease Capture |
|
- | |||||
| 10 | W11328372 | Deflector, Grill Heat (Replaces: W11120965) |
|
- | |||||
| 11 | 8285790 | Bracket, Mounting Orifice |
|
$ 77.27 | |||||
| 12 | N/P | Assembly, Burner Box (not Serviced) |
|
- | |||||
| 13 | N/P | Box, Burner (not Serviced) |
|
- | |||||
| 14 | W11174418 | Bracket, Grill Orifice Holder |
|
- | |||||
| 15 | W11337059 | Main Trim, Left (Replaces: W11047749) |
|
$ 159.36 | |||||
| 16 | W11337061 | Main Trim, Right (Replaces: W11047751) |
|
$ 159.63 | |||||
| 17 | W11106948 | Regulator, Pressure (Replaces: W10449140) |
|
Immediately | $ 215.01 | ||||
| 1A | W11110989 | Instructions, Installation |
|
- | |||||
| 1B | W11266584 | Diagram, Wiring (cooktop) |
|
- | |||||
| 1C | W11266565 | Sheet, Tech |
|
- | |||||
| 2A | W11333176 | Assembly, Valve Manifold (right Center Front And Right Center Rear) (Replaces: W10893062) |
|
Immediately | $ 405.19 | ||||
| 2B | W11338090 | Assembly, Valve Manifold (right Front And Right Rear) (Replaces: W11183724) |
|
Immediately | $ 397.04 | ||||
| 3A | W11320016 | Switch, Harness (right Center Front, Right Center Rear, Right Front, Right Rear) (Replaces: W11106300) |
|
Immediately | $ 243.74 | ||||
| 8A | W11339377 | Tube, Manifold Supply (right Center) (Replaces: W10892445) |
|
- | |||||
| 8B | W11339379 | Tube, Manifold Supply (right) (Replaces: W10892347) |
|
$ 161.52 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11428599 | Kit, Lp Conversion (Replaces: W11238041) |
|
Immediately | $ 43.06 | ||||
| NI | W11038934 | Harness, Jumper |
|
$ 168.21 | |||||
| NI | W10624584 | Cord, Power |
|
$ 170.61 | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 12.12 | |||||
| NI | W11200330 | Harness, Cooktop |
|
- |
