01 - Cover Sheet

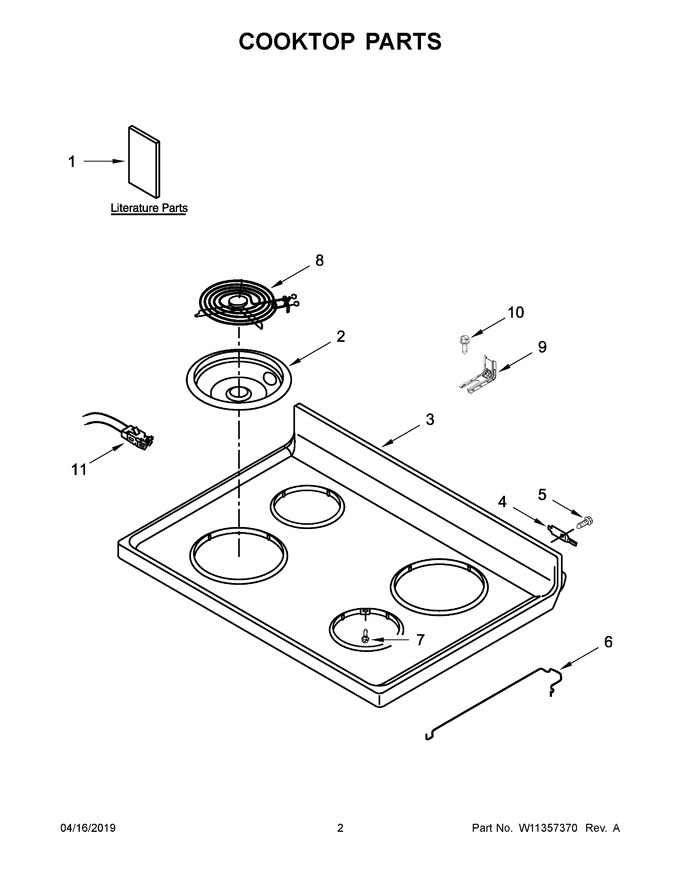

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10877842 | Instructions, Installation |
|
- | |||||
| 2 | WPW10196406 | Bowl, Drip (6") (right Front And Left Rear) (Replaces: W10196406) |
|
Immediately | $ 12.05 | ||||
| 3 | 8195532 | Cooktop (white) (Replaces: 3186231) |
|
$ 377.38 | |||||
| 4 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 11.86 | ||||
| 5 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 6 | WP3195812 | Rod, Support (Replaces: 3195812) |
|
Immediately | $ 7.86 | ||||
| 7 | WP3196154 | Screw (Replaces: 3196154) |
|
$ 7.60 | |||||
| 8 | W11396792 | Element, Coil Heating (1300w) (right Front And Left Rear) (Replaces: W11199519) |
|
Immediately | $ 112.00 | ||||
| 9 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 25.69 | ||||
| 10 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 27.65 | |||||
| 11 | 814399 | Receptacle, Element |
|
Immediately | $ 38.87 | ||||
| 1A | W11235901 | Use And Care Guide |
|
- | |||||
| 1B | W11245180 | Wiring Diagram |
|
- | |||||
| 2A | WPW10196405 | Bowl, Drip (8") (left Front And Right Rear) (Replaces: W10196405) |
|
Immediately | $ 15.56 | ||||
| 8A | W11396790 | Element, Coil Heating (2150w) (left Front And Right Rear) (Replaces: W11199518) |
|
Immediately | $ 113.84 | ||||
| NI | W11172524 | Harness, Sensor |
|
$ 195.47 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11226235 | Harness, Assembly Lcc |
|
$ 179.04 | |||||
| NI | W11134651 | Harness, Cooktop |
|
$ 178.39 |
