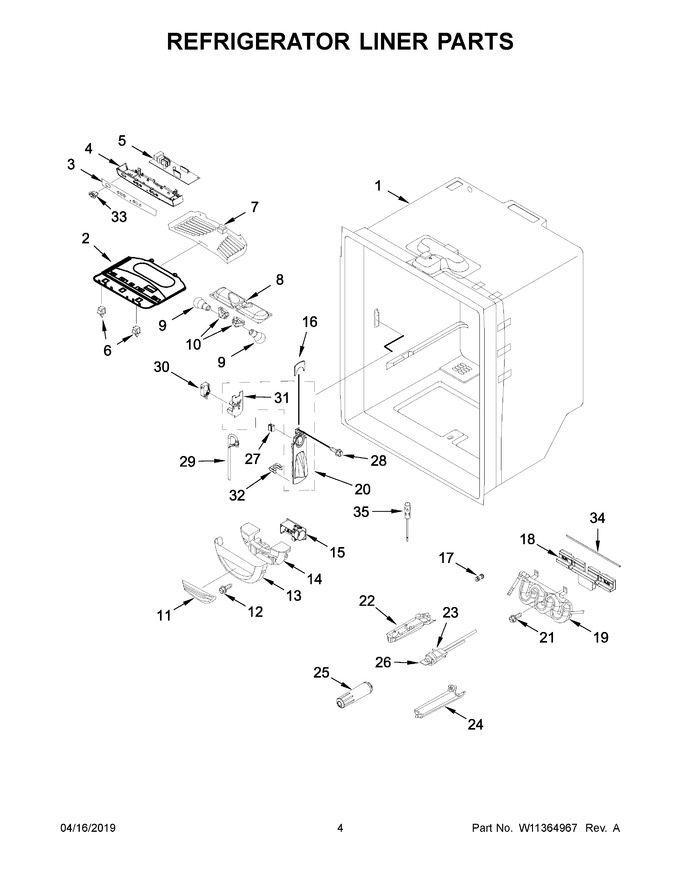

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W10464764 | Module, Light |
|
$ 107.02 | |||||
| 3 | W11478401 | Overlay, Control (Replaces: W10613576) |
|
Immediately | $ 224.33 | ||||
| 4 | W11478401 | Module, Control (Replaces: W10464775) |
|
Immediately | $ 224.33 | ||||
| 5 | WPW10503278 | Control, Electronic (Replaces: W10503278) |
|
Immediately | $ 56.16 | ||||
| 6 | W11384469 | Switch, Light (Replaces: W10847853) |
|
Immediately | $ 35.18 | ||||
| 7 | W11284721 | Cover, Light (Replaces: W11132917) |
|
$ 95.42 | |||||
| 8 | W10443023 | Housing, Light |
|
Immediately | $ 105.97 | ||||
| 9 | W11107911 | Lamp, Led (Replaces: W11038115) |
|
$ 56.93 | |||||
| 10 | W11447232 | Socket, Light (Replaces: 12570701V) |
|
Immediately | $ 12.48 | ||||
| 11 | 67003900 | Insert, Damper Cover (Replaces: 12806801) |
|
$ 7.70 | |||||
| 12 | W11772394 | Screw (Replaces: 12990604) |
|
Immediately | $ 11.90 | ||||
| 13 | WP12806701 | Cover, Damper (Replaces: 12806701) |
|
$ 106.79 | |||||
| 14 | W11750607 | Insulation, Damper (Replaces: 13012402) |
|
$ 45.14 | |||||
| 15 | WPW10594330 | Damper, Control (Replaces: W10594330) |
|
Immediately | $ 180.44 | ||||
| 16 | W11519867 | Facade, Dispenser (top) (Replaces: 12707005) |
|
Immediately | $ 23.72 | ||||
| 17 | WP2300868 | Union, Water (Replaces: 61006182) |
|
Immediately | $ 33.29 | ||||
| 18 | W11714300 | Insulation, Water Tank (Replaces: W10117358) |
|
$ 52.06 | |||||
| 19 | W11229977 | Tank, Water (Replaces: W11097710) |
|
Immediately | $ 162.26 | ||||
| 20 | WPW10585703 | Facade, Dispenser (Replaces: W10585703) |
|
Immediately | $ 70.17 | ||||
| 21 | WP67006415 | Screw (Replaces: 12990512) |
|
$ 7.54 | |||||
| 22 | WP67001668 | Plate, Filter (Replaces: 12704801) |
|
Immediately | $ 15.08 | ||||
| 23 | W11808483 | Head, Water Filter (includes Bypass Cartridge) (Replaces: W11308018) |
|
Immediately | $ 139.39 | ||||
| 24 | WP12568001 | Cover, Filter (Replaces: 12568001) |
|
Immediately | $ 78.08 | ||||
| 25 | EDR4RXD1B | Filter, Water (Replaces: W11256384) |
|
Immediately | $ 49.99 | ||||
| 26 | W11395888 | Cartridge, Bypass (Replaces: 12664501SP) |
|
Immediately | $ 45.65 | ||||
| 27 | W10819546 | Clip, Facade (Replaces: B8390302) |
|
$ 11.83 | |||||
| 28 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.57 | ||||
| 29 | W11677725 | Guide, Waterline (Replaces: W11031909) |
|
$ 22.28 | |||||
| 30 | WP12575501 | Switch, Limit (Replaces: 12575501) |
|
$ 65.12 | |||||
| 31 | W11515355 | Plate, Dispenser (Replaces: W10585699) |
|
Immediately | $ 7.72 | ||||
| 32 | 67002816 | Clip, Water Tube (Replaces: 12251001) |
|
$ 17.24 | |||||
| 33 | W11478401 | Switch, Energy Saver (Replaces: 12861601) |
|
Immediately | $ 224.33 | ||||
| 34 | WPW10130483 | Gasket, Seal (Replaces: 10685510) |
|
$ 6.24 | |||||
| 35 | 12002355 | Thermistor (Replaces: 12791403) |
|
Immediately | $ 44.10 | ||||
| NI | W11478401 | Harness, Controls (refrigerator, Includes Thermistor) (Replaces: W10389967) |
|
Immediately | $ 224.33 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- |
