Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11451765 Assembly, Control Panel (stainless)   (Replaces: W11196782) Special Order $ 1,270.04

2 W11123146 Assembly, Speaker   (Replaces: W10568405) Special Order $ 72.84

3 W10668510 Housing Special Order $ 94.65

4 W10566973 Harness, Keypad (left To Center) Special Order $ 73.97

5 W10489172 Screw Special Order $ 10.78

6 W10524350 Harness, Keypad (right To Center) Special Order $ 70.39

7 W10575307 Jumper Harness, Power Supply In-Stock Immediately $ 156.46

8 W11197499 Skin, Control Panel (stainless) In-Stock Immediately $ 325.60


    View Diagram in Separate Window     Print Icon   Print Part List

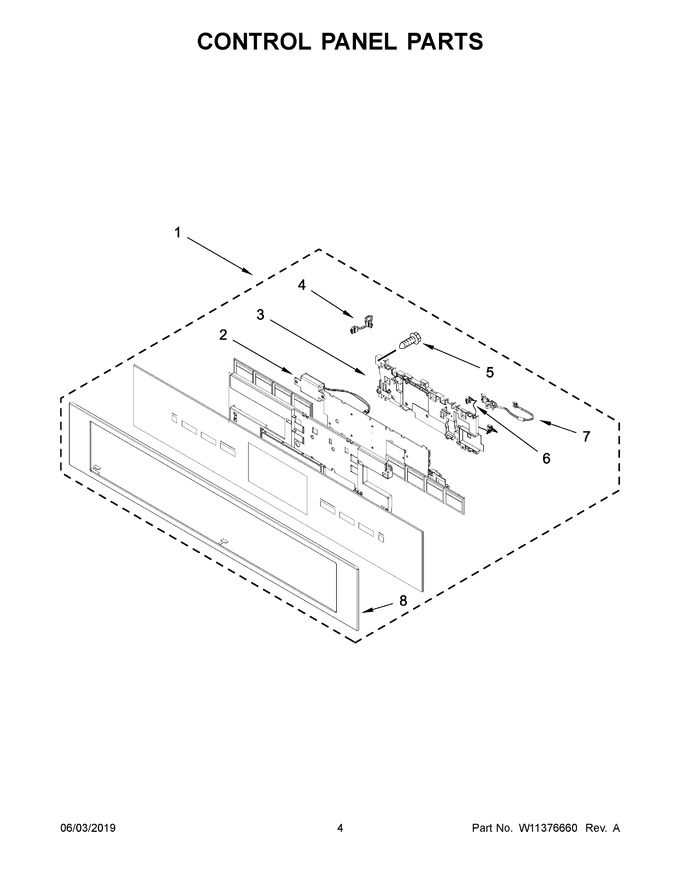

Diagram for JMC2427IL02
