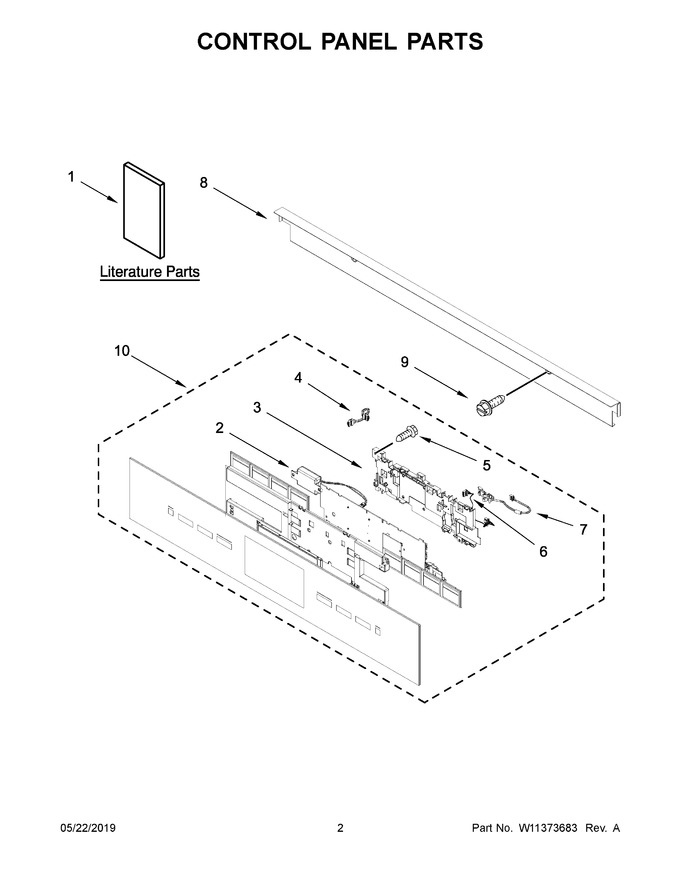

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11235626 | Instructions, Installation |
|
- | |||||
| 2 | W11123146 | Assembly, Speaker (Replaces: W10568405) |
|
$ 80.93 | |||||
| 3 | W10668510 | Housing |
|
$ 105.17 | |||||
| 4 | W10566973 | Harness, Keypad (left To Center) |
|
$ 82.19 | |||||
| 5 | W10489172 | Screw |
|
$ 11.98 | |||||
| 6 | W10524350 | Harness, Keypad (right To Center) |
|
$ 78.21 | |||||
| 7 | W10575307 | Jumper Harness, Power Supply |
|
Immediately | $ 173.84 | ||||
| 8 | W10444127 | Cover, 30" Compliment |
|
$ 130.73 | |||||
| 9 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 10 | W11460596 | Assembly, Control Panel (black) (Replaces: W11241533) |
|
$ 1,576.73 | |||||
| 1A | W11235346 | Guide, Use And Care (microwave Oven) |
|
- | |||||
| 1B | W11284428 | Sheet, Tech |
|
- | |||||
| 1C | W11235305 | Diagram, Wiring |
|
- | |||||
| NI | W10760039 | Bag, Hardware (Replaces: W10513362) |
|
$ 12.17 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11449277 | Harness, Interlock (Replaces: W11356969) |
|
Immediately | $ 156.02 | ||||
| NI | W11356954 | Harness, Fan And Turntable |
|
$ 148.75 | |||||
| NI | W11356968 | Harness, Inverter |
|
$ 153.25 | |||||
| NI | W11356986 | Harness, Communication |
|
Immediately | $ 112.86 | ||||
| NI | W11356977 | Harness, Cable Tree Assembly |
|
$ 85.07 | |||||
| NI | W11325605 | Jumper Harness, Communication (Replaces: W11356987) |
|
$ 191.19 | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 13.47 | |||||
| NI | W11226264 | Strap, Ground (Replaces: W10392129) |
|
- | |||||
| NI | W11356992 | Conduit |
|
$ 223.29 |
