01 - Cover Sheet

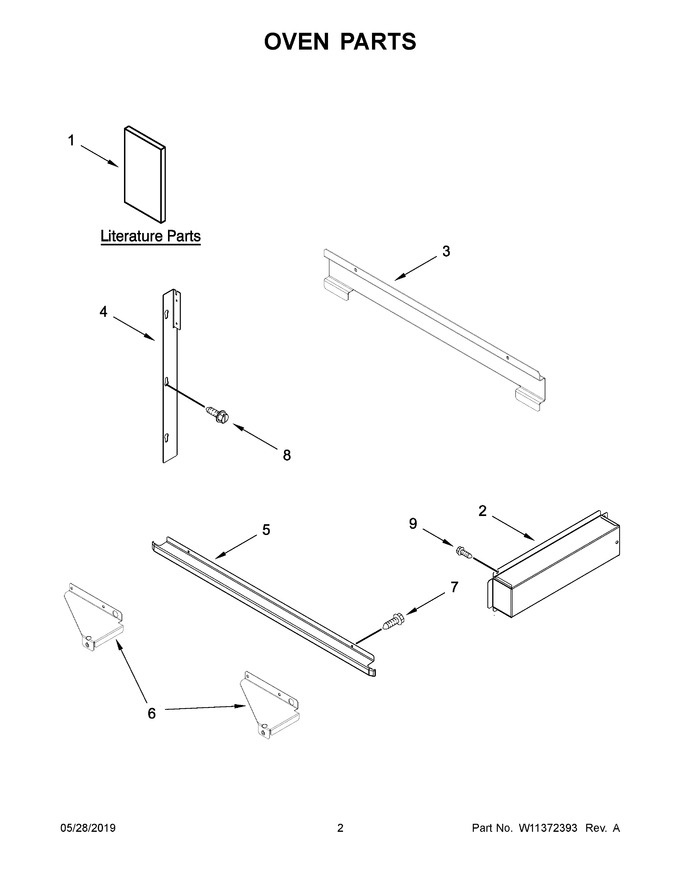

02 - Oven Parts


03 - Control Panel Parts


04 - Microwave Door Parts


05 - Cabinet And Stirrer Parts


06 - Internal Microwave Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11091154		Instructions, Installation		Appelez-nous	-
2	W10239155		Box, Conduit				$ 92.88
3	W11673269		Support, Microwave Module   (Replaces: W10420960)			Immediately	$ 62.93
4	W10416256		Rail, Side (left)				$ 46.45
5	W10420959		Trim, Bottom				$ 193.73
6	W10239158		Bracket, Lower (left)		Appelez-nous	-
7	WP3400832		Screw (black)   (Replaces: 3400832)			Immediately	$ 7.36
8	WPY706189		Screw   (Replaces: 7101P653-60)			Immediately	$ 6.80
9	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
1A	W10643473		Guide, Use & Care (microwave Oven)		Appelez-nous	-
1B	W10756613		Sheet, Tech		Appelez-nous	-
4A	W10416255		Rail, Side (right)				$ 42.65
6A	W10239159		Bracket, Lower (right)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11449277		Harness, Interlock   (Replaces: W11356969)			Immediately	$ 140.42
NI	W11356954		Harness, Fan And Turntable				$ 133.88
NI	W11356968		Harness, Inverter				$ 137.93
NI	W11356986		Harness, Communication			Immediately	$ 101.57
NI	W11356977		Harness, Cable Tree Assembly				$ 76.56
NI	W11325605		Jumper Harness, Communication   (Replaces: W11356987)				$ 172.07
NI	4450800		Screw, Grounding				$ 12.12
NI	W11226264		Strap, Ground   (Replaces: W10392129)		Appelez-nous	-
NI	W10760039		Bag, Hardware   (Replaces: W10513362)				$ 10.95
NI	W11356992		Conduit				$ 200.96

    View Diagram in Separate Window       Print Part List
