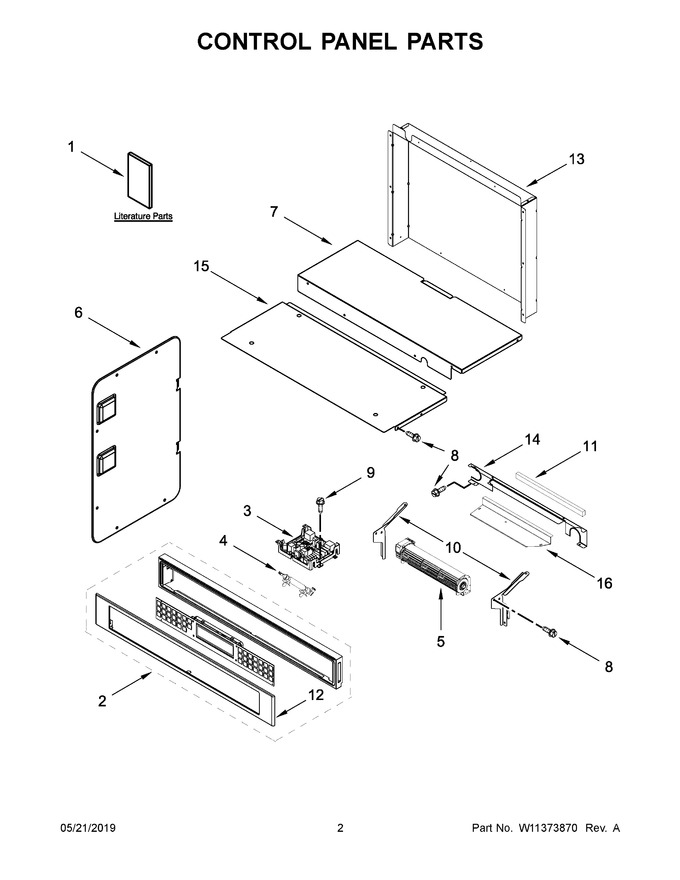

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10888962 | Instructions, Installation |
|
- | |||||
| 2 | W10916780 | Assembly, Control Panel (includes Overlay) (black Stainless) (Replaces: W10890560) |
|
$ 492.61 | |||||
| 3 | W11179310 | Control (with Power Supply) (Replaces: W11040195) |
|
Immediately | $ 497.50 | ||||
| 4 | WPW10545255 | Fuse, Thermal (Replaces: W10436434) |
|
Immediately | $ 25.43 | ||||
| 5 | W11713858 | Blower, Dual Speed (Replaces: W11200130) |
|
Immediately | $ 313.73 | ||||
| 6 | W10655467 | Chassis, Combo Side |
|
$ 74.72 | |||||
| 7 | W11037652 | Chassis, Cover Top Back 27" Wifi |
|
- | |||||
| 8 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 9 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 6.57 | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 7.33 | ||||
| 12 | W10909789 | Skin, Control Panel (black Stainless) (Replaces: W10861075) |
|
$ 470.23 | |||||
| 13 | W11037653 | Cover, Combo Chassis Back Duct (with Hole) |
|
$ 64.85 | |||||
| 14 | W10618126 | Chassis, Back Divider |
|
- | |||||
| 15 | W10318159 | Chassis, Cover Top Front 27 |
|
- | |||||
| 16 | W10681157 | Cover, Combo Blower |
|
- | |||||
| 10A | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 1A | W10643472 | Guide, Use & Care (oven) |
|
- | |||||
| 1B | W10643473 | Guide, Use & Care (microwave Oven) |
|
- | |||||
| 1C | W11041081 | Sheet, Tech (english) |
|
- | |||||
| 1D | W11041082 | Sheet, Tech (french) |
|
- | |||||
| NI | WPW10017410 | Fuse, Time Delay (Replaces: W10017410) |
|
Immediately | $ 20.01 | ||||
| NI | W11325605 | Jumper Harness, Communication (Replaces: W11356987) |
|
$ 172.07 | |||||
| NI | W11356968 | Harness, Inverter |
|
$ 137.93 | |||||
| NI | W11229448 | Harness, Communication |
|
$ 211.85 | |||||
| NI | W11132989 | Harness, Door Latch |
|
$ 107.08 | |||||
| NI | W11157223 | Harness, Signal |
|
- | |||||
| NI | W11157180 | Harness, Main |
|
$ 230.41 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | 4454949 | Holder, Fuse |
|
$ 85.72 | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 12.12 | |||||
| NI | W11226264 | Strap, Ground |
|
- | |||||
| NI | 4448664 | Clamp, Conduit |
|
$ 19.27 | |||||
| NI | W11356977 | Harness, Cable Tree Assembly |
|
$ 76.56 |
