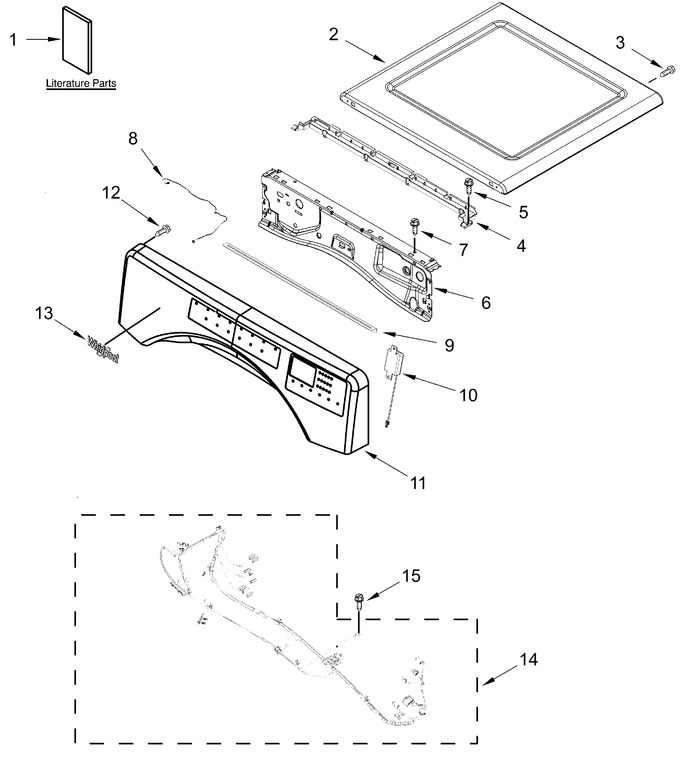

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | WPW10208383 | Top (white) (Replaces: W10208383) |
|
$ 323.93 | |||||
| 3 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 4 | W11310027 | Water Channel (Replaces: W11255768) |
|
$ 23.74 | |||||
| 5 | W11686675 | Screw (Replaces: 12990702) |
|
$ 14.27 | |||||
| 6 | W11480682 | Console Bracket (Replaces: W10208198) |
|
$ 81.21 | |||||
| 7 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 8 | W11459337 | User Interface Harness (Replaces: W11160620) |
|
$ 33.89 | |||||
| 9 | W11231800 | Seal |
|
- | |||||
| 10 | W11123146 | Speaker Assembly (Replaces: W10568405) |
|
$ 80.93 | |||||
| 11 | W11331944 | Console Panel (white) (Replaces: W11296380) |
|
Immediately | $ 508.99 | ||||
| 12 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 8.18 | ||||
| 13 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 87.26 | ||||
| 14 | W11157870 | Wiring Harness (upper) |
|
- | |||||
| 15 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| W11457205 | Wiring Diagram |
|
- | ||||||
| W11184587 | Use And Care Guide |
|
- | ||||||
| W11184511 | Installation Instructions |
|
- | ||||||
| W11459721 | Tech Sheet |
|
- | ||||||
| W11184896 | Quick Start Guide |
|
- |
