01 - Cover Sheet

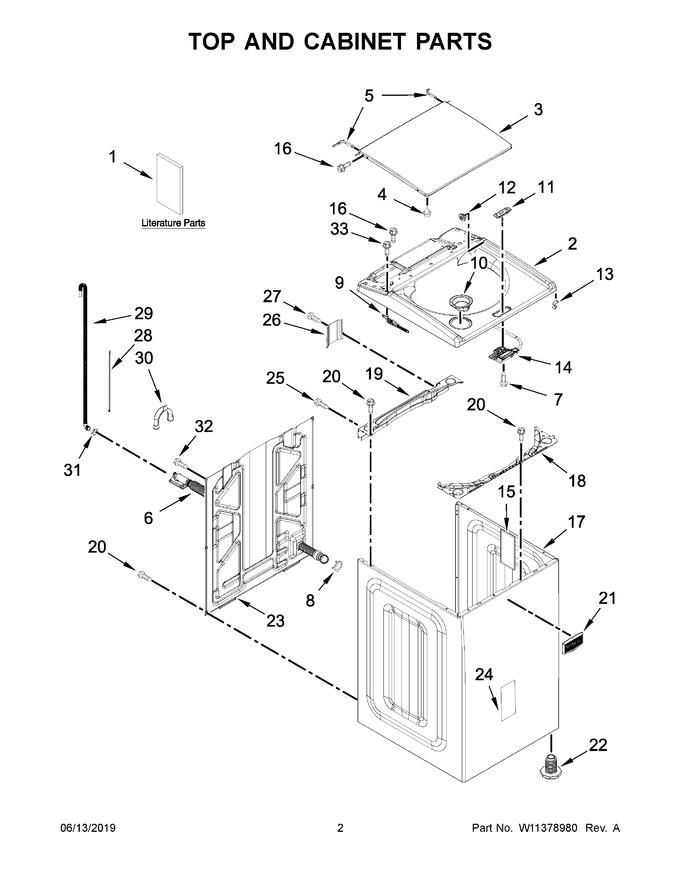

02 - Top And Cabinet Parts
03 - Console And Dispenser Parts
04 - Motor, Basket And Tub Parts
05 - Pump Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11128376 | Instructions, Installation |
|
- | |||||
| 2 | W11097645 | Top (white) (Replaces: W10635913) |
|
Immediately | $ 331.95 | ||||
| 3 | W11098825 | Assembly, Lid And Bumper (white) (Replaces: W10631106) |
|
$ 335.62 | |||||
| 4 | WP9724509 | Bumper (Replaces: 9724509) |
|
Immediately | $ 7.50 | ||||
| 5 | WP8563964 | Hinge Arm, Lid (Replaces: 8563964) |
|
Immediately | $ 8.27 | ||||
| 6 | W11035296 | Hose, Internal Drain (Replaces: W10786886) |
|
$ 55.08 | |||||
| 7 | WPW10273971 | Screw (Replaces: W10273971) |
|
Immediately | $ 6.80 | ||||
| 8 | WP285655 | Clamp, Hose (Replaces: W10142630) |
|
Immediately | $ 7.93 | ||||
| 9 | W10594147 | Hinge, Lid (left) |
|
$ 127.36 | |||||
| 10 | W11234069 | Dispenser, Bleach (white) (Replaces: W11171193) |
|
$ 93.82 | |||||
| 11 | W11237157 | Bezel, Lid Lock (white) (Replaces: W11187057) |
|
$ 27.55 | |||||
| 12 | W11168238 | Spacer, Lid Hinge (white) (Replaces: W10708964) |
|
Immediately | $ 16.63 | ||||
| 13 | WP90016 | Clip, Harness (Replaces: 90016) |
|
$ 10.70 | |||||
| 14 | W10810403 | Assembly, Lid Lock (white) (Replaces: W10787878) |
|
Immediately | $ 97.89 | ||||
| 15 | WP8564458 | Absorber, Impact (Replaces: 8564458) |
|
Immediately | $ 7.54 | ||||
| 16 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 17 | W10676680 | Cabinet (white) |
|
$ 366.17 | |||||
| 18 | W11695476 | Brace, Cabinet Top - Front (Replaces: W11172902) |
|
$ 71.81 | |||||
| 19 | W11712680 | Brace, Cabinet Top - Rear (Replaces: W10512626) |
|
$ 93.49 | |||||
| 20 | W11685943 | Screw (Replaces: W10660565) |
|
$ 13.47 | |||||
| 21 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 38.12 | ||||
| 22 | WPW10687506 | Foot Assembly, Leveling (Replaces: W10687506) |
|
Immediately | $ 23.46 | ||||
| 23 | W11417171 | Panel, Rear (Replaces: W10612644) |
|
$ 249.90 | |||||
| 24 | W11197416 | Absorber, Impact (Replaces: W10688364) |
|
Immediately | $ 21.04 | ||||
| 25 | WPW10249633 | Screw (Replaces: W10249633) |
|
Immediately | $ 6.80 | ||||
| 26 | W10676061 | Cover, Harness |
|
$ 33.09 | |||||
| 27 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.38 | ||||
| 28 | WPW10339879 | Tie, Cable (Replaces: W10339879) |
|
$ 7.47 | |||||
| 29 | W11244231 | Hose, Outer Drain Assembly (Replaces: W11203364) |
|
Immediately | $ 28.86 | ||||
| 30 | WPW10280024 | U-bend, Drain Hose (Replaces: W10280024) |
|
$ 75.16 | |||||
| 31 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 7.67 | ||||
| 32 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.72 | ||||
| 33 | WP313808 | Screw (Replaces: 311932) |
|
$ 7.47 | |||||
| 1A | W10894759 | Use & Care Guide |
|
- | |||||
| 1B | W10607408 | Tech Sheet |
|
- | |||||
| 1C | W11360539 | Energy Guide |
|
- | |||||
| 1D | W10900071 | Quick Start Guide |
|
- | |||||
| 9A | W10594148 | Hinge, Lid (right) |
|
$ 171.80 |
