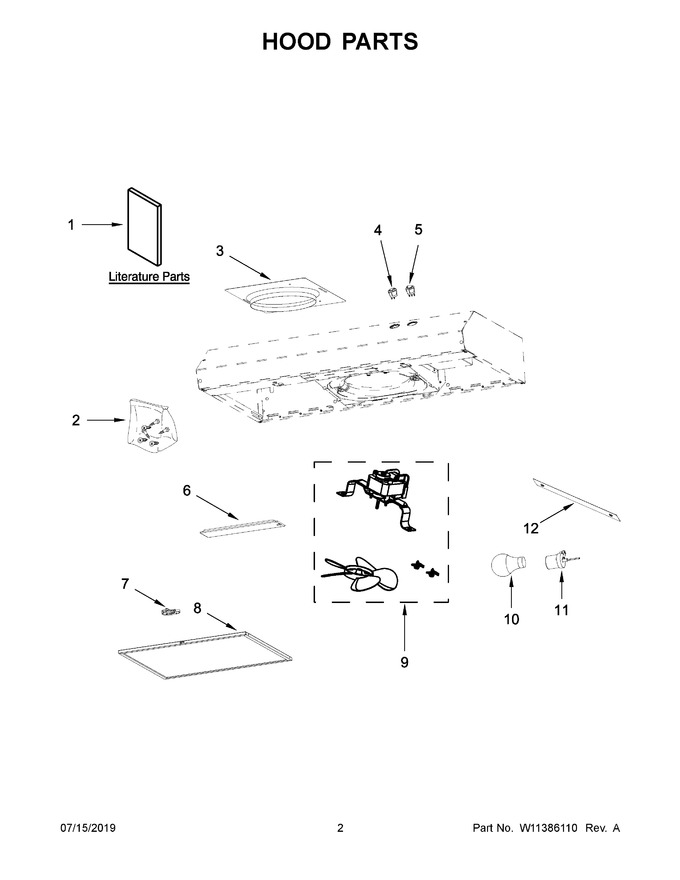

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11367653 | Use And Care Guide |
|
- | |||||
| 2 | W10665195 | Hardware, Installation |
|
$ 148.64 | |||||
| 3 | W10386343 | Plate, Duct |
|
$ 161.08 | |||||
| 4 | W10394523 | Switch, Light (white) |
|
- | |||||
| 5 | W10394557 | Switch, Fan (white) |
|
$ 74.80 | |||||
| 6 | W11369090 | Cover, Light |
|
$ 26.05 | |||||
| 7 | W10416841 | Latch, Filter |
|
$ 11.96 | |||||
| 8 | W11369459 | Filter, Grease (Replaces: W11369070) |
|
$ 74.32 | |||||
| 9 | WPW10395033 | Assembly, Motor And Fan (Replaces: W10395033) |
|
$ 309.81 | |||||
| 10 | W11371416 | Bulb, Led (Replaces: W11371110) |
|
- | |||||
| 11 | W11369077 | Socket, Light |
|
- | |||||
| 12 | W11360621 | Cover, Vent (white) |
|
- | |||||
| 12A | W11360619 | Cover, Vent (black) |
|
- | |||||
| 12B | W11847085 | Cover, Vent (stainless) (Replaces: W11360616) |
|
- | |||||
| 4A | W10394520 | Switch, Light (black) |
|
$ 78.98 | |||||
| 4B | W11369101 | Switch, Light (stainless) |
|
- | |||||
| 5A | W11740801 | Switch, Fan (black) (Replaces: W10394521) |
|
$ 22.47 | |||||
| 5B | W11369105 | Switch, Fan (stainless) |
|
- | |||||
| NI | W10613691 | Accessories, Power Cord Kit (Replaces: W10355452) |
|
$ 52.92 | |||||
| NI | W11371717 | Accessories, Recirculation Kit (charcoal Filter) |
|
Immediately | $ 90.29 |
