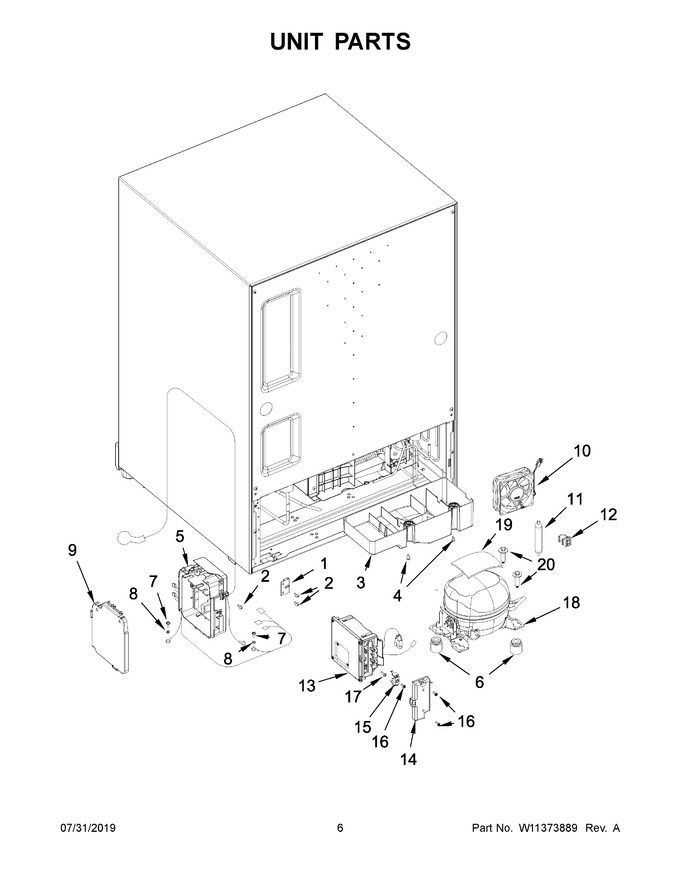

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10270517		Clamp, Cord				$ 71.56
2	W11371097		Screw		Appelez-nous	-
3	W11360241		Water Pan, Evaporator		Appelez-nous	-
4	W11375763		Screw		Appelez-nous	-
5	W11360243		Assembly, Pcb Box (includes Power Cord)				$ 482.69
6	W11360596		Mount, Compressor		Appelez-nous	-
7	4344826		Screw				$ 15.03
8	W11266077		Washer   (Replaces: W11265570)		Appelez-nous	-
9	W11313206		Cover Box, Pcb   (Replaces: W11265578)				$ 73.67
10	W11360536		Assembly, Fan Motor				$ 194.29
11	W10163273		Drier				$ 93.07
12	W11266075		Clamp   (Replaces: W11265569)		Appelez-nous	-
13	W11736794		Box, Ib   (Replaces: W11360589)				$ 616.16
14	W11360590		Cover, Side		Appelez-nous	-
15	W11360592		Stopper		Appelez-nous	-
16	W11375768		Screw		Appelez-nous	-
17	W11375770		Screw		Appelez-nous	-
18	W11360594		Compressor			Immediately	$ 596.70
19	W11596025		Compressor, Rubber   (Replaces: W11360595)				$ 34.44
20	W11375771		Bolt		Appelez-nous	-
NI	N/P		Refrigerant Charge R600a (1.834 Oz.)		Appelez-nous	-
