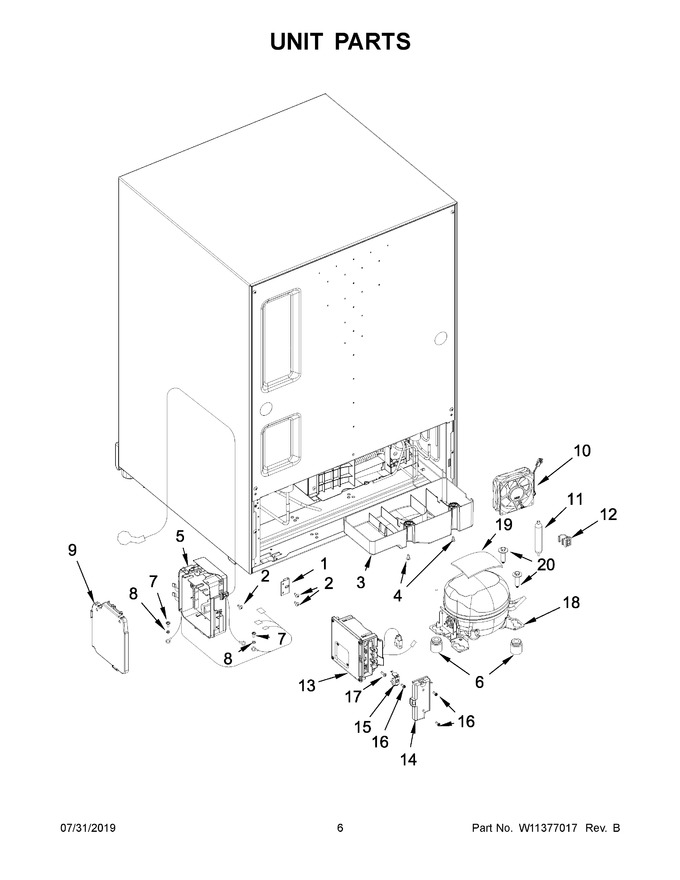

01 - Cover Sheet
02 - Cabinet Parts
03 - Door Parts
04 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10270517 | Clamp, Cord |
|
$ 71.56 | |||||
| 2 | W11371097 | Screw |
|
- | |||||
| 3 | W11360241 | Water Pan, Evaporator |
|
- | |||||
| 4 | W11375763 | Screw |
|
- | |||||
| 5 | W11693128 | Assembly, Pcb Box (includes Power Cord) (Replaces: W11376137) |
|
Immediately | $ 540.05 | ||||
| 6 | W11360596 | Mount, Compressor |
|
- | |||||
| 7 | 4344826 | Screw |
|
$ 15.03 | |||||
| 8 | W11266077 | Washer (Replaces: W11265570) |
|
- | |||||
| 9 | W11313206 | Cover Box, Pcb (Replaces: W11265578) |
|
$ 73.67 | |||||
| 10 | W11360536 | Assembly, Fan Motor |
|
$ 194.29 | |||||
| 11 | W10163273 | Drier |
|
$ 93.07 | |||||
| 12 | W11266075 | Clamp (Replaces: W11265569) |
|
- | |||||
| 13 | W11736794 | Box, Ib (Replaces: W11360589) |
|
$ 616.16 | |||||
| 14 | W11360590 | Cover, Side |
|
- | |||||
| 15 | W11360592 | Stopper |
|
- | |||||
| 16 | W11375768 | Screw |
|
- | |||||
| 17 | W11375770 | Screw |
|
- | |||||
| 18 | W11360594 | Compressor |
|
Immediately | $ 596.70 | ||||
| 19 | W11596025 | Compressor, Rubber (Replaces: W11360595) |
|
$ 34.44 | |||||
| 20 | W11375771 | Bolt |
|
- | |||||
| NI | N/P | Refrigerant Charge R600a (1.834 Oz.) |
|
- |
