01 - Cover Sheet

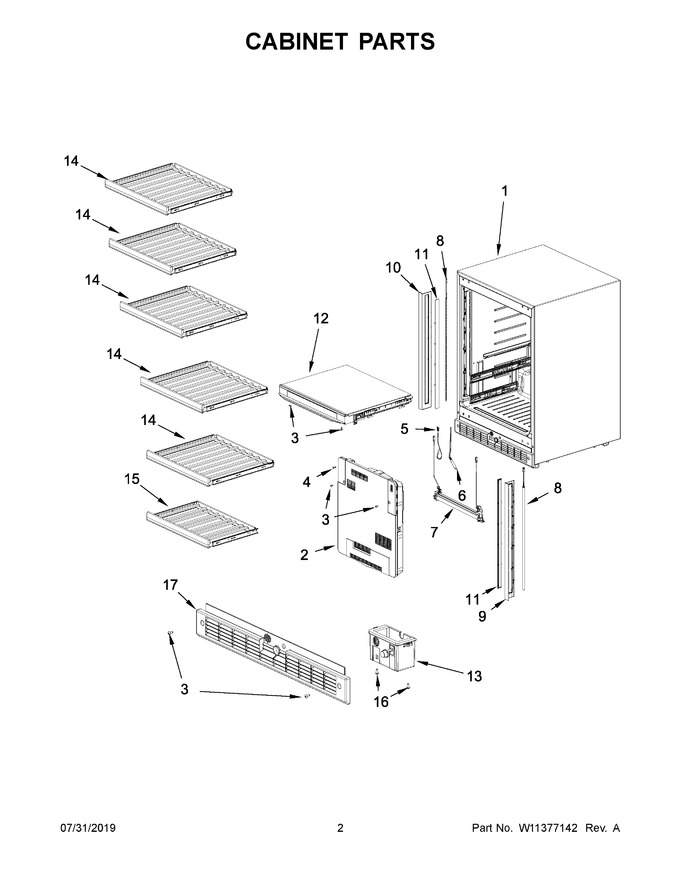

02 - Cabinet Parts


03 - Door Parts


04 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Cabinet (not A Service Part)		Appelez-nous	-
2	W11376127		Assembly, Evaporator Cover (includes Fan Motor, Damper And Sensor)				$ 392.73
3	W11675284		Screw   (Replaces: W11371095)				$ 14.35
4	W11375760		Screw		Appelez-nous	-
5	W11266076		Sensor, Defrost   (Replaces: W11263884)				$ 109.50
6	W11359415		Fuse, Temperature				$ 98.35
7	W11359416		Defrost Holder And Heater		Appelez-nous	-
8	W11359423		Assembly, Led				$ 184.58
9	W11359424		Cover, Led (right)				$ 98.12
10	W11395483		Cover, Led (left)   (Replaces: W11359425)				$ 90.87
11	W11359428		Cover, Led				$ 97.03
12	W11376132		Assembly, Separator				$ 420.07
13	W11359433		Assembly, Switch Box				$ 137.60
14	W11359429		Upper, Wine Rack				$ 363.79
15	W11359430		Lower, Wine Rack				$ 341.21
16	W11371097		Screw		Appelez-nous	-
17	W11360218		Kick, Plate				$ 109.15

    View Diagram in Separate Window       Print Part List
