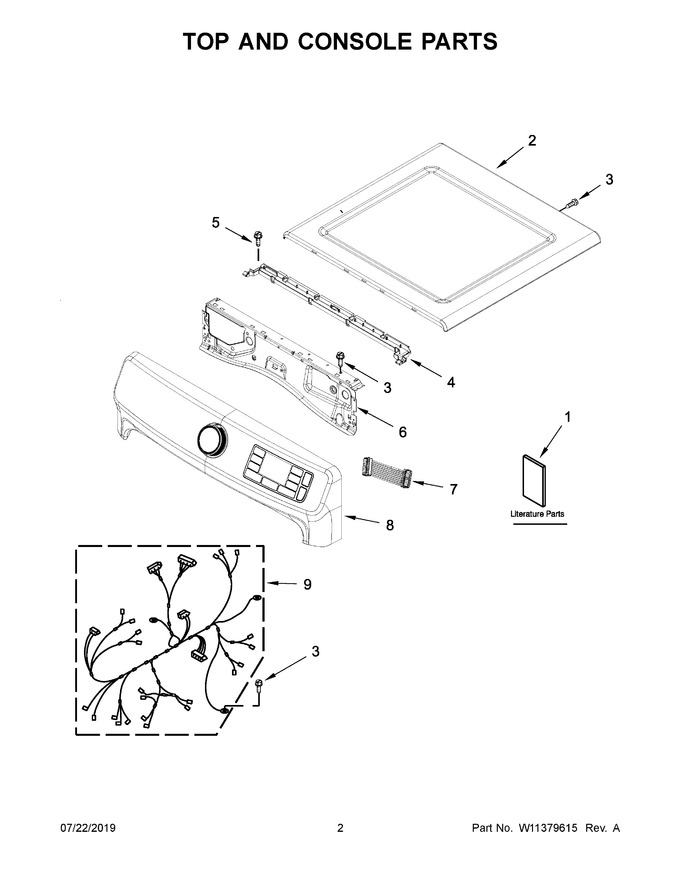

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11184585 | Use And Care Guide |
|
- | |||||
| 2 | WPW10208383 | Top (white) (Replaces: W10208383) |
|
$ 291.54 | |||||
| 3 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 4 | W11310027 | Channel, Water (Replaces: W11255768) |
|
$ 21.37 | |||||
| 5 | W11686675 | Screw (Replaces: 12990702) |
|
$ 12.84 | |||||
| 6 | W11480682 | Bracket, Console (Replaces: W10208198) |
|
$ 73.09 | |||||
| 7 | W11316625 | Jumper, Harness Hmi (board To Board) (Replaces: W10920818) |
|
$ 158.84 | |||||
| 8 | W11384511 | Assembly, Console (white) (Replaces: W11314476) |
|
$ 531.47 | |||||
| 9 | W11310055 | Harness, Wiring (main) (Replaces: W11109747) |
|
$ 223.62 | |||||
| 1A | W11184899 | Tech Sheet |
|
- | |||||
| 1B | W11183136 | Installation Instructions |
|
- | |||||
| 1C | W11241396 | Wiring Diagram |
|
- | |||||
| 1D | W11184894 | Quick Start Guide |
|
- | |||||
| 2A | WPW10460919 | Top (chrome Shadow) (Replaces: W10460919) |
|
$ 273.29 | |||||
| 8A | W11384512 | Assembly, Console (chrome Shadow) (Replaces: W11314479) |
|
$ 539.23 |
