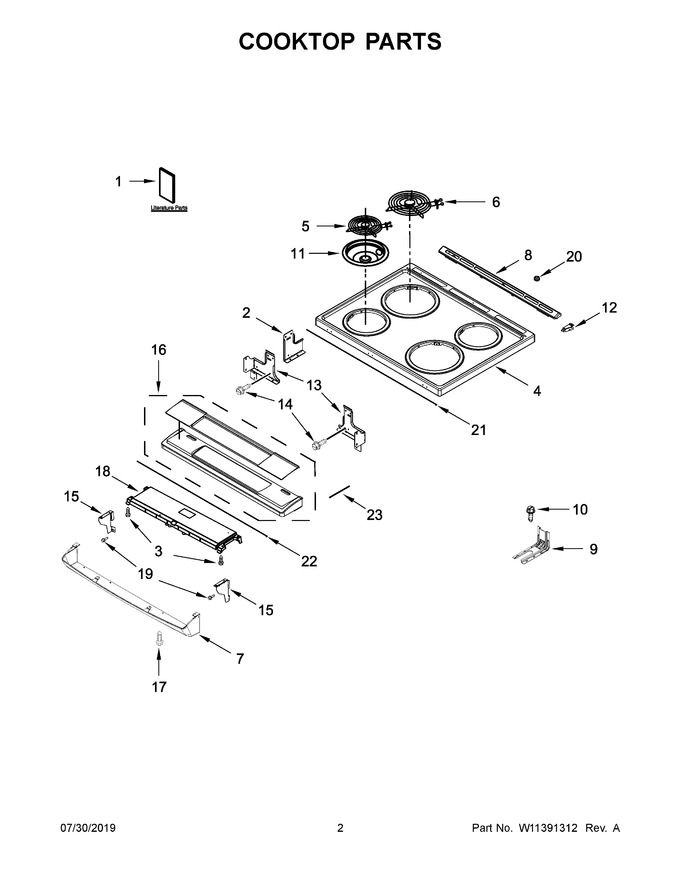

02 - Cooktop Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11047683 | Instructions, Installation |
|
- | |||||
| 2 | W10814305 | Bracket, Console (center) |
|
- | |||||
| 3 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 13.28 | ||||
| 4 | W10795408 | Cooktop (black) (Replaces: W10536327) |
|
- | |||||
| 5 | W11396792 | Element, Coil Heating (1500w) (left Front And Right Rear) (Replaces: W11364018) |
|
Immediately | $ 112.00 | ||||
| 6 | W11396790 | Element, Coil Heating (2400w) (right Front And Left Rear) (Replaces: W11364019) |
|
Immediately | $ 113.84 | ||||
| 7 | W10894124 | Panel, Front (black) (Replaces: W10816943) |
|
$ 504.32 | |||||
| 8 | W11240519 | Vent, Trim Top (black) (Replaces: W10636528) |
|
$ 141.47 | |||||
| 9 | W11502257 | Bracket, Anti-tip (Replaces: W10606241) |
|
Immediately | $ 20.73 | ||||
| 10 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 27.65 | |||||
| 11 | WPW10196405 | Bowl, Drip (8") (Replaces: W10196405) |
|
Immediately | $ 15.56 | ||||
| 12 | W10162253 | Brace, Corner (left) |
|
$ 66.72 | |||||
| 13 | W10814303 | Support, Cooktop (left) |
|
- | |||||
| 14 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 15 | W10547960 | Bracket, Console (left) |
|
$ 20.90 | |||||
| 16 | W10893944 | Console (black) (Replaces: W10825354) |
|
Immediately | $ 534.48 | ||||
| 17 | W10516115 | Screw |
|
$ 13.07 | |||||
| 18 | W10894095 | Electronic, Control (lcx) (Replaces: W10806886) |
|
$ 474.88 | |||||
| 19 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 20 | W11690600 | Bumper (Replaces: W10854253) |
|
Immediately | $ 13.42 | ||||
| 21 | W10802441 | Gasket, Console/ Cooktop (Replaces: W10612719) |
|
Immediately | $ 20.46 | ||||
| 22 | W10802457 | Gasket, Console (Replaces: W10689101) |
|
$ 19.20 | |||||
| 23 | W11744482 | Gasket, Console Short (Replaces: W10689102) |
|
$ 20.63 | |||||
| 11A | WPW10196406 | Bowl, Drip (6") (Replaces: W10196406) |
|
Immediately | $ 12.05 | ||||
| 12A | W10162252 | Brace, Corner (right) |
|
$ 70.73 | |||||
| 13A | W10814304 | Support, Cooktop (right) |
|
- | |||||
| 15A | W10547961 | Bracket, Console (right) |
|
$ 20.90 | |||||
| 16A | W10893945 | Console (white) (Replaces: W10825351) |
|
$ 533.44 | |||||
| 1A | W11235903 | Use And Care Guide |
|
- | |||||
| 1B | W11241247 | Wiring Diagram |
|
- | |||||
| 4A | W11487482 | Cooktop (white) (Replaces: W10536268) |
|
- | |||||
| 7A | W10894127 | Panel, Front (white) (Replaces: W10816942) |
|
Immediately | $ 482.27 | ||||
| 8A | W10636527 | Vent, Trim Top (white) |
|
$ 226.20 | |||||
| NI | W10664316 | Clip, Harness (cooktop) |
|
$ 18.87 | |||||
| NI | W11568999 | Harness, Main (Replaces: W11134665) |
|
- | |||||
| NI | W11244557 | Screw (grounding) (Replaces: 3196173) |
|
$ 12.86 | |||||
| NI | W11190435 | Harness, Cooktop |
|
$ 198.86 | |||||
| NI | W11226231 | Harness, Console |
|
- | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 18.48 | |||||
| NI | W10841090 | Clamp, Wire (Replaces: 7111P017-60) |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- |
