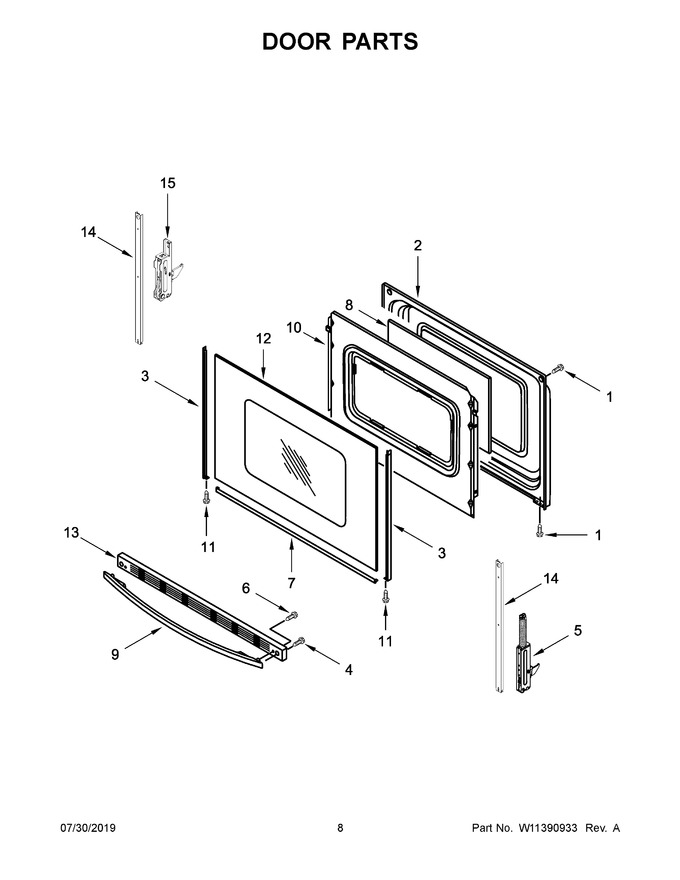

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 7.87
2	WP9761344		Liner, Door   (Replaces: 9761344)			Immediately	$ 335.60
3	W10761018		Trim, Door (black (left))   (Replaces: W10746436)			Immediately	$ 49.32
4	WPW10200660		Screw   (Replaces: W10200660)			Immediately	$ 7.42
5	WPW10299225		Hinge, Active   (Replaces: W10299225)			Immediately	$ 90.51
6	WPW10465148		Screw   (Replaces: W10465148)			Immediately	$ 7.91
7	WP8523177		Trim, Lower Door (black)   (Replaces: 8523177)				$ 149.27
8	W11399628		Glass, Inner   (Replaces: W10620754)				$ 154.51
9	W10300490		Handle, Oven Door (black)			Immediately	$ 174.67
10	W11685635		Retainer, Insulation   (Replaces: 9761505)				$ 169.46
11	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 7.92
12	WPW10409946		Glass, Window (black)   (Replaces: W10409946)				$ 287.33
13	WPW10310922		Trim, Oven Door Vent (black)   (Replaces: W10310922)			Immediately	$ 157.83
14	W11502236		Strap, Door   (Replaces: W10544179)			Immediately	$ 24.91
15	WPW10299227		Hinge, Door (passive)   (Replaces: W10299227)			Immediately	$ 63.67
12A	WPW10409945		Glass, Window (white)   (Replaces: W10409945)			Immediately	$ 245.12
13A	W10817433		Trim, Oven Door Vent (white)   (Replaces: W10310920)			Immediately	$ 162.27
3A	W10761014		Trim, Door (black (right))   (Replaces: W10746435)			Immediately	$ 65.66
3B	WP8523172		Trim, Door (white (left))   (Replaces: 8523172)			Immediately	$ 62.94
3C	WP8523166		Trim, Door (white (right))   (Replaces: 8523166)			Immediately	$ 75.81
7A	W11594186		Trim, Lower Door (white)   (Replaces: 8523175)			Immediately	$ 55.23
9A	W10300489		Handle, Oven Door (white)			Immediately	$ 220.39

    View Diagram in Separate Window       Print Part List
