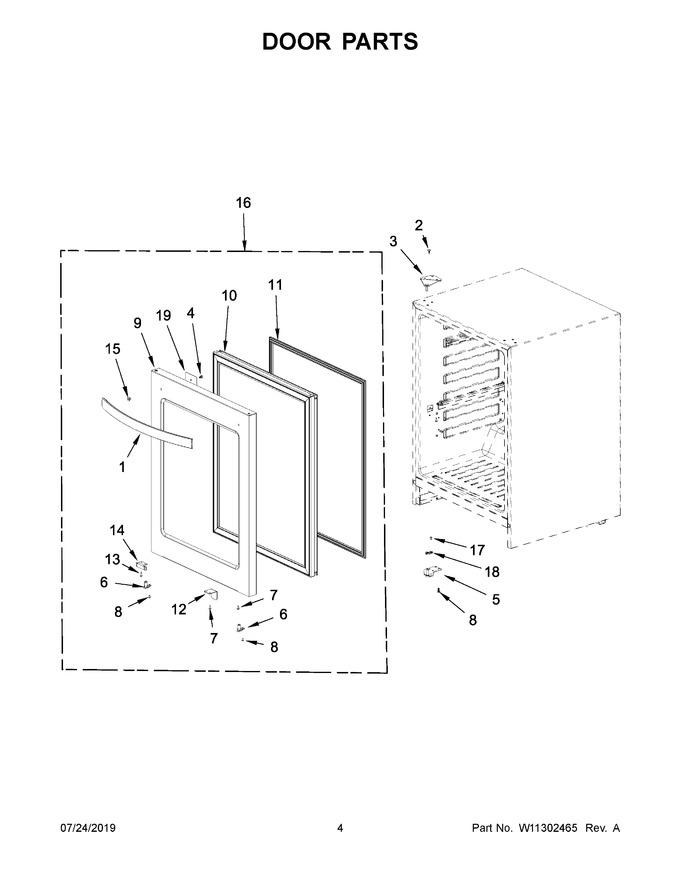

SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet Parts


03 - Door Parts


04 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11265408		Handle, Door   (Replaces: W11312691)		Appelez-nous	-
2	4344796		Screw				$ 15.14
3	W11264668		Hinge, Top   (Replaces: W11312622)				$ 67.89
4	W10319186		Screw		Appelez-nous	-
5	W11312624		Hinge, Bottom				$ 68.46
6	W11266079		Closer   (Replaces: W11265573)				$ 16.27
7	W11371097		Screw		Appelez-nous	-
8	W11371100		Screw		Appelez-nous	-
9	W11312684		Wrap, Door (stainless)		Appelez-nous	-
10	W11301448		Foam, Door		Appelez-nous	-
11	W11315259		Gasket, Door   (Replaces: W11312621)				$ 280.37
12	W11264669		Plate   (Replaces: W11312687)				$ 63.39
13	W11371345		Screw				$ 12.27
14	W11312648		Stopper, Door		Appelez-nous	-
15	W11179356		Stud, Mounting   (Replaces: W10772902)				$ 14.96
16	W11803128		Assembly, Door   (Replaces: W11369466)				$ 903.29
17	W10243123		Screw   (Replaces: W10797377)				$ 15.14
18	W11265406		Washer   (Replaces: W11264644)				$ 14.04
19	W11263339		Plate, Door Handle   (Replaces: W11312690)				$ 15.65

    View Diagram in Separate Window       Print Part List
