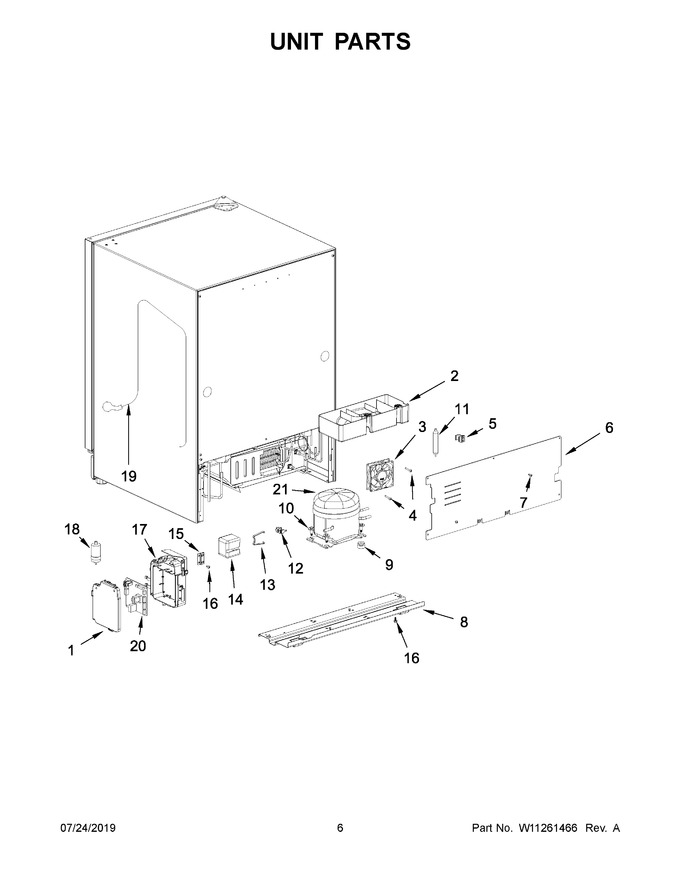

04 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11313206		Cover Box, Pcb   (Replaces: W11265578)				$ 73.67
2	W11264698		Pan, Drain		Appelez-nous	-
3	W11266081		Assembly, Fan Motor   (Replaces: W11265584)				$ 194.89
4	W11371341		Screw		Appelez-nous	-
5	W11266075		Clamp   (Replaces: W11265569)		Appelez-nous	-
6	W11264703		Cover, Rear		Appelez-nous	-
7	W11371097		Screw		Appelez-nous	-
8	W11264700		Cabinet Base Plate		Appelez-nous	-
9	WP4344779		Grommet, Compressor   (Replaces: 4344779)				$ 7.62
10	W10772873		Bolt, Compressor   (Replaces: 4344780)		Appelez-nous	-
11	W10163273		Drier				$ 93.07
12	W10778965		Overload Relay				$ 113.51
13	W10778971		Clip, Relay Cover		Appelez-nous	-
14	W10778967		Cover, Relay		Appelez-nous	-
15	W10270517		Clamp, Cord				$ 71.56
16	W11371100		Screw		Appelez-nous	-
17	W11313209		Pcb Box		Appelez-nous	-
18	W10778969		Running Capacitor				$ 117.83
19	W11265410		Cord, Power   (Replaces: W11264704)				$ 153.77
20	W11266080		Control,electronic   (Replaces: W11265579)		Appelez-nous	-
21	8201787		Compressor   (Replaces: 4344775)				$ 647.31
NI	N/P		Refrigerant Charge 4.5 Oz. (r-134a)		Appelez-nous	-
