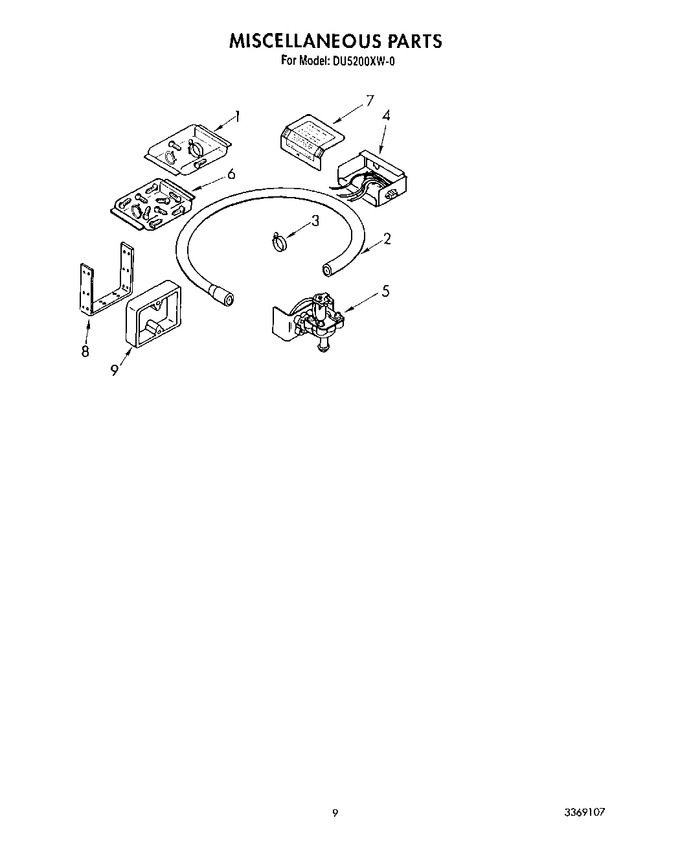

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3369085		Miscellaneous Parts Bag (includes 2 Screws & 2 Hose Clamps)		Appelez-nous	-
2	675544		Hose, Drain   (Replaces: 304626)			Immediately	$ 139.96
3	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
4	3369332		Terminal Block & Plug Assembly		Appelez-nous	-
5	3369074		Water Valve		Appelez-nous	-
6	3369333		Bag Assembly (loose Parts) (includes 1 Clamp & 12 Screws)		Appelez-nous	-
7	3369357		Cover Assembly, Terminal Box		Appelez-nous	-
8	3368986		Bracket, Utility		Appelez-nous	-
9	350942		Primer (white)   (Replaces: 206922)				$ 84.73
9	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
9	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
9	3369217		Mount, Terminal Box		Appelez-nous	-
9	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
9	285006		Paint, Spray 13 Oz. (black)				$ 53.90
9	350956		Paint, Spray 13 Oz. (almond)				$ 48.61
9	350941		Leveler (thinner)		Appelez-nous	-
9	978883		Almond (uncut)		Appelez-nous	-
9	799340		Black (uncut)		Appelez-nous	-
9	799640		Kit, Epoxy Patch (white)		Appelez-nous	-
9	675476		Vinyl Touch Up (blue)		Appelez-nous	-
9	675506		Tine Tip Repair Kit (blue-enough For Two Complete Dishracks)		Appelez-nous	-
	LIT3369539		Wiring Diagram		Appelez-nous	-
	LIT3369756		Template, Installation		Appelez-nous	-
	LIT3369289		Energy Guide		Appelez-nous	-
	LIT3369096		Guide, Use & Care		Appelez-nous	-
	LIT3369107		Parts List		Appelez-nous	-
	LIT3369088		Instructions, Installation		Appelez-nous	-
	LIT3369629		Instructions, Installation (utility)		Appelez-nous	-
	LIT3367007		Instructions, Installation (supplement) (locating Your Water Supply)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
