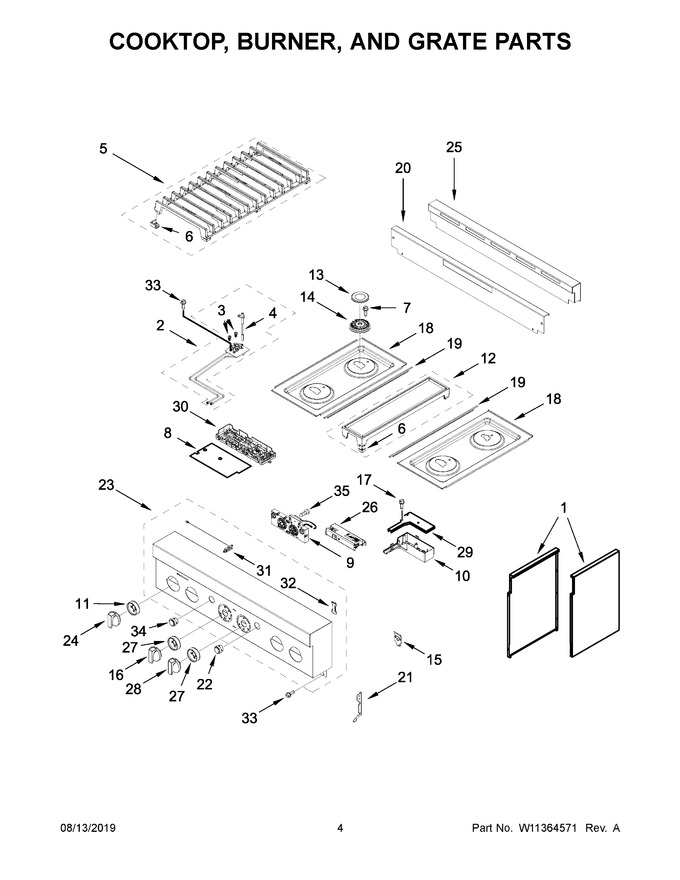

03 - Cooktop, Burner, And Grate Parts


04 - Chassis Parts


05 - Oven Parts


06 - Venting Parts


07 - Oven Door Parts


08 - Internal Oven Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11333179		Panel, Cabinet Side (left)   (Replaces: W11106881)				$ 377.72
2	W11333305		Assembly, Orifice Holder (left Front)   (Replaces: W10892793)				$ 112.85
3	W11643164		Orifice, Main (17.4k) (left Front)   (Replaces: W10892422)			Immediately	$ 58.69
4	W11573760		Igniter (left Front, Left Rear, Right Front)   (Replaces: W11238757)			Immediately	$ 21.13
5	W11516449		Assembly, Grate (black (left))   (Replaces: W11172289)				$ 238.55
6	W11550692		Bumper, Grate   (Replaces: W11042504)			Immediately	$ 11.31
7	W11766499		Screw   (Replaces: W11323260)			Immediately	$ 11.45
8	W11320149		Barrier, Appliance Manager   (Replaces: W11281269)				$ 117.51
9	W11356589		Interface, User   (Replaces: W11095712)				$ 516.55
10	W11320411		Cover, Wifi Outer   (Replaces: W11205795)		Appelez-nous	-
11	W11317889		Bezel, Cooktop (for 4 Cooktop Burners)   (Replaces: W11090284)				$ 96.18
12	W11516488		Kit, Grate Filler   (Replaces: W11172800)		Appelez-nous	-
13	W11328971		Cap, Burner (black (set Of 4))   (Replaces: W11121391)				$ 156.06
14	W11319683		Spreader, Flame (high) (left Front, Left Rear, Right Front)   (Replaces: W10891987)			Immediately	$ 225.62
15	W11318207		Spring Clip, Range   (Replaces: W11036559)				$ 11.59
16	W11397970		Knob, Oven Mode (stainless)   (Replaces: W11317854)				$ 147.89
17	W10709795		Screw   (Replaces: 7101P624-60)				$ 12.41
18	W11316700		Panel, Cooktop (black (left))   (Replaces: W11038237)				$ 451.81
19	W10271524		Trim, T-strip (black)				$ 191.11
20	W10323248		Insert, Island Trim				$ 241.20
21	W10130760		Bracket, Moving Console (left)				$ 68.35
22	W11319196		Button Assembly, Oven Start   (Replaces: W11090650)				$ 21.30
23	W11289589		Panel, Console   (Replaces: W11253776)				$ 645.95
24	W11317537		Knob, Burner (for 4 Cooktop Burners) (stainless)   (Replaces: W10887596)			Immediately	$ 157.68
25	W11183085		Trim, Island		Appelez-nous	-
26	W11234290		Assembly, Wifi Module   (Replaces: W11110768)				$ 161.90
27	W11317892		Bezel, Oven (for 2 Oven Knobs) (stainless)   (Replaces: W11042375)				$ 99.67
28	W11317539		Knob, Oven Temperature (stainless)   (Replaces: W10891868)				$ 138.80
29	W11320410		Cover, Wifi Inner   (Replaces: W11205794)		Appelez-nous	-
30	W11356591		Manager, Appliance (powermax)   (Replaces: W11100274)				$ 501.80
31	W11318855		Antenna, Wifi   (Replaces: W11130078)				$ 206.03
32	W11318856		Assembly, Light Pipe   (Replaces: W10896369)				$ 98.42
33	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
34	W11318857		Button Assembly, Oven Light   (Replaces: W11090651)				$ 21.43
35	WP3400814		Screw   (Replaces: 3400814)				$ 4.16
14A	W11319673		Spreader, Flame (low) (right Rear)   (Replaces: W10892022)			Immediately	$ 206.51
18A	W11333312		Panel, Cooktop (black (right))   (Replaces: W11038253)				$ 427.73
1A	W11333303		Panel, Cabinet Side (right)   (Replaces: W11106880)				$ 379.27
21A	W10130759		Bracket, Moving Console (right)				$ 68.35
2A	W11333306		Assembly, Orifice Holder (left Rear)   (Replaces: W10892494)			Immediately	$ 115.18
2B	W11333307		Assembly, Orifice Holder (right Front)   (Replaces: W10892475)			Immediately	$ 112.71
2C	W11333309		Assembly, Orifice Holder (right Rear)   (Replaces: W10892730)				$ 110.66
3A	W10892418		Orifice, Main (15.4k) (left Rear And Right Front)			Immediately	$ 92.73
3B	W10892440		Orifice, Main (7.2k) (right Rear)				$ 89.87
3C	W11661909		Orifice, Simmer (2.6k) (left Front, Left Rear, Right Front)   (Replaces: W10892435)			Immediately	$ 67.52
3D	W10892429		Orifice, Simmer (2.0k) (right Rear)				$ 89.87
4A	W11238756		Igniter (right Rear)			Immediately	$ 61.16
5A	W11516462		Assembly, Grate (black (right))   (Replaces: W11172625)				$ 238.56
