Body Parts
Control Panel & Cooktop
Door & Drawer Parts
Gas & Burner Parts
New Model Search:

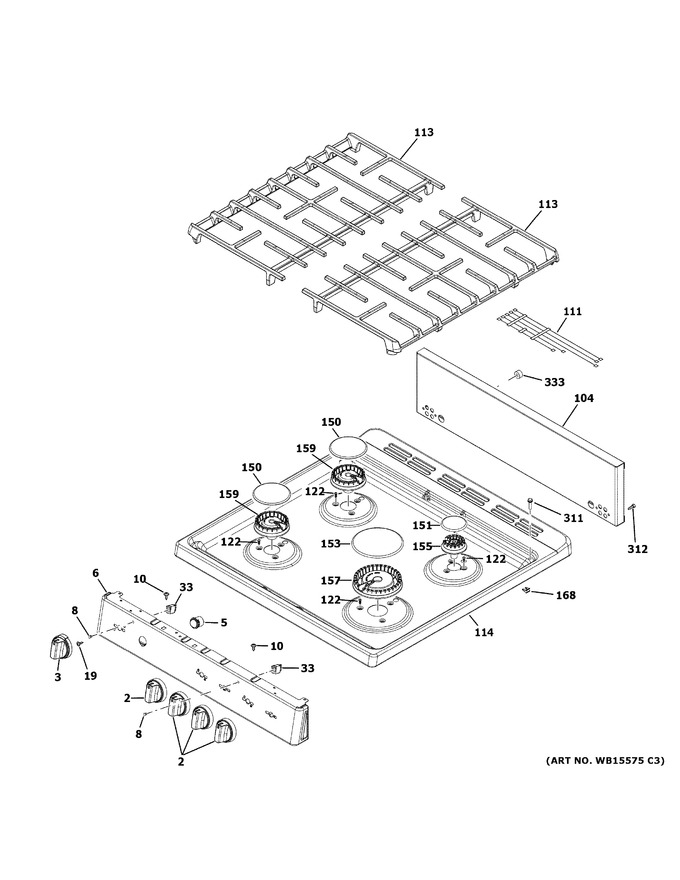

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WB03X30971 | Knob |
|
- | |||||
| 3 | WB03X30970 | Knob Asm |
|
- | |||||
| 5 | WB24X31927 | Switch |
|
- | |||||
| 6 | WB36X30986 | Manifold Panel |
|
- | |||||
| 8 | WS01L03789 | Lens (Replaces: WB25K10009) |
|
Immediately | $ 3.57 | ||||
| 10 | WB01T10009 | Screw 10-16 Shldr Type A |
|
- | |||||
| 19 | WB1K8 | Screw Thermostat |
|
- | |||||
| 33 | WS01F01702 | Light Indicator Pilot (Replaces: WB25K10010) |
|
$ 17.15 | |||||
| 104 | WB36X30951 | Backguard Range |
|
- | |||||
| 111 | WB18X30975 | Electrode Top & Harness Hv |
|
- | |||||
| 113 | WB31X30957 | Grate Top |
|
- | |||||
| 114 | WB62X31022 | Range Top & Insulation Asm |
|
- | |||||
| 122 | WB01X24735 | Ckt Screw |
|
- | |||||
| 150 | WS01F02536 | Asm Burner Cap (9500) (Replaces: WB29K10023) |
|
Immediately | $ 15.72 | ||||
| 151 | WB16X28654 | Asm. Cap, Burner Small V2 |
|
$ 28.45 | |||||
| 153 | WS01F02544 | Cap Burner Xl (Replaces: WB28K10222) |
|
Immediately | $ 16.59 | ||||
| 155 | WB16X24721 | Burner, Small V2 |
|
- | |||||
| 157 | WB16X24722 | Burner, Xl V2 |
|
- | |||||
| 159 | WB16X24724 | Burner, Medium V2 |
|
- | |||||
| 168 | WB02X24976 | Clip, Igniter V2 |
|
- | |||||
| 311 | WB02X24790 | Bumper |
|
- | |||||
| 312 | WS01A01151 | Screw (Replaces: WB01K10091) |
|
Immediately | $ 11.44 | ||||
| 333 | WB01K10020 | Spacer-handle |
|
- |
