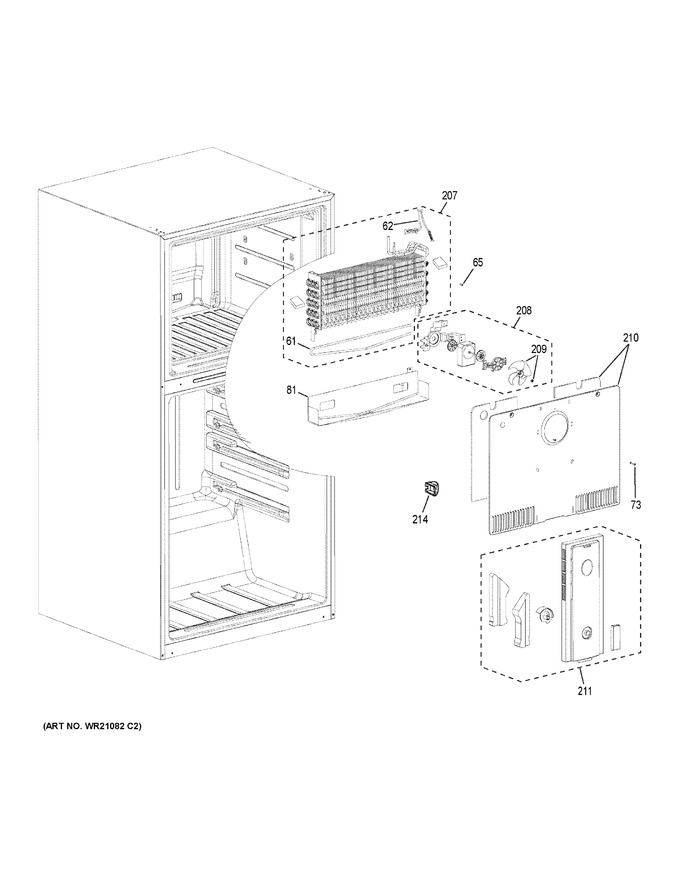

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 61 | WR09X24623 | Heater Def Asm |
|
- | |||||
| 62 | WR50X24624 | Thermostat Def |
|
- | |||||
| 65 | WR01X22680 | Screw |
|
- | |||||
| 73 | WR01X22823 | Painted Screw |
|
- | |||||
| 81 | WR02X22674 | Defrost Drain Tray |
|
- | |||||
| 207 | WR87X22675 | Evap & Tube Replct Asm |
|
- | |||||
| 208 | WR60X22677 | Fan Evap Asm |
|
- | |||||
| 209 | WR60X22678 | Blade Fan Evap Asm |
|
- | |||||
| 210 | WR13X22676 | Cover Evap Asm |
|
- | |||||
| 211 | WR02X22679 | Tower Air |
|
- | |||||
| 214 | WR02X11123 | Cover Im Receptacle |
|
- |
