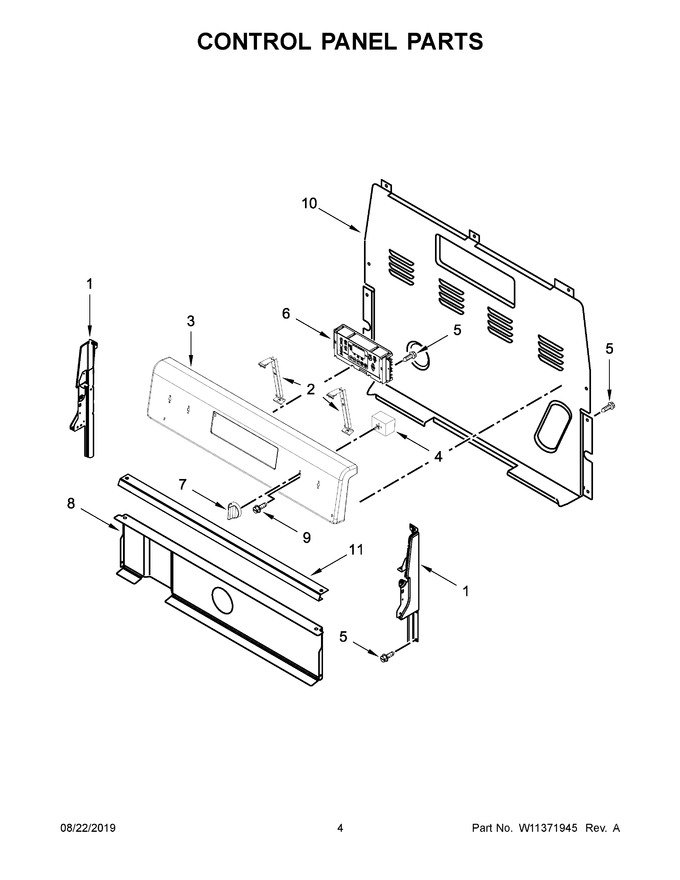

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219664		Endcap (black (left))   (Replaces: W11130372)			Immediately	$ 138.45
2	W11230932		Bracket, Control   (Replaces: W10695491)			Immediately	$ 76.33
3	W11175518		Console, Assembly (stainless)   (Replaces: W11027373)			Immediately	$ 433.72
4	WPW10434452		Switch, Infinite (dual) (left Front)   (Replaces: W10434452)			Immediately	$ 126.76
5	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
6	W11567368		Control, Electronic (lcx) (black)   (Replaces: W11204517)			Immediately	$ 302.90
7	W11158169		Knob (black)   (Replaces: W11022718)			Immediately	$ 72.02
8	W10134247		Shield, Heat			Immediately	$ 322.94
9	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 6.80
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 197.14
11	W10525121		Bracket, Console Mounting				$ 88.97
1A	W11219665		Endcap (black (right))   (Replaces: W11130379)			Immediately	$ 40.65
3A	W11372362		Console, Assembly (black Stainless)   (Replaces: W11344485)		Appelez-nous	-
4A	5500-287		Switch, Infinite (left Rear And Right Rear)   (Replaces: 3148951)			Immediately	$ 49.03
4B	WP3149400		Switch, Infinite (orange) (right Front)   (Replaces: 3148954)			Immediately	$ 81.46

    View Diagram in Separate Window       Print Part List
