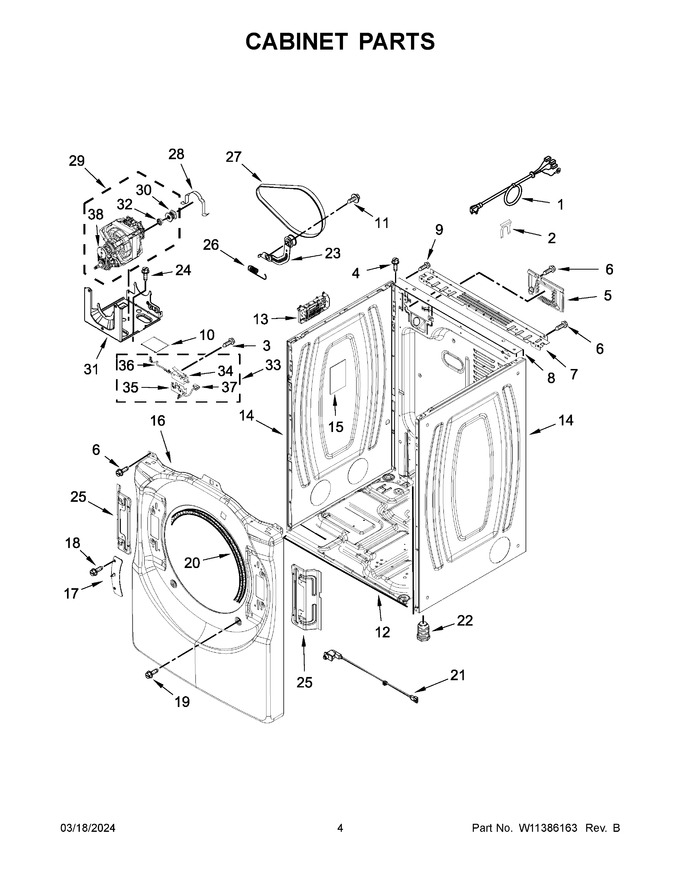

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11710615 | Cord, Power (Replaces: W10712173) |
|
Immediately | $ 82.21 | ||||
| 2 | W11712577 | Clip, Strain Relief (Replaces: 694415) |
|
Immediately | $ 6.99 | ||||
| 3 | WP98129 | Screw (Replaces: 98129) |
|
$ 7.36 | |||||
| 4 | WP489463 | Screw (Replaces: 489463) |
|
$ 7.43 | |||||
| 5 | WPW10316167 | Cover, Terminal Block (Replaces: W10316167) |
|
$ 93.64 | |||||
| 6 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 7 | WPW10208382 | Bracket, Rear (Replaces: W10208382) |
|
$ 41.56 | |||||
| 8 | W10487431 | Panel, Rear |
|
$ 171.29 | |||||
| 9 | W10850756 | Screw (Replaces: W10773242) |
|
$ 7.38 | |||||
| 10 | W11113654 | Pad, Sound (Replaces: W10836094) |
|
$ 20.96 | |||||
| 11 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 7.76 | |||||
| 12 | W11215531 | Base, Cabinet (Replaces: 8565046) |
|
$ 328.82 | |||||
| 13 | W11402102 | Appliance Control Unit (acu) (Replaces: W11389013) |
|
$ 441.15 | |||||
| 14 | W11233548 | Panel, Side (white) (Replaces: W11177568) |
|
$ 235.20 | |||||
| 15 | W11409002 | Pad, Foam (Replaces: W10504381) |
|
$ 21.38 | |||||
| 16 | W11310029 | Panel, Front (white) (Replaces: W11045946) |
|
$ 289.19 | |||||
| 17 | W11310031 | Strike, Door (Replaces: W11126752) |
|
$ 26.15 | |||||
| 18 | W11661566 | Screw (Replaces: W10288126) |
|
$ 13.26 | |||||
| 19 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.08 | ||||
| 20 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 29.24 | ||||
| 21 | W11427601 | Door Switch, Snap In (Replaces: W10569114) |
|
$ 68.88 | |||||
| 22 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 7.70 | ||||
| 23 | WPW10344192 | Assembly, Idler (Replaces: W10344192) |
|
Immediately | $ 85.11 | ||||
| 24 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 25 | W11310030 | Bracket, Hinge (Replaces: W11084215) |
|
$ 22.24 | |||||
| 26 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 23.22 | ||||
| 27 | 661570V | Belt, Drive (Replaces: 3387610) |
|
Immediately | $ 29.53 | ||||
| 28 | WPW10121316 | Clamp, Motor Mount (Replaces: W10121316) |
|
Immediately | $ 24.26 | ||||
| 29 | W11234001 | Assembly, Motor 60 Hz. (Replaces: W10396034) |
|
Immediately | $ 390.48 | ||||
| 30 | WP8066184 | Pulley, Motor (Replaces: 3394341) |
|
Immediately | $ 46.15 | ||||
| 31 | W11676491 | Bracket, Motor (Replaces: W10135695) |
|
$ 121.16 | |||||
| 32 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 125.17 | ||||
| 33 | W11247665 | Switch, Assembly (Replaces: W11233966) |
|
$ 24.95 | |||||
| 34 | WP8564010 | Assembly, Switch And Actuator (Replaces: 8564010) |
|
$ 93.70 | |||||
| 35 | W11247665 | Bracket, Switch (Replaces: W11159569) |
|
$ 24.95 | |||||
| 36 | W10167613 | Wire, Belt Switch |
|
- | |||||
| 37 | 8539892 | Wire, Motor To Belt Switch |
|
- | |||||
| 38 | WP3405160 | Belt, Drive (blower Wheel) (Replaces: 3405160) |
|
Immediately | $ 33.29 | ||||
| NI | 49621 | Foot, Optional (extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 7.70 | ||||
| NI | W10323246 | Kit, 4-way Vent |
|
Immediately | $ 80.96 |
