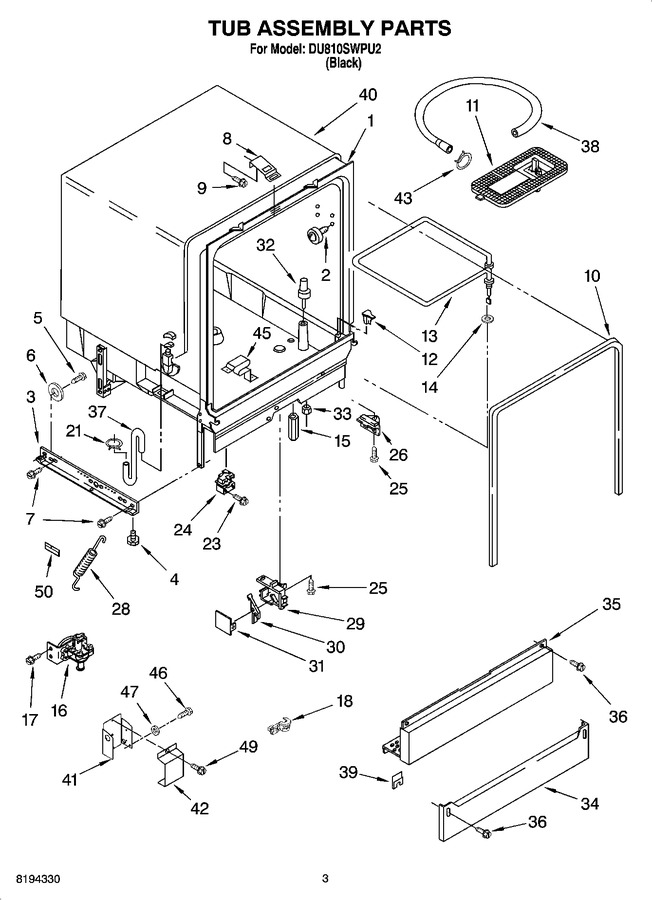

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8533815		Tub Assembly		Appelez-nous	-
2	WP8528831		Tub, Wheel Assembly (8)   (Replaces: 8528831)			Immediately	$ 17.62
3	3368933		Runner (2)				$ 15.85
4	8193716		Leveler (2)   (Replaces: 3374849)				$ 80.06
5	3370389		Screw, Shoulder				$ 5.70
6	302819		Wheel (2)				$ 5.65
7	WP681414		Screw,   (Replaces: 343641)			Immediately	$ 7.62
8	3378149		Plate, Latch				$ 44.37
9	3374720		Screw				$ 28.23
10	WPW10509257		Gasket   (Replaces: 3376927)			Immediately	$ 68.27
11	WP3369322		Grate   (Replaces: 3369322)				$ 89.15
12	WP8528862		Deflector (2)   (Replaces: 8528862)				$ 69.04
13	WPW10082894		Heater (includes Item 14)   (Replaces: 8519827)				$ 127.37
14	WP717273		Washer, Rubber (2)   (Replaces: 717273)			Immediately	$ 6.80
15	WPW10477552		Nut (2) (heater Terminal)   (Replaces: 8268548)			Immediately	$ 7.41
16	W10844024		Water Valve   (Replaces: 8283345)			Immediately	$ 86.67
17	WP489069		Screw   (Replaces: 304392)			Immediately	$ 7.56
18	W11384788		Strain, Relief   (Replaces: 8573061)				$ 20.33
21	WP596669		Clamp   (Replaces: 301958)			Immediately	$ 7.94
23	WP489128		Screw   (Replaces: 3370225)				$ 10.26
24	W10102260		Relay   (Replaces: 3369063)				$ 128.76
25	WP304231		Screw,   (Replaces: 304231)			Immediately	$ 7.33
26	WP3368928		Fuse, Thermal   (Replaces: 3368928)			Immediately	$ 73.41
28	3373228		Spring, Door (2)				$ 24.53
29	8318218		Housing, Float Switch				$ 46.38
30	3369067		Switch, Float		Appelez-nous	-
31	8318219		Cover, Switch Housing				$ 14.53
32	WP8519552		Float   (Replaces: 8519552)				$ 112.43
33	717488		Nut				$ 12.83
34	3368942		Toe, Panel		Appelez-nous	-
35	3374730		Panel, Access W/clip Assembly (includes Item 39)				$ 68.75
36	WP302868		Screw   (Replaces: 302868)			Immediately	$ 7.36
37	3369414		Hose, Inlet		Appelez-nous	-
38	WP3374077		Drain Hose   (Replaces: 3374077)			Immediately	$ 92.01
39	3378123		Clip, Grounding				$ 7.79
40	W11086533		Sound Shield   (Replaces: 8531031)			Immediately	$ 28.17
41	8573951		Terminal Box				$ 6.33
42	300068		Cover Assembly Terminal Box				$ 30.14
43	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
45	3379740		Support, Heater				$ 51.56
46	WP3400014		Screw   (Replaces: 3400014)				$ 7.42
47	WP3378128		Washer   (Replaces: 3378128)				$ 10.63
49	3369138		Screw				$ 5.81
50	8052018		Friction Pad		Appelez-nous	-
