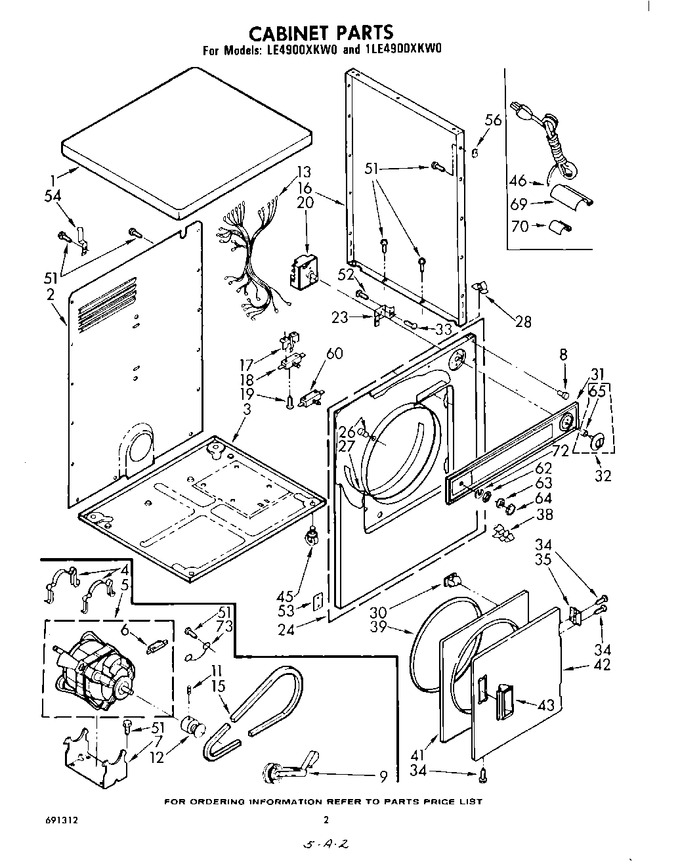

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 345703 | Top (white) |
|
$ 235.42 | |||||
| 1 | 689252 | Top (new Avocado) |
|
- | |||||
| 1 | 689251 | Top (coffee) |
|
- | |||||
| 1 | 689250 | Top (almond) |
|
- | |||||
| 1 | 689253 | Top (new Gold) |
|
- | |||||
| 2 | 689279 | Panel, Rear (coffee) |
|
- | |||||
| 2 | 280048 | Panel, Rear (white) (Replaces: 347812) |
|
$ 269.48 | |||||
| 2 | 689278 | Panel, Rear (almond) |
|
- | |||||
| 2 | 689280 | Panel, Rear (new Avocado) |
|
- | |||||
| 2 | 689281 | Panel, Rear (new Gold) |
|
- | |||||
| 3 | WP348726 | Base Assembly (Replaces: 348726) |
|
$ 262.94 | |||||
| 4 | WP660658 | Clip, Motor (alternate) (Replaces: 343481) |
|
$ 7.40 | |||||
| 4 | WP660658 | Clip, Motor (alternate) (Replaces: 685441) |
|
$ 7.40 | |||||
| 5 | 279827 | Motor Assembly (60 Hz. (alternate)) (Replaces: 690870) |
|
Immediately | $ 195.48 | ||||
| 5 | 279827 | Motor Assembly (60 Hz. (alternate)) (Replaces: 689788) |
|
Immediately | $ 195.48 | ||||
| 6 | 279827 | Switch ((use W/689788 Motor)) (Replaces: 349588) |
|
Immediately | $ 195.48 | ||||
| 6 | 279827 | Switch (use W/689870 Motor) (Replaces: 337351) |
|
Immediately | $ 195.48 | ||||
| 7 | 696541 | Base, Motor (Replaces: 346846) |
|
$ 88.07 | |||||
| 8 | 356388 | Rivet |
|
- | |||||
| 9 | WP691366 | Idler & Pulley Assembly (Replaces: 688166) |
|
Immediately | $ 20.22 | ||||
| 11 | 690046 | Set Screw |
|
- | |||||
| 12 | 347260 | Pulley, 60 Hz. (includes Illus. 11) |
|
- | |||||
| 13 | 690325 | Harness, Wiring |
|
- | |||||
| 15 | 3394652 | Belt, Drive (Replaces: 345675) |
|
Immediately | $ 47.09 | ||||
| 16 | 689448 | Panel, Side (new Gold) |
|
- | |||||
| 16 | 689445 | Panel, Side (almond) |
|
- | |||||
| 16 | 689446 | Panel, Side (coffee) |
|
- | |||||
| 16 | 689447 | Panel, Side (new Avocado) |
|
- | |||||
| 16 | 348705 | Panel, Side (white) |
|
$ 115.02 | |||||
| 17 | WP691581 | Lever, Door Switch (Replaces: 295998) |
|
Immediately | $ 7.64 | ||||
| 18 | W10820036 | Switch, Door (Replaces: 347207) |
|
Immediately | $ 27.45 | ||||
| 19 | WP98129 | Screw, 6-20 X 1-3/8 (Replaces: 98129) |
|
$ 7.36 | |||||
| 20 | 690621 | Timer, 60 Hz. |
|
- | |||||
| 23 | 348171 | Bracket, Timer |
|
- | |||||
| 24 | 691489 | Xfront Panel Assembly (new Avocado) |
|
- | |||||
| 24 | 691487 | Xfront Panel Assembly (almond) |
|
- | |||||
| 24 | 691488 | Xfront Panel Assembly (coffee) |
|
- | |||||
| 24 | 691486 | Xfront Panel Assembly (white) |
|
- | |||||
| 24 | 691490 | Xfront Panel Assembly (new Gold) |
|
- | |||||
| 26 | 279220 | Clip, Felt Pad (2) (Replaces: 685203) |
|
$ 21.20 | |||||
| 27 | 279264 | Seal & Bearing Assembly (Replaces: 349462) |
|
Immediately | $ 76.91 | ||||
| 28 | WP345670 | Lock, Top (2) (Replaces: 345670) |
|
Immediately | $ 7.28 | ||||
| 30 | 279570 | Catch, Door Assembly (Replaces: 690081) |
|
Immediately | $ 8.00 | ||||
| 31 | 688958 | Panel, Control |
|
- | |||||
| 32 | 688962 | Knob & Skirt Assembly |
|
- | |||||
| 33 | W11808444 | Screw, 8-32 X 5/16 (2) (Replaces: 98139) |
|
- | |||||
| 34 | 689791 | Screw |
|
- | |||||
| 35 | WP348023 | Hinge & Pin Assembly (2) (Replaces: 348023) |
|
$ 8.39 | |||||
| 38 | 279570 | Strike, Panel (Replaces: 690082) |
|
Immediately | $ 8.00 | ||||
| 39 | W11613302 | Seal, Door (Replaces: 685763) |
|
$ 50.68 | |||||
| 41 | 280077 | Door, Rear (almond) (Replaces: 689274) |
|
$ 186.71 | |||||
| 41 | 280077 | Door, Rear (new Avocado) (Replaces: 689276) |
|
$ 186.71 | |||||
| 41 | 280077 | Door, Rear (coffee) (Replaces: 689275) |
|
$ 186.71 | |||||
| 41 | 280077 | Door, Rear (new Gold) (Replaces: 689277) |
|
$ 186.71 | |||||
| 41 | 280077 | Door, Rear (white) (Replaces: 348201) |
|
$ 186.71 | |||||
| 42 | 689318 | Door, Front (new Avocado) |
|
- | |||||
| 42 | 689319 | Door, Front (new Gold) |
|
- | |||||
| 42 | 689314 | Door, Front (almond) |
|
- | |||||
| 42 | WP348205 | Door, Front (white) (Replaces: 348205) |
|
Immediately | $ 139.28 | ||||
| 42 | 689315 | Door, Front (coffee) |
|
- | |||||
| 43 | 689307 | Handle, Door (coffee) |
|
- | |||||
| 43 | 689584 | Handle, Door (new Gold) |
|
- | |||||
| 43 | WP686711 | Handle, Door (white) (Replaces: 686715) |
|
Immediately | $ 7.52 | ||||
| 43 | 689306 | Handle, Door (almond) |
|
- | |||||
| 43 | 689583 | Handle, Door (new Avocado) |
|
- | |||||
| 45 | 279127 | Caster (4) (alternate) (Replaces: 349999) |
|
$ 69.72 | |||||
| 45 | 279127 | Caster (4) (alternate) (Replaces: 688055) |
|
$ 69.72 | |||||
| 46 | 349658 | Cord, Power |
|
- | |||||
| 51 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 52 | WP90767 | Screw (Replaces: 339527) |
|
Immediately | $ 7.43 | ||||
| 53 | W10854425 | Clip (2) (Replaces: 237823) |
|
Immediately | $ 14.71 | ||||
| 54 | 345790 | Bracket, Power Cord (2) |
|
- | |||||
| 56 | WP98234 | Clip, Ground (2) (Replaces: 98234) |
|
Immediately | $ 10.76 | ||||
| 60 | 689038 | Switch, Push-to-start |
|
- | |||||
| 62 | 90891 | Nut, Hex |
|
- | |||||
| 63 | 345530 | Ring, Trim |
|
- | |||||
| 64 | 688041 | Nut, Knurled |
|
- | |||||
| 65 | WP688805 | Clip, Control Knob (Replaces: 688805) |
|
Immediately | $ 7.38 | ||||
| 69 | 686769 | Protector, Support (16``) |
|
- | |||||
| 70 | 686767 | Protector, Support (7``) |
|
- | |||||
| 72 | 688193 | Lockwasher |
|
- | |||||
| 73 | 687261 | Wire, Ground (motor) |
|
- |
