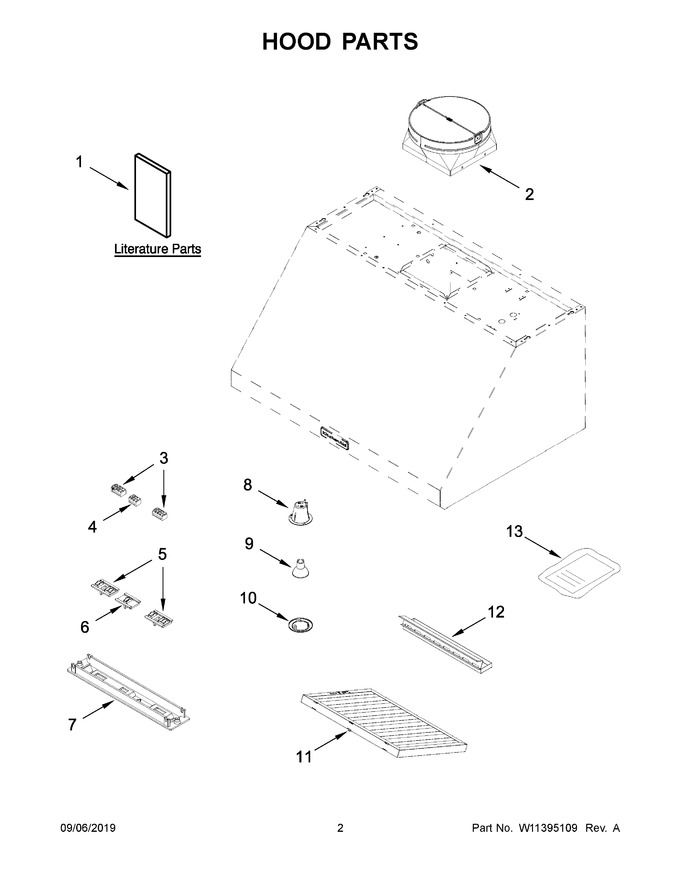

02 - Hood Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11374532		Owners Manual		Appelez-nous	-
2	W11156393		Assembly, Damper   (Replaces: W10351926)				$ 192.85
3	W10853393		Switch, Rocker (motor)   (Replaces: W10351916)			Immediately	$ 207.34
4	W11193832		Switch, Rocker (on/off)   (Replaces: W10351915)				$ 194.04
5	W11569415		Slider, Switch   (Replaces: W11397923)			Immediately	$ 27.28
6	W11662407		Slider, Switch   (Replaces: W11397924)			Immediately	$ 38.09
7	W11387938		Panel, Switch   (Replaces: W11360634)			Immediately	$ 150.76
8	WPW10370558		Socket, Light   (Replaces: W10370558)				$ 78.69
9	W11800238		Lamp, Led   (Replaces: W11388445)			Immediately	$ 78.87
10	W10351924		Bezel, Lamp				$ 177.83
11	W10351892		Filter, Grease (36" Model Only)				$ 242.68
12	W10294011		Tray, Grease (36" Model Only)				$ 287.84
13	W10351930		Hardware, Install				$ 65.82
11A	WPW10351929		Filter, Grease (48" Model Only)   (Replaces: W10351929)				$ 188.92
12A	W10294022		Tray, Grease (48" Model Only)				$ 318.49
NI	W10352735		Accessories Kit, Backsplash, 36" Without Shelf				$ 655.15
NI	W10285449		Accessories Kit, Backsplash, 48" With Shelves				$ 473.10
NI	W10285448		Accessories Kit, Backsplash, 36" With Shelves			Immediately	$ 417.54
NI	W10352736		Accessories Kit, Backsplash, 48" Without Shelf				$ 621.74
NI	W10225948		Accessories Kit, Backsplash, 48" With Solid Shelf		Appelez-nous	-
NI	W10225949		Accessories Kit, Backsplash, 36" With Solid Shelf				$ 1,836.82
