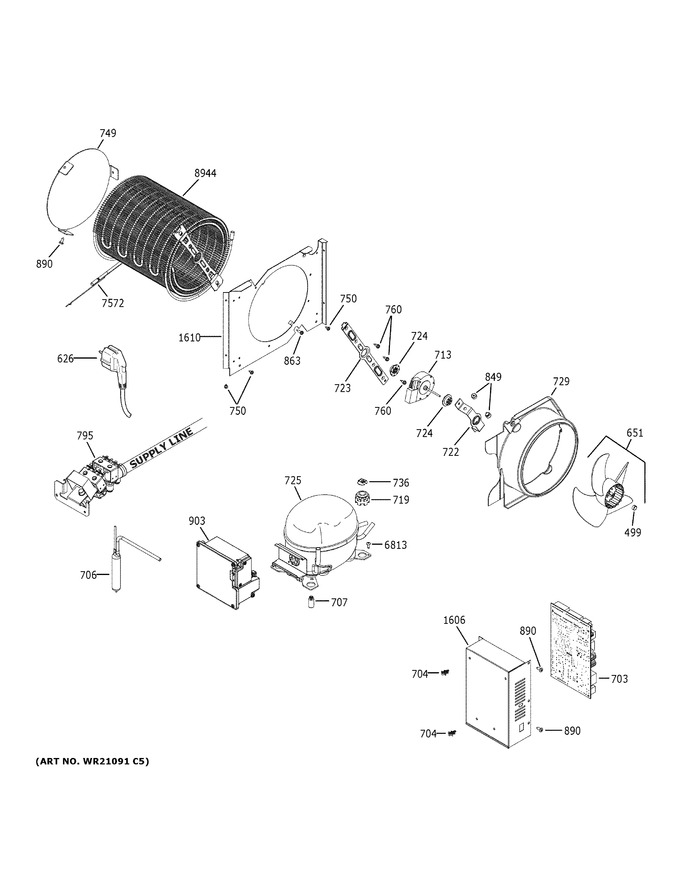

Machine Compartment


Shelves & Drawers


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
499	WG03F01616		Ring Compression   (Replaces: WR02X12149)				$ 3.57
626	WR55X29405		Power Cord		Appelez-nous	-
651	WR01F02003		Blade Cond Fan Asm   (Replaces: WR60X10206)				$ 10.36
703	WR55X28659		Board Asm Main Control		Appelez-nous	-
703	WR55X42067		Mainboard Assembly		Appelez-nous	-
704	WR02X29169		Main Board Stand Off		Appelez-nous	-
706	WR86X10030		Dryer Bifurcated Hx9		Appelez-nous	-
707	WR1X1779		Stud Mtg Compr		Appelez-nous	-
713	WR60X10216		Motor Dc Cond Fan		Appelez-nous	-
719	WR01F00846		Grommet   (Replaces: WR02X10099)				$ 7.15
722	WG03F00071		Bracket Cond Fan (mtg)   (Replaces: WR02X11863)			Immediately	$ 24.30
723	WR02X10593		Bracket Cond Fan (rear)		Appelez-nous	-
724	WR01A00315		Grommet Fan Motor   (Replaces: WR02X10520)				$ 3.75
725	WR87X24183		Inverter Compressor Emb		Appelez-nous	-
729	WR17X11252		Shroud Condenser		Appelez-nous	-
736	WR2X8203		Clip Compressor Mount		Appelez-nous	-
749	WR17X10694		Baffle Cond Air		Appelez-nous	-
750	WR1X1826		#8-18 Type Ab X 3/8 Ph P		Appelez-nous	-
760	WR01X10317		Scr 8-32 Ca Hxw 1/2		Appelez-nous	-
795	WG03F00070		Bracket And Valve Asm   (Replaces: WR57X10084)				$ 150.71
849	WR01A00163		Bumper   (Replaces: WR02X10540)			Immediately	$ 5.72
863	WR01X10652		Scr 8-18 Ab Ihw 5/8 S		Appelez-nous	-
890	WG04A01239		#10x1\2 Ph Sms   (Replaces: WD2X295)				$ 3.57
903	WR87X29409		Compressor Inverter		Appelez-nous	-
1606	WR02X29407		Main Control Board Cover		Appelez-nous	-
1610	WR17X12350		Cond Baffle		Appelez-nous	-
6813	WR01X10484		8-32 X 5/8" Ph Ss Tcs		Appelez-nous	-
7572	WR86X23359		Tube Suction & Cap Asm		Appelez-nous	-
8944	WR84X10090		Condenser & Bracket Asm		Appelez-nous	-
