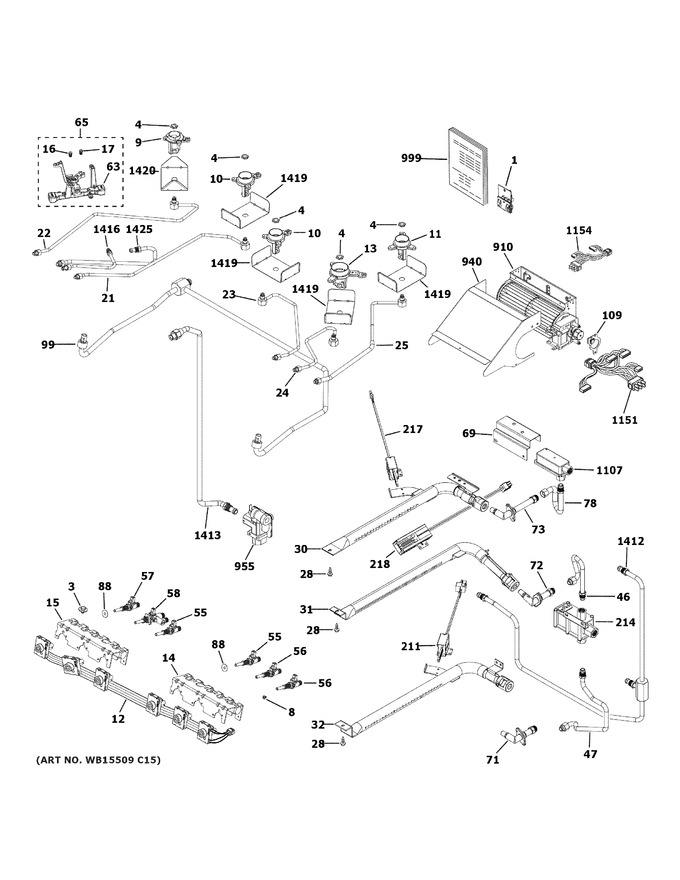

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	295D2744P008		Label Wire Diagram		Appelez-nous	-
1	WB28X29255		Kit Lp High Altitude Asm		Appelez-nous	-
1	WB28X29254		Kit Ng High Altitude Asm		Appelez-nous	-
1	WB28X28133		Kit Lp Conversion Asm		Appelez-nous	-
3	WB01K10067		Scr 8 Hd 1/4 - 20		Appelez-nous	-
4	WS01A01130		Economic Nut   (Replaces: WB01K10037)			Immediately	$ 14.65
8	WS01A01212		Screw 8-32   (Replaces: WB01K10002)				$ 79.32
9	WB02X24728		Injet, Small V2		Appelez-nous	-
10	WB02X24727		Injet, Medium V2		Appelez-nous	-
11	WB02X24726		Injet, Large V2		Appelez-nous	-
12	WB18X28758		Harness Switches		Appelez-nous	-
13	WB02X24725		Injet, Xl V2		Appelez-nous	-
14	WB28X28202		Manifold Pipe Asm		Appelez-nous	-
15	WB28X28203		Manifold Pipe Asm		Appelez-nous	-
16	WB28X28843		Orifice Spud Ng		Appelez-nous	-
17	WB28X29600		Orifice Spud		Appelez-nous	-
21	WB16X28685		Cr Orifice Holder		Appelez-nous	-
22	WB28X28141		Lr Orifice Holder		Appelez-nous	-
23	WB13X28673		Cf Orifice Holder		Appelez-nous	-
24	WB28X28846		Rf Orifice Holder		Appelez-nous	-
25	WB28X28148		Rr Orifice Holder		Appelez-nous	-
28	WB1K50		Screw Mtg Igniter		Appelez-nous	-
30	WB16X28249		Burner Bake		Appelez-nous	-
31	WB16X28251		Burner Broil		Appelez-nous	-
32	WB16X28670		Burner Bake		Appelez-nous	-
46	WB28X28164		Tube Valve Safety		Appelez-nous	-
47	WB28X28152		Tube Lower Bake Supply		Appelez-nous	-
55	WS01F06059		Valve Burner 270   (Replaces: WB21X20470)			Immediately	$ 20.28
56	WB21X20612		Valve Burner 270		Appelez-nous	-
57	WB21X25979		Valve Burner 270		Appelez-nous	-
58	WB21X28821		Valve Burner 3r 310		Appelez-nous	-
63	WB16X28863		Injet Mrhob		Appelez-nous	-
65	WB16X28867		Inject Burner Mrhob Asm		Appelez-nous	-
69	WB02K10325		Support Valve Single		Appelez-nous	-
71	WB28X20451		Elbow 90 Asm		Appelez-nous	-
72	WB28X28696		Elbow 90 Asm		Appelez-nous	-
73	WB28X28695		Elbow 90 Asm		Appelez-nous	-
78	WB28X28163		Tube Upper Bake Supply		Appelez-nous	-
88	WB02X28680		Cover Valve		Appelez-nous	-
99	WB28X28157		Tube Manifold Supply		Appelez-nous	-
109	WB27X28659		Board Sensor		Appelez-nous	-
211	WB13X25633		Igniter Glowbar		Appelez-nous	-
211	WB28X28781		Igniter Glowbar		Appelez-nous	-
214	WB21X28835		Safety Valve Dual		Appelez-nous	-
217	WB28X28781		Igniter Glowbar		Appelez-nous	-
217	WB13X25633		Igniter Glowbar		Appelez-nous	-
218	WB28X28780		Igniter Glowbar		Appelez-nous	-
910	WB26X32571		Blower Tangential		Appelez-nous	-
940	WB34X28735		Fan Support		Appelez-nous	-
955	WB19K10077		Pressure Regulator		Appelez-nous	-
999	31-11013		Pm Wi Fi Instructions		Appelez-nous	-
999	31-11086		Pm Install Instructions		Appelez-nous	-
999	31-11056		Pm Install Instructions		Appelez-nous	-
999	49-85254		Pm Quick Guide		Appelez-nous	-
999	31-17272		Pm Manual Mini & Wd Asm		Appelez-nous	-
1107	WB21X28836		Safety Valve Single		Appelez-nous	-
1151	WB18X28899		Harness Main		Appelez-nous	-
1154	WB18X31604		Harness Blower		Appelez-nous	-
1412	WB28X28159		Tube Oven Supply		Appelez-nous	-
1413	WB28X28150		Tube Burner Box Supply		Appelez-nous	-
1416	WB28X28161		Tube Simmer Dual Valve		Appelez-nous	-
1419	WB02X28653		Air Deviator		Appelez-nous	-
1420	WB02X28652		Air Deviator		Appelez-nous	-
1425	WB28X28155		Tube Main Dual Valve		Appelez-nous	-
