SELECT A DIAGRAM
Body Parts
Control Panel & Cooktop
Door & Drawer Parts
Gas & Burner Parts
New Model Search:

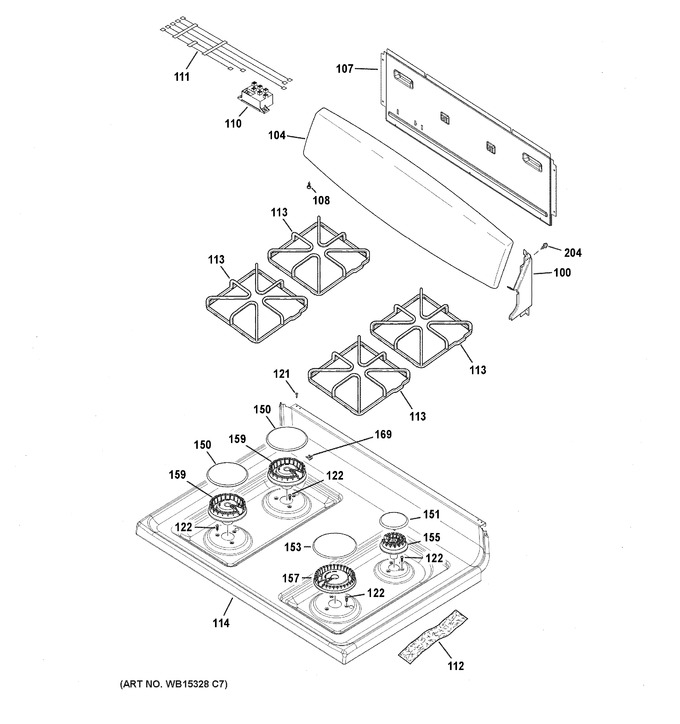

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 100 | WB07X20277 | End Support Right (white) |
|
- | |||||
| 100 | WB07X20278 | End Support Left (white) |
|
- | |||||
| 104 | WB36X21594 | White Backguard Range |
|
- | |||||
| 107 | WB34X20669 | Cover Back |
|
- | |||||
| 108 | WB1X5874 | Screw Wh |
|
- | |||||
| 110 | WB13X24323 | Ignition Module |
|
- | |||||
| 111 | WB18X26607 | Electrodes & Harness H.v. |
|
- | |||||
| 112 | WB35K10005 | Foil Cooktop |
|
- | |||||
| 113 | WB31K10033 | Grate (blk) |
|
- | |||||
| 114 | WB62X31580 | White Range Top |
|
- | |||||
| 121 | WB1K78 | Screw 12-14, 5/8s |
|
- | |||||
| 122 | WB01X24735 | Ckt Screw |
|
- | |||||
| 150 | WS01F02537 | Cap-burner Med (black) (Replaces: WB29K10001) |
|
Immediately | $ 12.86 | ||||
| 151 | WB16X29450 | Asm. Cap, Burner Small V2 |
|
- | |||||
| 153 | WG02F02915 | Cap-burner Large (black) (Replaces: WB29K10006) |
|
$ 25.73 | |||||
| 155 | WB16X24721 | Burner, Small V2 |
|
- | |||||
| 157 | WB16X24723 | Burner, Large V2 |
|
- | |||||
| 159 | WB16X24724 | Burner, Medium V2 |
|
- | |||||
| 169 | WB02X24976 | Clip, Igniter V2 |
|
- | |||||
| 204 | WS01A00654 | Screw (blk) (Replaces: WB1K42) |
|
$ 14.29 |
