01 - Cover Sheet
02 - Top And Cabinet Parts
03 - Door Parts
04 - Dispenser Parts
05 - Water System Parts
06 - Tub And Basket Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:

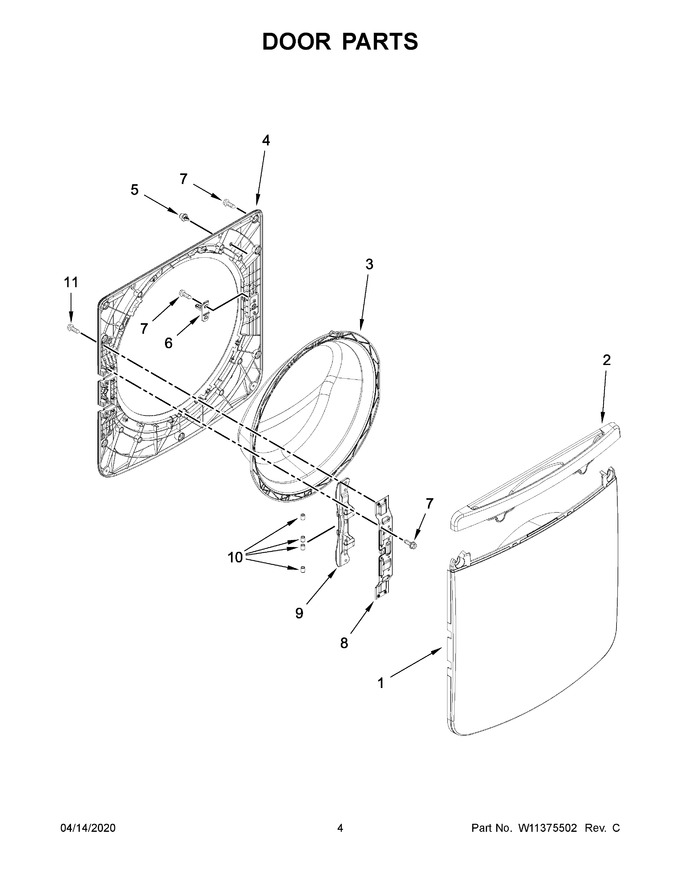

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11316913 | Assembly, Outer Door (gray) (Replaces: W11196016) |
|
Immediately | $ 355.38 | ||||
| 2 | W10626040 | Handle, Door (chrome Shadow) |
|
$ 208.77 | |||||
| 3 | W11316777 | Door, Clear Insert (Replaces: W11171604) |
|
$ 282.33 | |||||
| 4 | W11316776 | Door, Inner (Replaces: W11178958) |
|
Immediately | $ 165.55 | ||||
| 5 | W11310051 | Bumper, Door (Replaces: W11178950) |
|
Immediately | $ 22.31 | ||||
| 6 | W11316914 | Strike, Door (Replaces: W10921697) |
|
Immediately | $ 25.85 | ||||
| 7 | WP8534022 | Screw (Replaces: 8534022) |
|
$ 7.53 | |||||
| 8 | W10839743 | Plate, Hinge Retainer (Replaces: W10312805) |
|
$ 21.38 | |||||
| 9 | WPW10208415 | Hinge, Base (Replaces: W10208415) |
|
Immediately | $ 119.99 | ||||
| 10 | WPW10208398 | Cap, Hinge (Replaces: W10208398) |
|
Immediately | $ 19.32 | ||||
| 11 | W11661566 | Screw (Replaces: W10288126) |
|
$ 13.26 |
