SELECT A DIAGRAM

01 - Cover Sheet

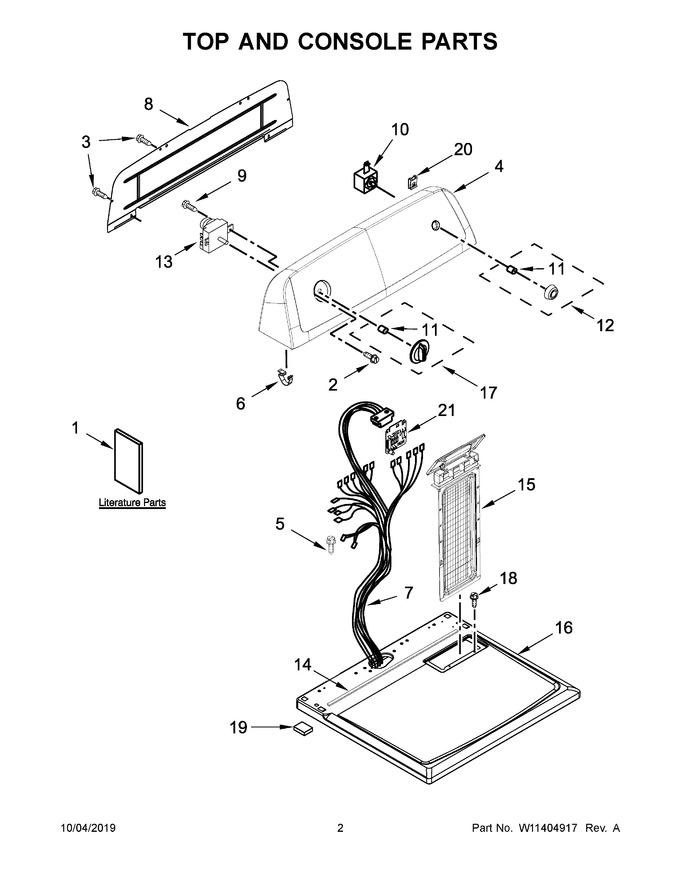

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11387407		Use And Care Guide		Appelez-nous	-
2	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.43
3	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
4	W11027112		Console (white)   (Replaces: W10804420)		Appelez-nous	-
5	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.62
6	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 15.66
7	W11352182		Main, Wire Harness		Appelez-nous	-
8	WPW10416486		Panel, Rear Console   (Replaces: W10416486)				$ 119.15
9	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 7.43
10	W11759046		Switch, Push To Start   (Replaces: W10804432)		Appelez-nous	-
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
12	WPW10453947		Assembly, Control Knob (white)   (Replaces: W10453947)				$ 49.28
13	W10857612		Timer   (Replaces: W10745655)			Immediately	$ 224.74
14	W10316616		Seal, Foam				$ 25.01
15	W11778253		Screen, Lint (white)   (Replaces: W10717210)			Immediately	$ 49.17
16	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 314.33
17	WPW10711289		Assembly, Timer Knob (white)   (Replaces: W10711289)			Immediately	$ 7.50
18	W11693756		Screw   (Replaces: 688983)			Immediately	$ 13.28
19	3389682		Spacer, Toe Panel				$ 8.31
20	W11213336		Nut, "u   (Replaces: W10298336)				$ 7.32
21	W11408456		Control Board, Dryer Timer   (Replaces: W11387733)		Appelez-nous	-
1A	W10916392		Wiring Diagram		Appelez-nous	-
1B	W11399547		Instructions, Installation		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
