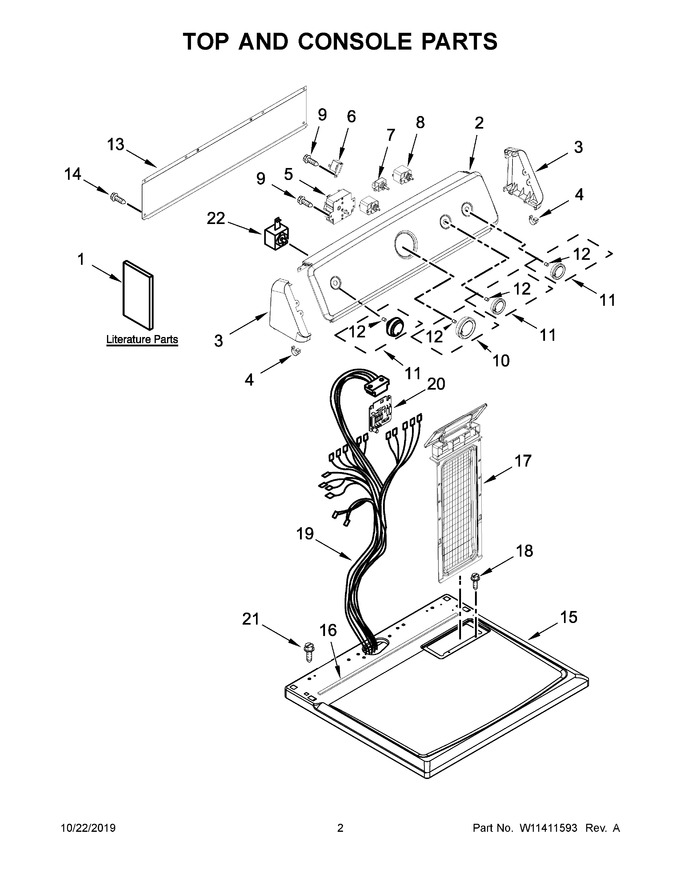

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11387407		Use And Care Guide		Appelez-nous	-
2	W11041458		Console (white)   (Replaces: W10804424)		Appelez-nous	-
3	W10193823		End Cap (right) (white)		Appelez-nous	-
4	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 15.66
5	WPW10185982		Assembly, Timer (60 Hz.)   (Replaces: W10185982)			Immediately	$ 170.80
6	3952439		Buzzer, Mini		Appelez-nous	-
7	W11235848		Switch, Rotary   (Replaces: W10168168)		Appelez-nous	-
8	W11041434		Switch, Push To Start   (Replaces: W10804591)				$ 105.57
9	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 7.43
10	W11837899		Assembly, Timer Knob (grey)   (Replaces: W10558463)			Immediately	$ 16.95
11	W11837893		Assembly, Control Knob (grey)   (Replaces: W10562155)				$ 16.95
12	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 7.38
13	W10103406		Panel, Rear (console)				$ 121.78
14	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
15	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 314.33
16	W10316616		Seal, Foam				$ 25.01
17	W11778253		Screen, Lint (white)   (Replaces: W10717210)			Immediately	$ 49.17
18	W11693756		Screw   (Replaces: 688983)			Immediately	$ 13.28
19	W11352186		Wire Harness, Main		Appelez-nous	-
20	W11408456		Control Board, Dryer Timer   (Replaces: W11387733)		Appelez-nous	-
21	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.62
22	W10168170		Switch, Temperature				$ 186.01
1A	W11399547		Instructions, Installation		Appelez-nous	-
1B	W11366266		Wiring Diagram		Appelez-nous	-
3A	W10193826		End Cap (left) (white)		Appelez-nous	-
