SELECT A DIAGRAM

01 - Cover Sheet

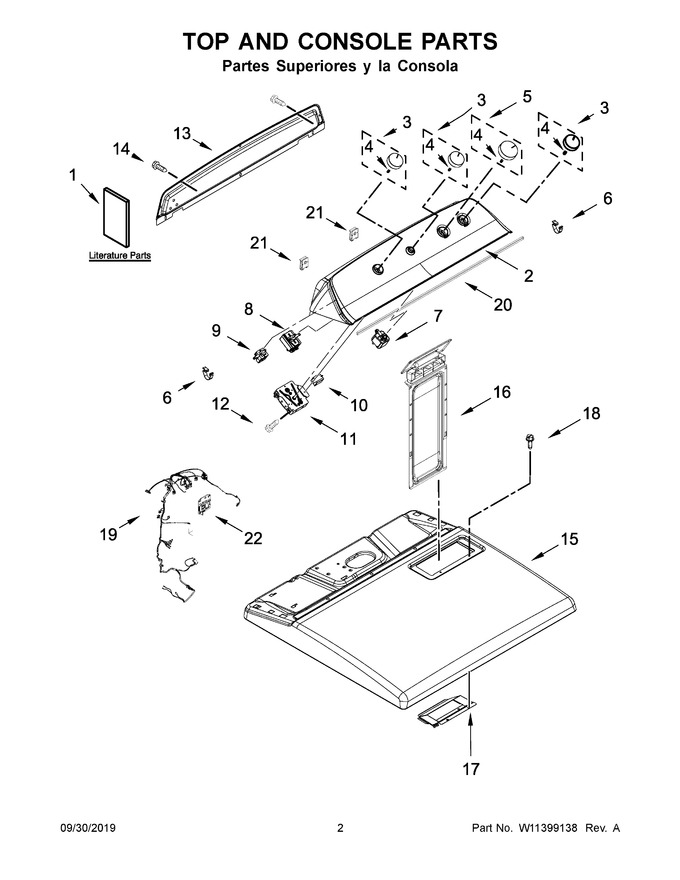

02 - Top And Console Parts


03 - Cabinet Parts


04 - Drum And Internal Parts


05 - Burner Assembly Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11298250		Instruction Installation		Appelez-nous	-
2	W11401707		Assembly, Console (white)   (Replaces: W11244262)		Appelez-nous	-
3	W11611672		Assembly, Knob (chrome)   (Replaces: W11367370)				$ 20.30
4	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 7.38
5	W11662342		Assembly, Timer Knob (chrome)   (Replaces: W11291948)				$ 33.31
6	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 15.66
7	WPW10446920		Switch, Push To Start   (Replaces: W10446920)			Immediately	$ 83.27
8	W10648614		Switch, Rotary (temperature)				$ 66.73
9	W10562713		Switch, Rotary (temperature)		Appelez-nous	-
10	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 120.65
11	WPW10185992		Timer Assembly (60 Hz.)   (Replaces: W10185992)			Immediately	$ 172.52
12	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 7.72
13	W10775189		Panel, Rear				$ 351.12
14	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
15	W11222514		Top (white)   (Replaces: W10613389)			Immediately	$ 244.23
16	W11778254		Lint Screen (white)   (Replaces: W10717211)			Immediately	$ 49.17
17	W10662472		Collar, Lint Chute				$ 70.08
18	W11693756		Screw   (Replaces: 688983)			Immediately	$ 13.28
19	W11248251		Harness, Wiring		Appelez-nous	-
20	W11757379		Seal Console   (Replaces: W10745410)		Appelez-nous	-
21	W11213336		Nut, "u   (Replaces: W10298336)				$ 7.32
22	WPW10476828		Control, Electronic   (Replaces: W10476828)			Immediately	$ 296.94
1A	W11297958		Use & Care Guide		Appelez-nous	-
1B	W10876321		Wiring Diagram		Appelez-nous	-
