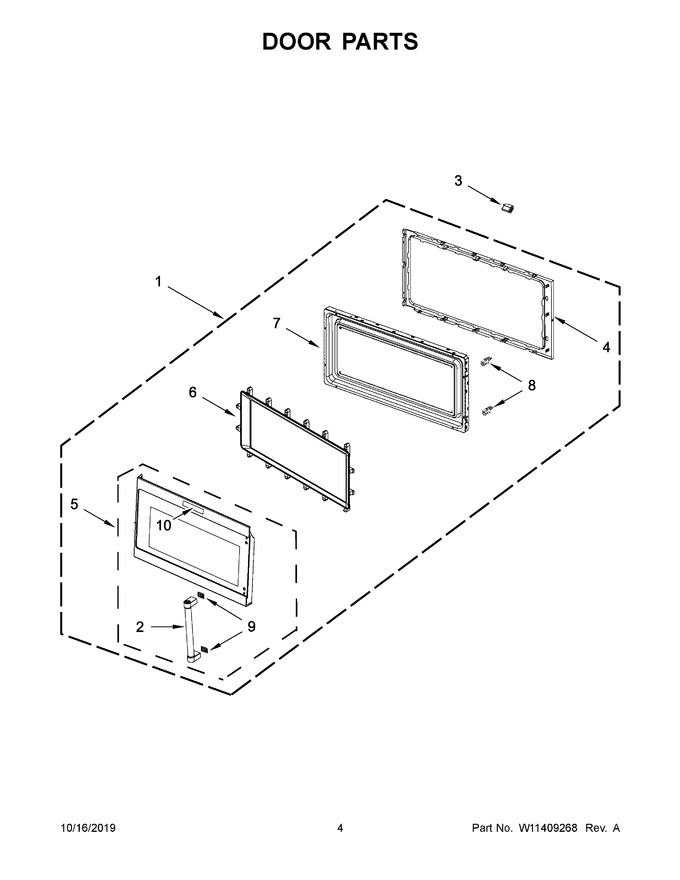

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10893433 | Door, Complete (white) |
|
$ 300.56 | |||||
| 2 | W11259917 | Handle, Door |
|
$ 155.40 | |||||
| 3 | W10643975 | Stopper, Door (for White Models) |
|
$ 20.44 | |||||
| 4 | W10647773 | Frame, Inner (for White Models) |
|
$ 80.46 | |||||
| 5 | W10727606 | Assembly, Door Frame (white) |
|
$ 326.11 | |||||
| 6 | W10562560 | Plate, Steam Protection (for White Models) |
|
- | |||||
| 7 | W10893418 | Foil, Door (for White Models) |
|
$ 241.35 | |||||
| 8 | W10740455 | Hook, Door |
|
Immediately | $ 50.58 | ||||
| 9 | W11590575 | Cushion, Handle (Replaces: W10540736) |
|
$ 21.23 | |||||
| 10 | W10909682 | Nameplate (Replaces: W10754513) |
|
Immediately | $ 68.58 | ||||
| 1A | W10893435 | Door, Complete (black) |
|
$ 300.56 | |||||
| 1B | W10893437 | Door, Complete (stainless) |
|
$ 320.12 | |||||
| 3A | W10643974 | Stopper, Door (black And Stainless Models) |
|
$ 20.39 | |||||
| 4A | W10647772 | Frame, Inner (black And Stainless Models) |
|
$ 90.28 | |||||
| 5A | W10727607 | Assembly, Door Frame (black) |
|
$ 333.70 | |||||
| 5B | W10727608 | Assembly, Door Frame (stainless) |
|
$ 338.14 | |||||
| 6A | W10514243 | Plate, Steam Protection (black And Stainless Models) |
|
$ 71.16 | |||||
| 7A | W10893422 | Foil, Door (black And Stainless Models) |
|
$ 239.65 |
