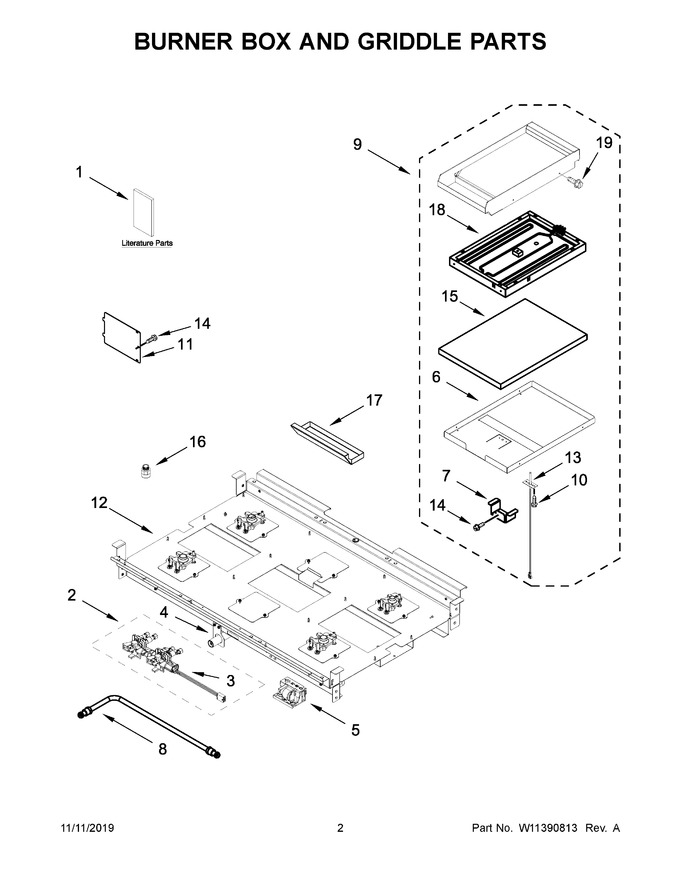

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11114330 | Guide, Use And Care |
|
- | |||||
| 2 | W11333175 | Assembly, Valve Manifold (left Front And Left Rear) (Replaces: W10893053) |
|
Immediately | $ 425.06 | ||||
| 3 | W11320016 | Switch, Harness (Replaces: W11106300) |
|
Immediately | $ 243.74 | ||||
| 4 | W11320153 | Bracket, Manifold (Replaces: W11121194) |
|
$ 71.97 | |||||
| 5 | W11818690 | Module, Spark (Replaces: W11121317) |
|
Immediately | $ 73.44 | ||||
| 6 | W11330430 | Tray, Griddle Insulation |
|
- | |||||
| 7 | W11319226 | Bracket, Griddle-rtd (Replaces: W11121384) |
|
- | |||||
| 8 | W11333177 | Tube, Manifold Supply (left) (Replaces: W10892370) |
|
- | |||||
| 9 | W11602621 | Assembly, Griddle Module (Replaces: W10891745) |
|
Immediately | $ 1,392.32 | ||||
| 10 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.80 | ||||
| 11 | W10115843 | Cover, Ignition |
|
- | |||||
| 12 | N/P | Box, Burner (not Serviced) |
|
- | |||||
| 13 | W11319618 | Sensor, Griddle (Replaces: W10891584) |
|
$ 205.63 | |||||
| 14 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 15 | W11319228 | Insulation, Griddle (Replaces: W11121383) |
|
- | |||||
| 16 | 4453116 | Adapter, Male |
|
$ 161.49 | |||||
| 17 | W10276497 | Tray, Griddle Drip |
|
$ 363.63 | |||||
| 18 | W11319602 | Element, Griddle (Replaces: W10891698) |
|
$ 332.53 | |||||
| 19 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 13.25 | ||||
| 1A | W11114333 | Instructions, Installation |
|
- | |||||
| 1B | W11184746 | Guide, Internet Connectivity |
|
- | |||||
| 1C | W11202365 | Diagram, Wiring |
|
- | |||||
| 1D | W11202265 | Sheet, Tech |
|
- | |||||
| 2A | W11333176 | Assembly, Valve Manifold (right Front And Right Rear) (Replaces: W10893062) |
|
Immediately | $ 405.19 | ||||
| 8A | W11333178 | Tube, Manifold Supply (right) (Replaces: W10892443) |
|
- | |||||
| NI | W11428599 | Kit, Lp Conversion (Replaces: W11238041) |
|
Immediately | $ 43.06 | ||||
| NI | W11317791 | Harness, Wifi (Replaces: W11242785) |
|
$ 102.35 | |||||
| NI | W11200325 | Harness, Communication |
|
$ 104.57 | |||||
| NI | W10780278 | Harness, Door Lock |
|
Immediately | $ 86.28 | ||||
| NI | W11200326 | Harness, Cooktop |
|
- | |||||
| NI | W11317787 | Harness, Griddle (Replaces: W10903727) |
|
$ 105.08 | |||||
| NI | W11200319 | Harness, Main (36") |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11243763 | Board, Transient Suppressor (Replaces: W10590933) |
|
$ 179.87 | |||||
| NI | WP9759877 | Retainer, Strain Relief (Replaces: 9759877) |
|
$ 18.19 | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 12.12 | |||||
| NI | W11544575 | Bracket, Anti-tip (Replaces: W10253333) |
|
$ 53.89 | |||||
| NI | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 27.65 | |||||
| NI | W11321066 | Cord, Power (Replaces: W11212216) |
|
$ 107.05 |
