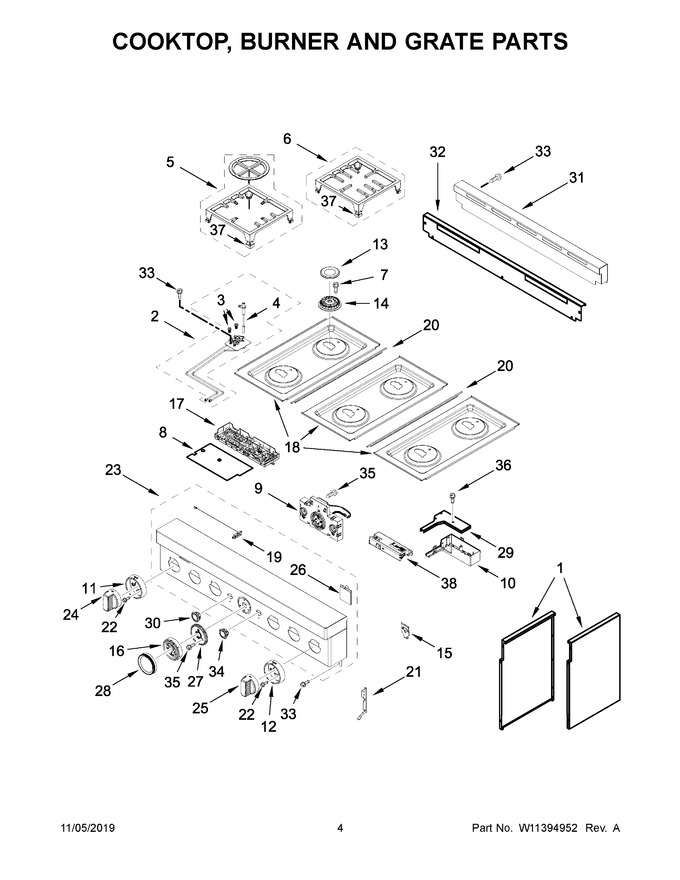

03 - Cooktop, Burner And Grate Parts


04 - Chassis Parts


05 - Oven Parts


06 - Venting Parts


07 - Oven Door Parts


08 - Internal Oven Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11333179		Panel, Cabinet Side (left)   (Replaces: W11106881)				$ 377.72
2	W11378584		Assembly, Orifice Holder (left Front)   (Replaces: W10892774)			Immediately	$ 111.57
3	W11643164		Orifice, Main (17.4k) (left Front, Right Front)   (Replaces: W10892422)			Immediately	$ 58.69
4	W11573760		Igniter (left Front, Right Front)   (Replaces: W11238757)			Immediately	$ 21.13
5	W11380124		Burner, Grate (with Wok Ring)   (Replaces: W11291183)			Immediately	$ 180.17
6	W11380128		Burner, Grate   (Replaces: W11291179)			Immediately	$ 180.94
7	W11643628		Screw (8-18 X 1")   (Replaces: W11323261)				$ 13.28
8	W11320149		Barrier, Appliance Manager   (Replaces: W11281269)				$ 117.51
9	W11394661		Interface, User   (Replaces: W11095716)			Immediately	$ 504.57
10	W11320411		Cover, Wifi Outer   (Replaces: W11205795)		Appelez-nous	-
11	W11380145		Bezel (rear Burners)   (Replaces: W10883433)				$ 58.56
12	W11380146		Bezel (front Burners)   (Replaces: W10881642)				$ 58.56
13	W11344538		Cap, Burner (black (includes 6))   (Replaces: W11121390)			Immediately	$ 154.29
14	W11344539		Spreader, Flame (high) (left Front, Right Front)   (Replaces: W10891746)			Immediately	$ 127.04
15	W11318207		Spring Clip, Range   (Replaces: W11036559)				$ 11.59
16	W11548479		Knob, Oven Mode (stainless)   (Replaces: W11264992)				$ 125.56
17	W11394663		Manager, Appliance (powermax)   (Replaces: W11100284)			Immediately	$ 502.12
18	W11344755		Panel, Cooktop (black (left))   (Replaces: W11038235)				$ 179.78
19	W11318855		Antenna, Wifi   (Replaces: W11130078)				$ 206.03
20	W10271524		Trim, T-strip (black)				$ 191.11
21	W10130760		Bracket, Moving Console (left)				$ 68.35
22	W11674763		Screw   (Replaces: W10919387)				$ 13.28
23	W11728201		Panel, Console   (Replaces: W10877950)			Immediately	$ 947.94
24	W11380561		Knob, Single (stainless)   (Replaces: W10912166)			Immediately	$ 73.08
25	W11380562		Knob, Dual (stainless)   (Replaces: W10883172)				$ 71.32
26	W10896366		Assembly, Light Pipe				$ 97.54
27	W11548484		Bezel, Oven (stainless)   (Replaces: W10913810)				$ 55.07
28	W11548477		Knob, Oven Temperature (stainless)   (Replaces: W11249669)				$ 134.90
29	W11320410		Cover, Wifi Inner   (Replaces: W11205794)		Appelez-nous	-
30	W11241511		Button Assembly, Oven Light			Immediately	$ 41.57
31	W11476245		Trim, Island   (Replaces: W11183086)				$ 364.19
32	W10323250		Insert, Island Trim				$ 163.61
33	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
34	W11241510		Button Assembly, Oven Start			Immediately	$ 43.88
35	WP3400814		Screw   (Replaces: 3400814)				$ 4.16
36	W10709795		Screw   (Replaces: 7101P624-60)				$ 12.41
37	W11550692		Bumper, Grate   (Replaces: W11042504)			Immediately	$ 11.31
38	W11234290		Assembly, Wifi Module   (Replaces: W11110768)				$ 161.90
14A	W11344742		Spreader, Flame (low) (left Rear, Center Front, Right Rear)   (Replaces: W10891974)			Immediately	$ 120.71
14B	W11344746		Spreader, Flame (aux) (center Rear)   (Replaces: W10891978)			Immediately	$ 119.88
18A	W11344757		Panel, Cooktop (black (center))   (Replaces: W11038257)				$ 179.78
18B	W11344761		Panel, Cooktop (black (right))   (Replaces: W11038248)				$ 179.78
1A	W11333303		Panel, Cabinet Side (right)   (Replaces: W11106880)				$ 379.27
21A	W10130759		Bracket, Moving Console (right)				$ 68.35
2A	W11384764		Assembly, Orifice Holder (left Rear)   (Replaces: W10892492)			Immediately	$ 107.92
2B	W11384766		Assembly, Orifice Holder (center Front)   (Replaces: W11159467)				$ 109.07
2C	W11384767		Assembly, Orifice Holder (center Rear)   (Replaces: W10892725)				$ 107.68
2D	W11334712		Assembly, Orifice Holder (right Front)   (Replaces: W10892731)			Immediately	$ 79.82
2E	W11384765		Assembly, Orifice Holder (right Rear)   (Replaces: W10892477)				$ 108.44
3A	W11672510		Orifice, Main (15k) (left Rear, Right Rear, Center Front)   (Replaces: W10892419)			Immediately	$ 97.08
3B	W11661909		Orifice, Simmer (2.6k) (left Front, Right Front)   (Replaces: W10892435)			Immediately	$ 67.52
3C	W10892438		Orifice, Simmer (5k) (center Rear)				$ 89.87
4A	W11628654		Igniter (center Front, Center Rear)   (Replaces: W10892340)			Immediately	$ 49.43
4B	W11114379		Igniter (left Rear, Right Rear)			Immediately	$ 59.80
7A	W11678580		Screw (8-18 X 1/2")   (Replaces: W11323309)				$ 13.30
