01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts
04 - Shelf Parts

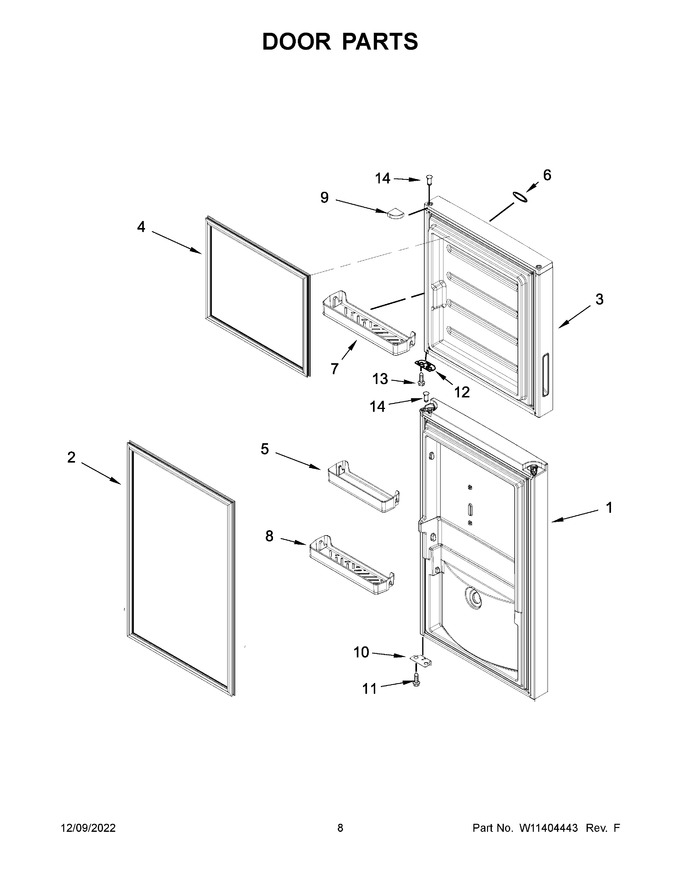

05 - Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11374238 | Door, Refrigerator (white) (Replaces: W11309091) |
|
$ 295.51 | |||||
| 2 | W11235133 | Gasket, Refrigerator Door (white) |
|
$ 271.63 | |||||
| 3 | W11374236 | Door, Freezer (white) (Replaces: W11309075) |
|
$ 200.58 | |||||
| 4 | W11736728 | Gasket, Freezer Door (white) (Replaces: W11235127) |
|
$ 187.06 | |||||
| 5 | W11783665 | Bin, Bottle (Replaces: W11291426) |
|
Immediately | $ 56.72 | ||||
| 6 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 56.82 | ||||
| 7 | W11247924 | Door Bin, Freezer |
|
- | |||||
| 8 | W11247889 | Door Bin, Refrigerator |
|
$ 138.00 | |||||
| 9 | W11246845 | Endcap Left Hand (white) |
|
$ 43.25 | |||||
| 10 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 11 | W11781924 | Plug, Hole (grey) (Replaces: W11255553) |
|
- | |||||
| 12 | WPW10397055 | Bracket, Door Stop (Replaces: W10397055) |
|
Immediately | $ 33.25 | ||||
| 13 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.34 | ||||
| 14 | W11759045 | Thimble, Top (white) (Replaces: W10492018) |
|
Immediately | $ 11.11 | ||||
| 14A | W11189115 | Thimble, Top (black) (Replaces: W10334042) |
|
$ 11.44 | |||||
| 14B | W11766463 | Thimble, Top (gray) (Replaces: W11289190) |
|
$ 11.11 | |||||
| 1A | W11374240 | Door, Refrigerator (black) (Replaces: W11314912) |
|
$ 295.49 | |||||
| 1B | W11374241 | Door, Refrigerator (stainless) (Replaces: W11315264) |
|
$ 371.93 | |||||
| 2A | W11235134 | Gasket, Refrigerator Door (black) |
|
$ 271.66 | |||||
| 2B | W11250318 | Gasket, Refrigerator Door (grey) |
|
$ 274.09 | |||||
| 3A | W11374242 | Door, Freezer (black) (Replaces: W11315307) |
|
$ 226.27 | |||||
| 3B | W11374244 | Door, Freezer (stainless) (Replaces: W11315308) |
|
$ 246.94 | |||||
| 4A | W11235130 | Gasket, Freezer Door (black) |
|
$ 270.61 | |||||
| 4B | W11250314 | Gasket, Freezer Door (grey) |
|
Immediately | $ 272.80 | ||||
| 9A | W11246847 | Endcap Left Hand (black) |
|
- | |||||
| 9B | W11246818 | Endcap Left Hand (grey) |
|
$ 43.24 | |||||
| 9C | W11246852 | Endcap Right Hand (white) |
|
$ 41.79 | |||||
| 9D | W11246854 | Endcap Right Hand (black) |
|
$ 41.80 | |||||
| 9E | W11246849 | Endcap Right Hand (grey) |
|
$ 43.24 |
