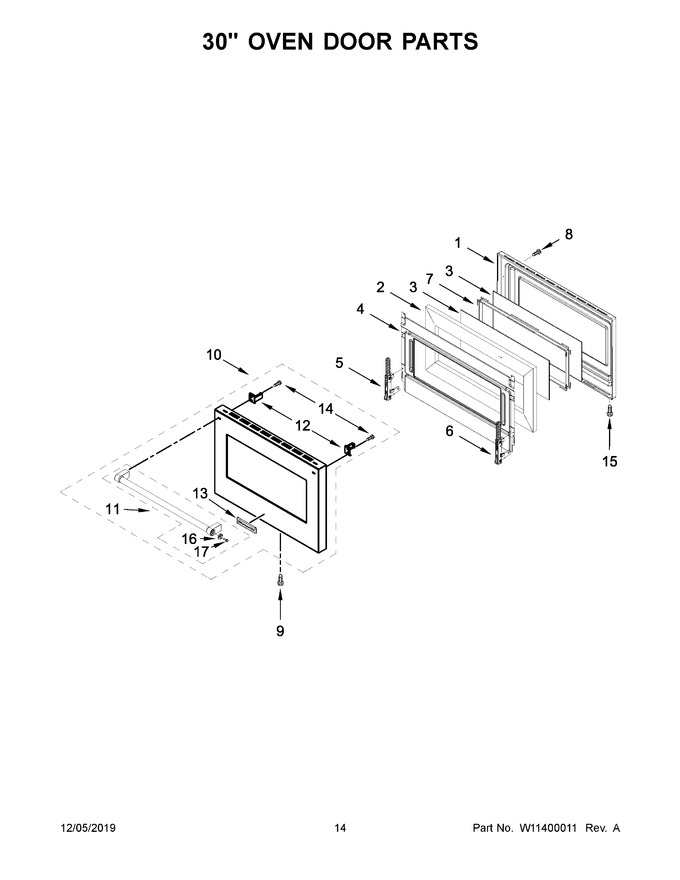

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11318831 | Liner, Door (Replaces: W11036771) |
|
Immediately | $ 387.01 | ||||
| 2 | WPW10321285 | Insulation, Door (Replaces: W10321285) |
|
$ 95.79 | |||||
| 3 | W11318823 | Glass, Inner (Replaces: W11184409) |
|
$ 158.15 | |||||
| 4 | W11318344 | Retainer, Glass (Replaces: W11194821) |
|
Immediately | $ 166.16 | ||||
| 5 | W11643630 | Hinge, Door (left) (Replaces: W11390105) |
|
Immediately | $ 176.00 | ||||
| 6 | W11643898 | Hinge, Dual (right) (Replaces: W11390124) |
|
Immediately | $ 128.21 | ||||
| 7 | WPW10272594 | Frame, Glass (Replaces: W10272594) |
|
Immediately | $ 177.65 | ||||
| 8 | W11712404 | Screw (Replaces: W10898280) |
|
Immediately | $ 13.29 | ||||
| 9 | W10162096 | Screw |
|
$ 19.71 | |||||
| 10 | W11403922 | Assembly, Outer Door (includes Handle) (Replaces: W11389296) |
|
$ 839.42 | |||||
| 11 | W11380863 | Assembly, Door Handle (Replaces: W11221412) |
|
- | |||||
| 12 | W11317513 | Bracket, Handle (Replaces: W11197830) |
|
$ 70.93 | |||||
| 13 | W10909682 | Badge (Replaces: W10518672) |
|
Immediately | $ 68.58 | ||||
| 14 | WPW10276043 | Screw (Replaces: W10276043) |
|
$ 6.57 | |||||
| 15 | W11193480 | Screw (Replaces: W10607120) |
|
$ 13.25 | |||||
| 16 | W11221410 | Medallion, Handle |
|
- | |||||
| 17 | W10920281 | Screw (Replaces: W10656499) |
|
Immediately | $ 8.06 |
